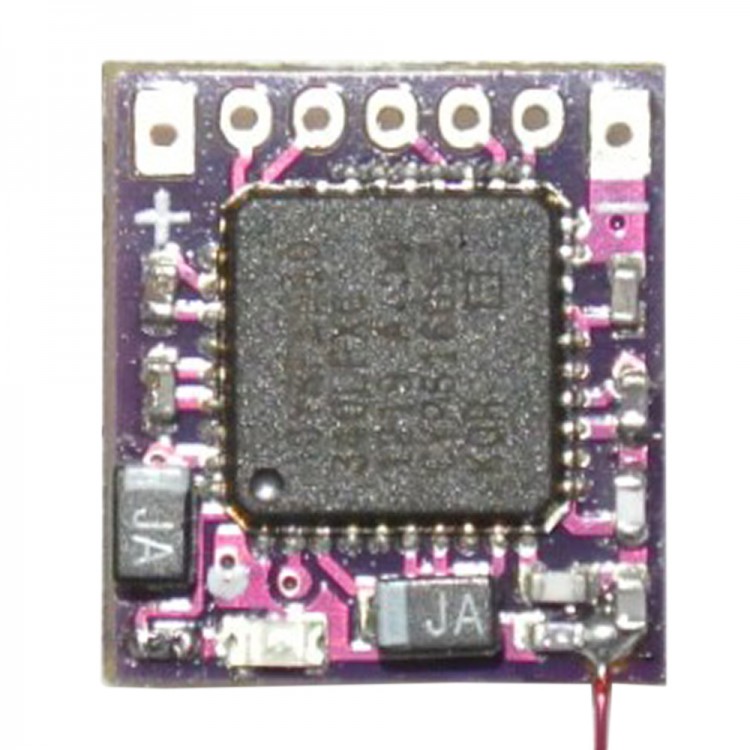

Mini 2.4G 5 Channels DSM2 Full Range Receiver Board Compatible w/RX52S AR500 for Helicopter Aircraft
Specification:
- Size:9.5*10.5*2.5mm
- Weight:0.28g
- Working voltage: 3.3~4.2V (1S lipoly recommended)
- Length of antenna:30mm
Functions:
- It is compatible both with MTSS-A and DSM2 agreements;
- It can set 6 channels PPM signal output;
Binding operation:
- Connect the receiver with 1S lipoly battery, waiting till the LED blinks slowly to instantly (the enters binding mode);
- Press the binding switch on the DSM2 transmitter and then turn on the power of it, or allow MTSS module enter binding mode;
- When the fast blinking LED on the receiver turns to solid and constant brightness, it indicates the binding is success, otherwise, you need to repeat the above steps;
Ports and Channels
1 THRO 2 AILE 3 ELEV 4 RUDD 5 GEAR

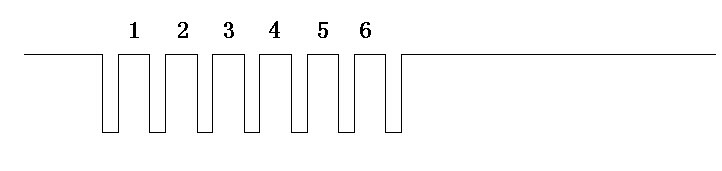

The distribution of channel of PPM signal output and channels
Please check the picture
1 THRO 2 AILE 3 ELEV 4 RUDD 5 GEAR 6 AUXI
Set up PPM signal output:
When “1” and “—“ is shortcut, PPM signal will be output from Channel 2.
Package included:
- 1 x Receiver board
