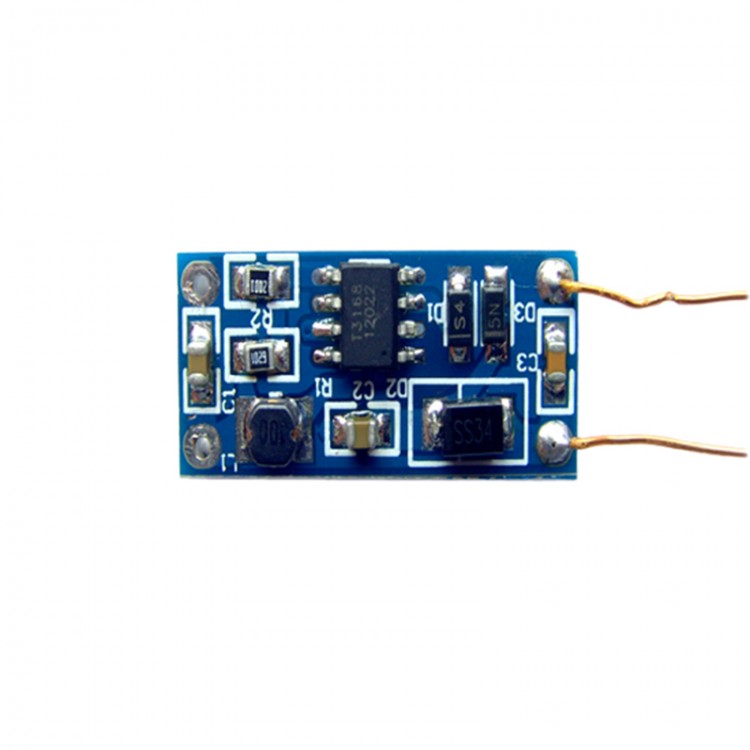

Mini 5V High-Power Wireless Power Charging Receiver Module
Description:
Weirless power transmitter module, using the non-radiative magnetic coupled resonance energy transfer methods, allowing the receiver across the air, such as paper or plastic housing can achieve energy transfer. As a non-contact charging power supply, make the product completely sealed, waterproof and dustproof, thereby increasing the life of the product, and easy to use.
This module only is a wireless power transmitter, the receiving end can choose wireless power receiver module as a receiver module as a receiver. The output voltage of receiving is 5V.
Notably, the shorter the distance from the induction coil sensors, the greater the transmission power, the greater the received power.
The main application areas:
- Wireless charging cell phones, MP3 and other digital products
- Powered aquarium lighting and water recycling systems
- Power products provide covert
- Expand the application of radio frequency card
- Human medical field
Feature:
- Simple operation, easy to use
- Very strong driving ability, the ideal wireless power supply
- Non-radiative wireless transmitter
Performance Parameter:
- Output voltaeg: DC 5V
- Maximum output current: 500mA
- Coil effective sensing distance: 1mm-10mm
- Hardware size:
Instruction coil dimensions are:diameter 0.5mm, outer diameter of 30mm, inner diameter of 10mm, thickness 0.7mm
Package included:
- 1 x High-Power Wireless Power Charging Receiver Module
