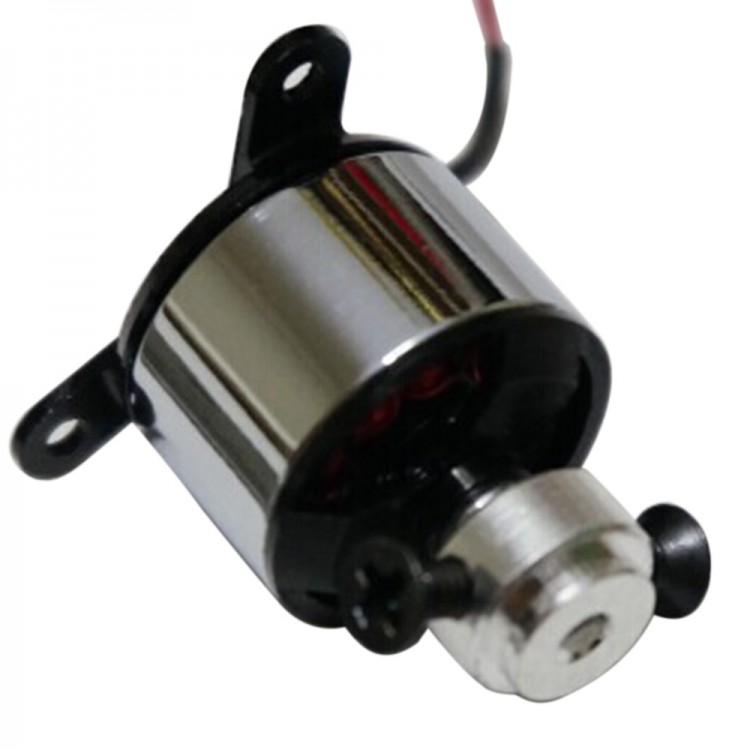

Mini AP05 3000KV Micro Brushless Motor for RC Models Multicopter Aircraft
Specification:
- Item: AP05 Motor
- KV: 3000rpm/v
- Lipo Range: 1S 3.7V
- Suggested prop: 5030
- Max current: 3A
- Burst current (10sec): 4.5A
- Battery: 1-3s
- Weight: 5.8g (including mount and wire)
- Shaft: 1.5mm
- Shaft length: 6.3mm
- Outurner Diameter:13mm
- Usage:For 30g 3D airplane and 90g normal flying.
Test data:
- 4025 prop
- Voltage: 3.5V
- Current: 0.7A
- Thrust: 32g
- 4025 prop
- Voltage: 7V
- Current: 2.2A
- Thrust: 87g
- 5030 prop
- Voltage: 3.5V
- Current: 1.2A
- Thrust: 45g
- 5030 prop
- Voltage: 7V
- Current: 2.8A
- Thrust: 110g
Features:
- High quality micro motors.
- Precision wound with silver-copper wire and ultra hard-press laminations.
- Extreme performance and efficiency for your micro plane.
Package Included:
1 x AP-05 Brushless Motor
