Mini DVR Recorder Mini FPV DVR Module (DIY Kit) Suitable for RC Models and Racing FPV Drones
Features of Mini DVR:
* DVR module with a built-in battery supports micro USB charging
* 3.7V 400mAh built-in lithium-ion polymer battery: its working time is about 1.5-2 hours when fully charged
* Compatible with all series of Little Pilot: After connecting the Little Pilot, press and hold the "-" button on the Little Pilot to enter the AV2 interface. The DVR interface will then appear. It supports memory cards with a maximum capacity of 32GB. And it is recommended to use a memory card with a read speed of C10
* Small size and light weight
* Low power consumption and 200mA working current
* Aluminum alloy shell (CNC processing)
* Supports 32GB TF card (10-level recommended)
* Universal USB charging interface
* High-precision 4-level battery power indicator
* 11 menu languages: English, French, German, Italian, Spanish, Portuguese, Traditional Chinese, Simplified Chinese, Japanese, Russian, and Korean
* CVBS signal input (built-in video decoder)
* Supports playback and AV signal output (built-in video encoder)
Tips for Video Recording:
* The screen receiving the image transmission, Betaflight OSD, camera and DVR video recording settings must all be NTSC, and cannot be selected as automatic, so that the lower half of the recorded image will not be cut off.
* Because our DVR better supports NTSC recording. When changing Betaflight to NTSC, pay attention to adjusting the elements of the OSD image.
Specifications of DVR:
* Performance Parameters:
* System startup time: 3 seconds
* Video input format: NTSC/PAL
* Video input impedance: 75Ω Typ.
* Video compression format: MJPEG
* Record file resolution: VGA (640*480)/D1 (720*480)/HD (1280*720) selectable
* Record file format: AVI
* Record sound: ON/OFF selectable
* Loop recording time: 10min/20min/30min selectable
* Frame rate: 30 frames
* Video output format: NTSC/PAL switchable
* Video output impedance: 75Ω Typ.
* Memory card: Supports TF card up to 32GB (C10 recommended)
* Menu language: 11 languages
* Optical frequency: 50Hz/60Hz selectable
* Video playback: CVBS output (connected to monitor)
* Audio input interface: 3.5mm AV jack
* Audio output interface: 3.5mm AV jack
* Charging interface: Micro USB port
* Charging voltage: 5V DC
* Charging current: 500mA MAX.
* Battery (non-removable): 3.7V/400 mAh built-in lithium-ion polymer battery
* Battery life: 1.5~2 hours of working time per full load
Environment:
* Operating temperature: -10 to 60℃
* Operating humidity: 85% RH
Main Body:
* Dimensions: 53mm x 33mm x 9mm
* Weight: 24.5g

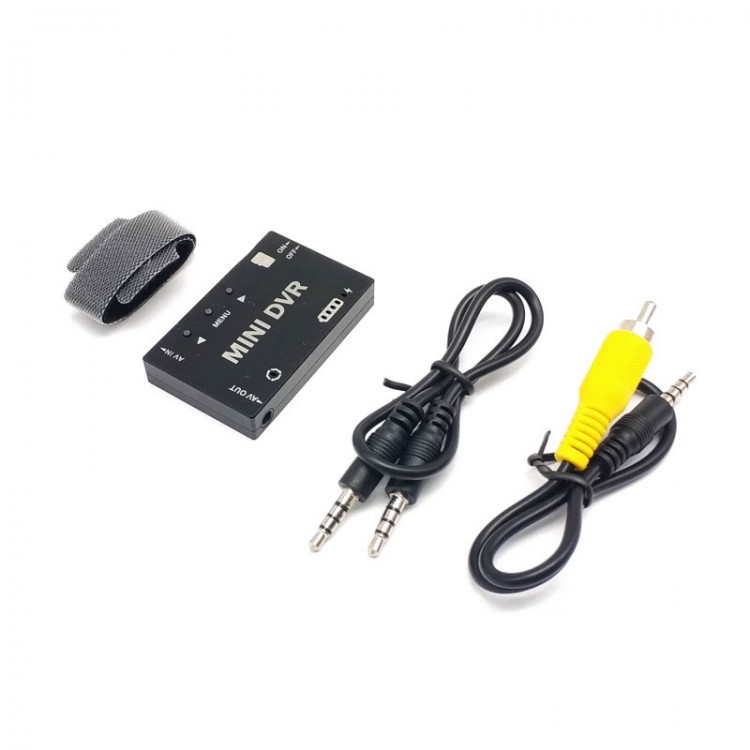

Package Included:
* 1 x Mini DVR
* 1 x Hook and loop fastener
* 1 x Cable to connect DVR to 3" goggles
* 1 x Connection cable with yellow and black plugs
Packaging Details:
* Weight: 0.3kg
Note:
* Because the factory wiring sequence may be different from manufacturer to manufacturer, the cable for goggles may not be universal.
* The goggles are optional.
