Mini GSM WiFi Alarm Wireless Home Security Alarm System Volume Recognition APP Control CS100-Wifi

Mini GSM WiFi Alarm Wireless Home Security Alarm System Volume Recognition APP Control CS100-Wifi

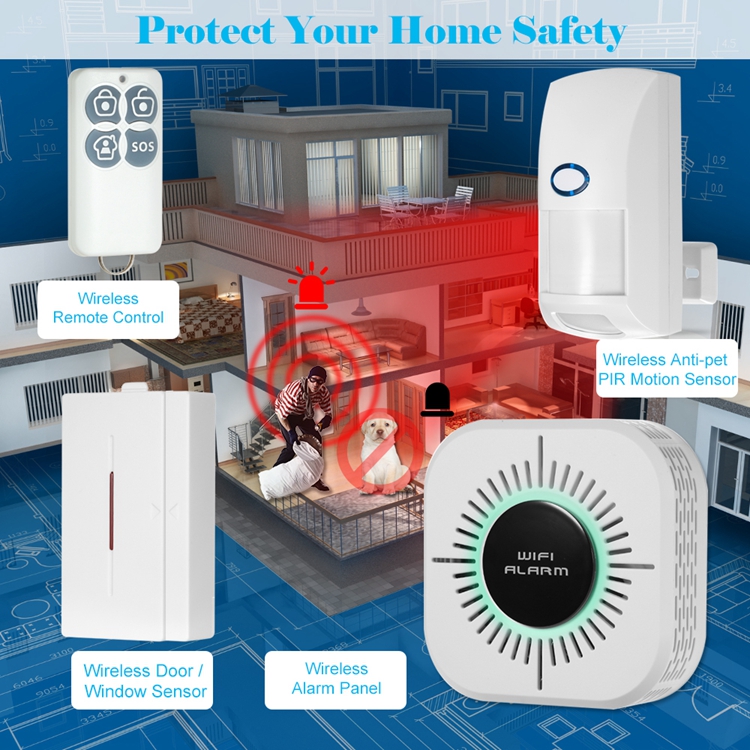

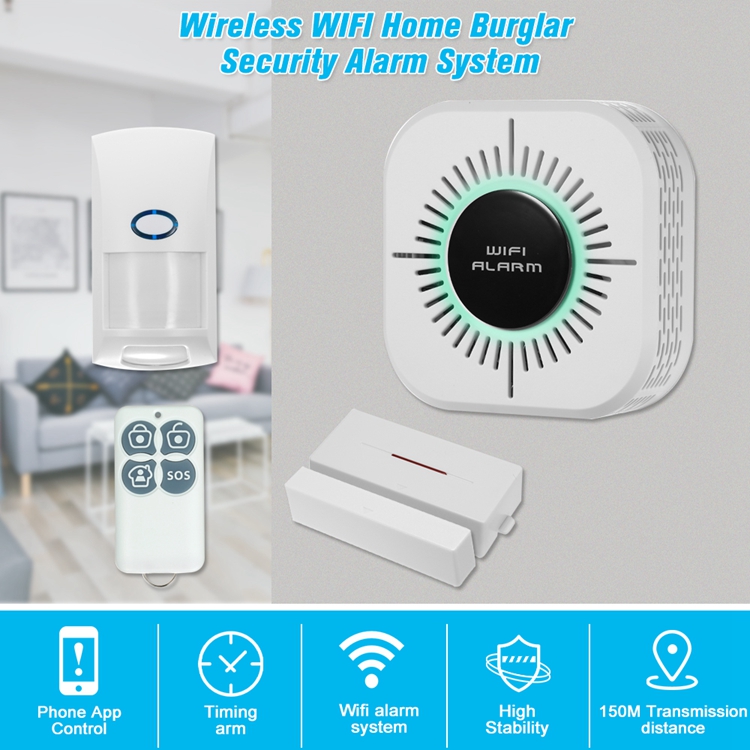

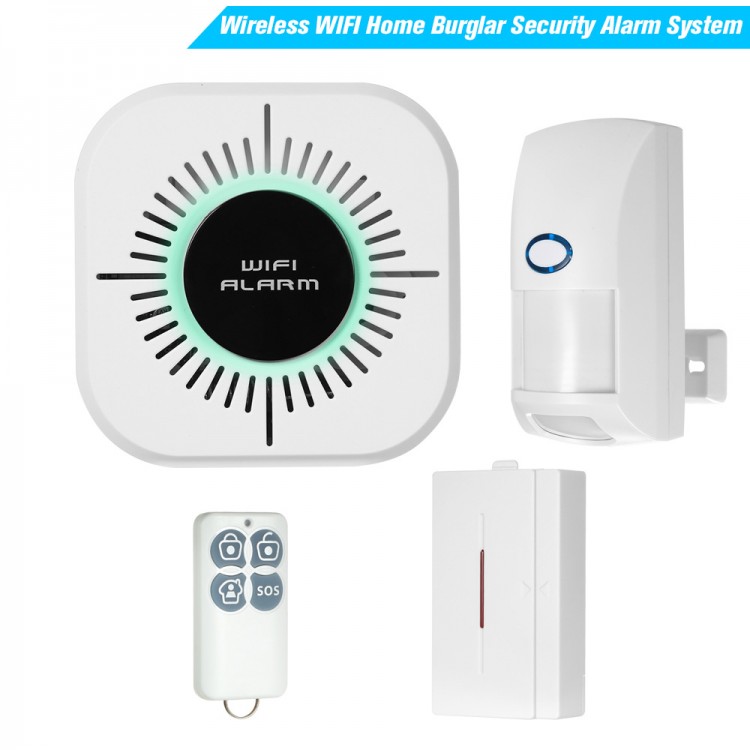

Package Included:
- 1 x Main Unit
- 1 x CT60 IR Detector Pet-Friendly Type
- 1 x Set of Wireless Door Magnetic Sensor
- 1 x Wireless 433 Remote Control
- 1 x User Manual
- 1 x USB Cable (without charging plug)
- 1 x Colorful Box

CS100-Wifi Main Unit
Description:

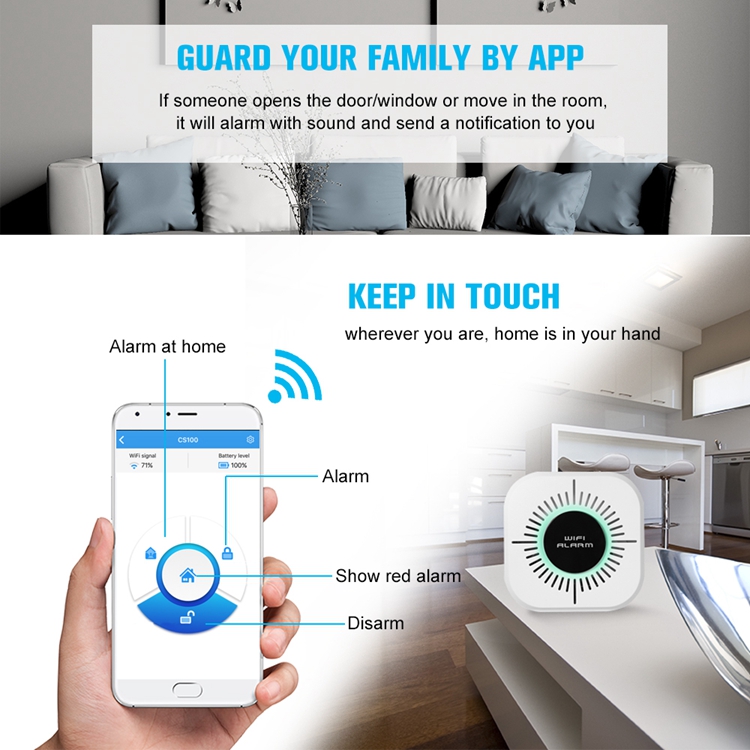

It combines advanced GSM digital signal with WiFi network technology and peripheral sensing detection technology. When the main unit is in arming status and the owner is absent, as long as there are intruders, the peripheral sensing detector will immediately send a wireless signal to it which will report the event log to your mobile phone APP. It keeps your property well protected.

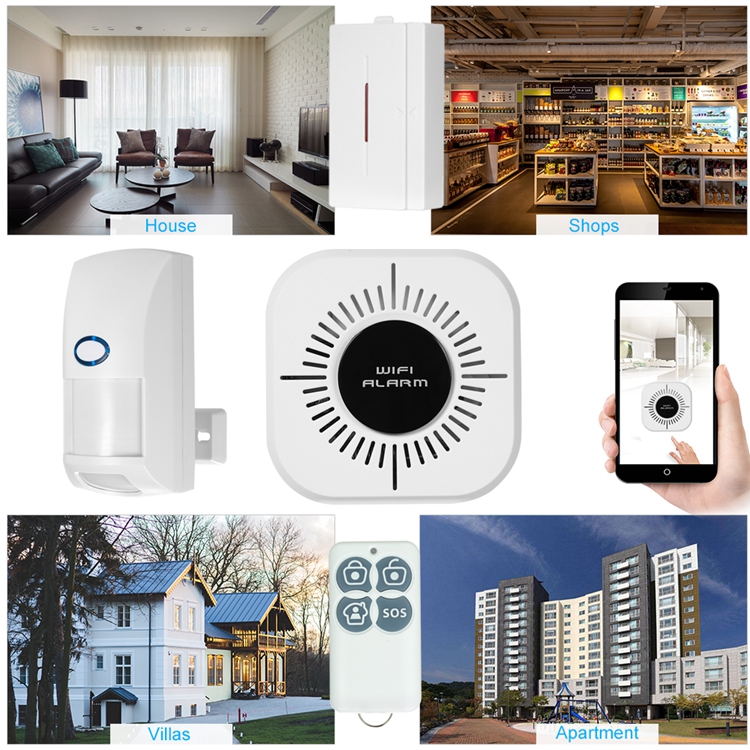

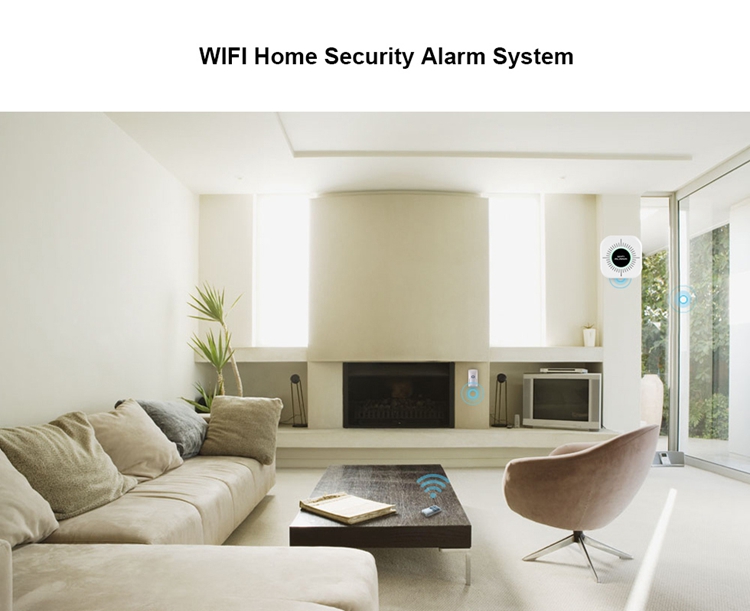

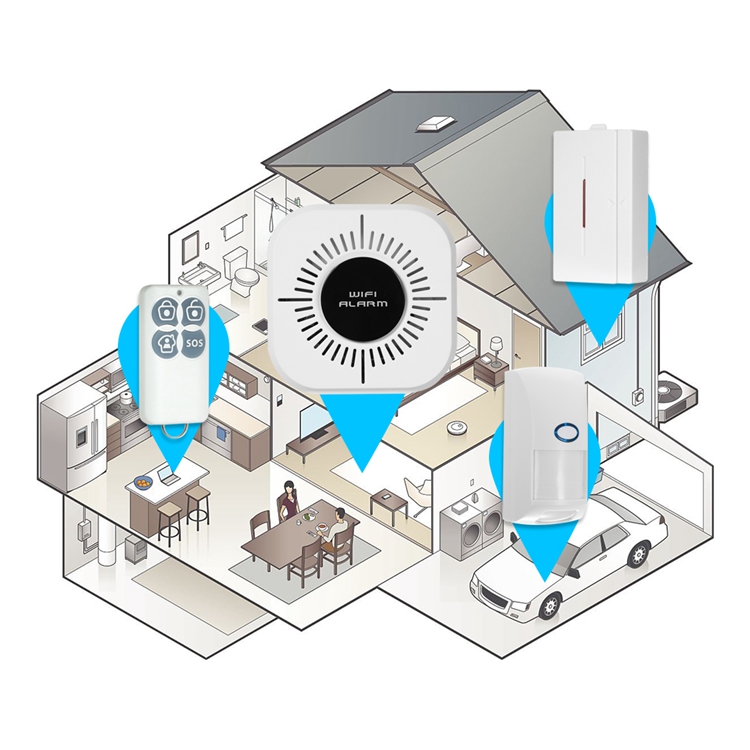

It can be widely used in homes, factories, schools, shops, convenience stores, finance rooms, villas, residential areas and other places.

Features:
- Easy to install and operate in your APP

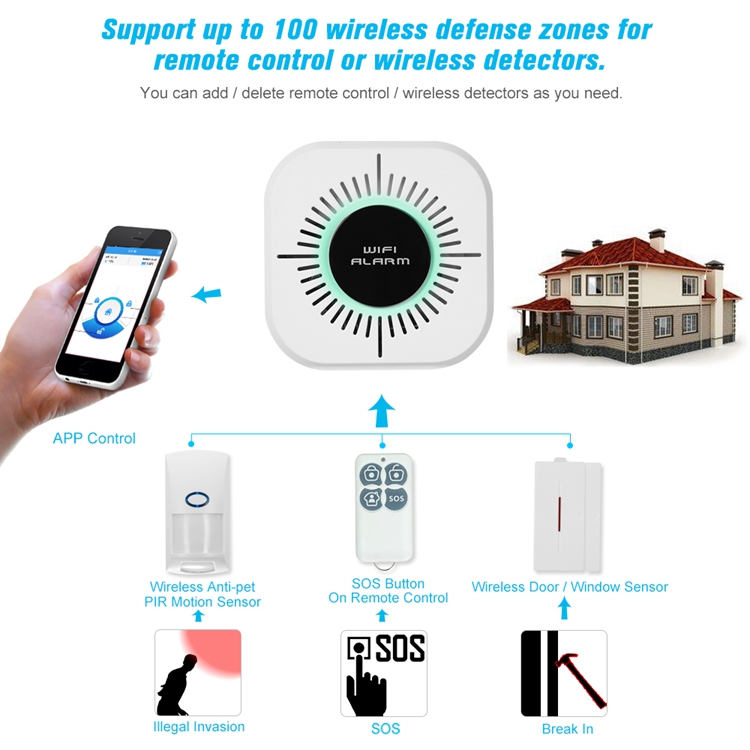

- Support wireless detector accessories up to 100pcs and controllers up to 25pcs
- One-button automatic matching, automatic identification of peripheral detector names
- Can control your wireless socket to be on and off

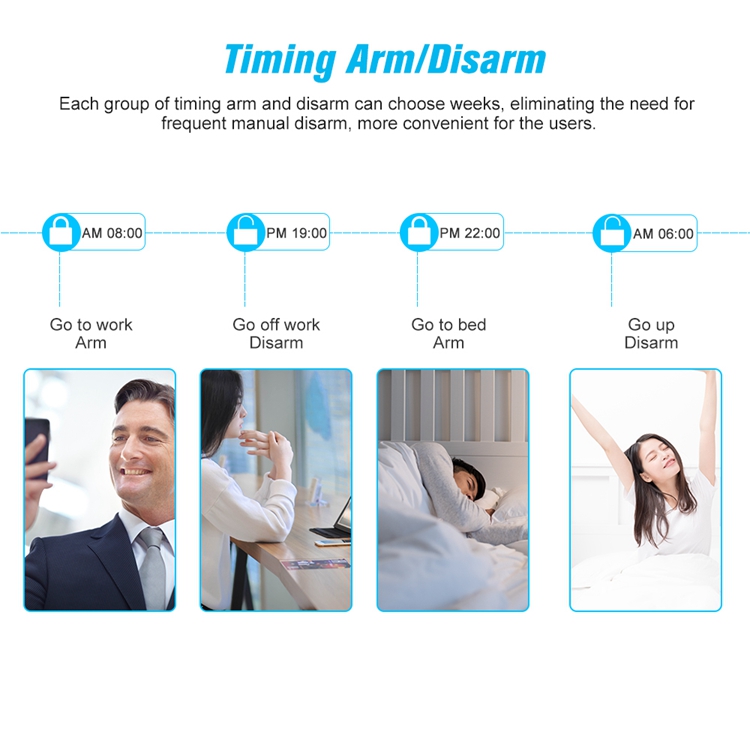

- Support arming and disarming at regular time
- Settable siren ringing time

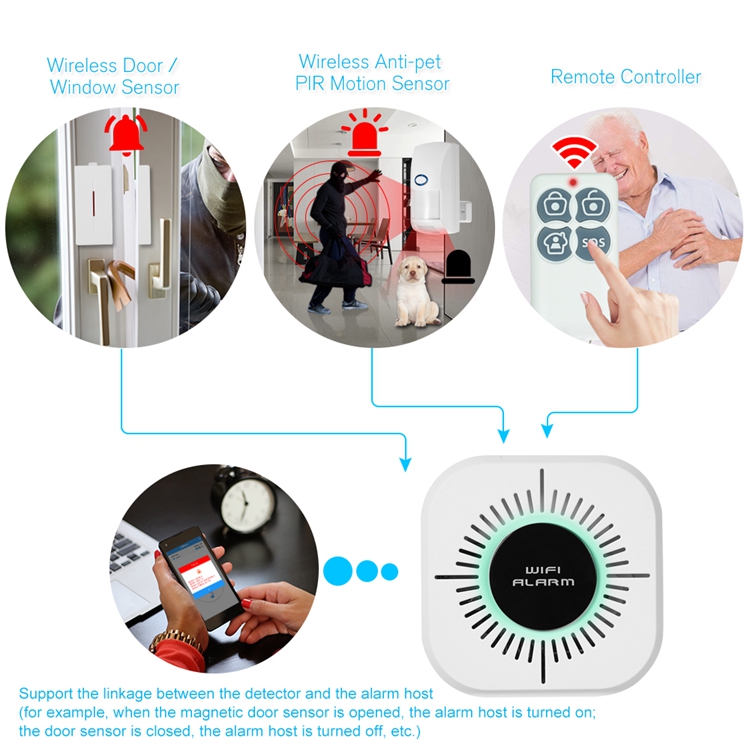

- Support the linkage between the detector and the controller (for example, when the magnetic door is opened, the controller is turned on; when the magnetic door is closed, and the controller is turned off)
- Support volume identification: your pet won't cause a false alarm
- Change the name of detected zones
- APP can display the battery power of the main unit
- APP can display the signal intensity between the device and your WiFi
- Support for operations in iPhone mobile phones

Specifications:
- Power Supply: DC 5V (Compatible with mobile phone charger)
- Quiescent Current: 60mA
- Alarm Current: 100mA
- Transmission Distance: 150m (Open Space)
- Support Receiving Frequency: 433.92MHz
- Transmission Frequency: 433MHz
- Temperature Range: -25 °C to 60 °C

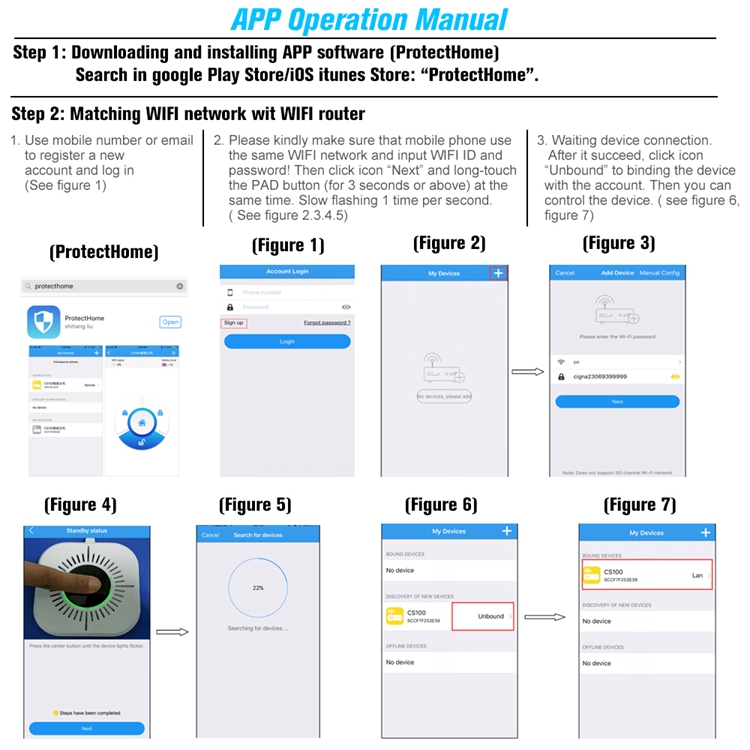

- APP Download: For Apple, Android, and Google store, pleas search ProtectHome to download the App.

CT60 IR Detector Pet-Friendly Type
Description:
It is mainly for indoors uses. Adopted IR detection and smart volume recognition technology, it can reduces false alarms caused by your pets. It is matched with the wireless 433MHz signal from the main unit. When intruders are detected, it will send wireless 433MHz signal to the main unit which will report alarms to you immediately.

It is quite easy to install without wires. You can use it in hall, windows, garages, stores, shopping malls, banks, companies, financial departments, schools.

Features:
- Dual infrared + intelligent volume recognition + reflector glass + artificial intelligence quadruple technology
- Intelligent identification technology, standby 9UA, and the lifespan of its battery is up to 2 years. So there is no need to replace the battery frequently.
- Double lens, double temperature compensation technology.

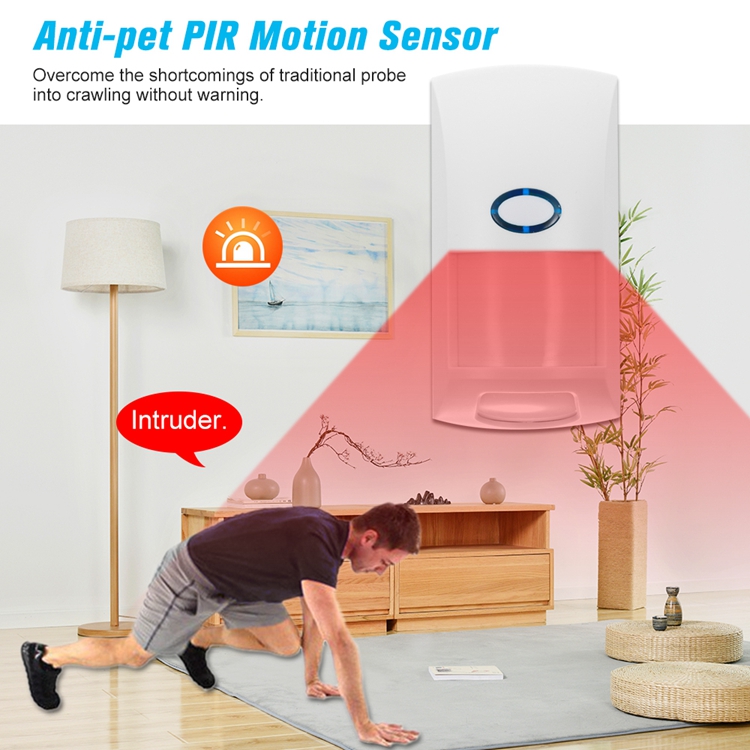

- Reflector glass type detection technology helps effectively overcome the shortcomings of traditional detectors that do not alarm when there is sneaking person.
- Fresnel optical lens effectively prevents false alarms and failed alarms.
- Detection distance: 12m@25°C.
- Detection angle: 110°.
- Anti-white light intensity 10000Lux.
- Friendly to your pet under 25KG. If you are pet owner, we recommend you to use pet friendly PIR motion sensor to immunity your pet. It is because pets can even trigger a false alarm.

Specifications:
- Working Distance: 200m (open space)
- Working Voltage: 3V (It can powered by 2 AA alkaline batteries; batteries are not included)
- Standby Current: less than 9μA
- Alarm Current: less than 10mA
- Wireless Frequency: 433.92MHZ (1527)
- Alarm Indicator: lit for 3 seconds
- Working Environment: indoors
- Anti-dismantle Switch: normally closed
- Transmission Method: wireless transmission
- Alarm Output: alarm report, anti-dismantle report
- Installation Method: hanging type (adjustable direction)

Wireless Door Magnetic Sensor
Description:
The wireless door magnetic detector detects whether the door, window, drawer, etc. are illegally opened. It is mainly used with the alarm host. When the host is in arming state and its owner stays outdoors, as long as the door or window is illegally opened, the sensor will send alarm signal to the host which will send out alarm report. Its effective working range between open space and the main unit is 200-300 meters.

Features:
- Ultra-low power gate magnetic special microprocessor of which the battery lasts for one and half a year
- Wireless transmission frequency 433.92MHz
- Built-in antenna design for beautiful and refined appearance
- Quiescent current ≤ 1μA

Specifications:
- Working Voltage: 12V (It can be powered by 23A battery. Battery is not included)
- Wireless Transmission Distance: ≥ 300 meters (open space)
- Transmission Frequency: 433.92MHZ
- Transmit Code Protocol: 1527 Protocol
- Quiescent Current: ≤ 1μA
- Transmission Current: ≤ 10mA

Wireless 433 Remote Control
Description:
It is mainly used to control the main unit. You can get main unit in arming state when you are going out. Press the main unit to unlock the state when you get home. You can make the main unit stays arming when you stay at home. Press SOS button to send alarm report to the main unit and your mobile phone when it is in emergency.

Features:
- Safe to use this waterproof, anti-pressure, anti-collision automatic control device
- Compact size makes it easy to carry
- It is designed with arming, disarming, fast bypass, and SOS buttons
- The lifespan of its battery is up to 3years. There is no need to replace it frequently

Specifications:
- Effective Range: 50-80m
- Working Frequency: 433.9MHz
- Working Voltage: 3V (CR2032)
- Quiescent Current: 0
- Transmit Code Protocol: 1527 Protocol
