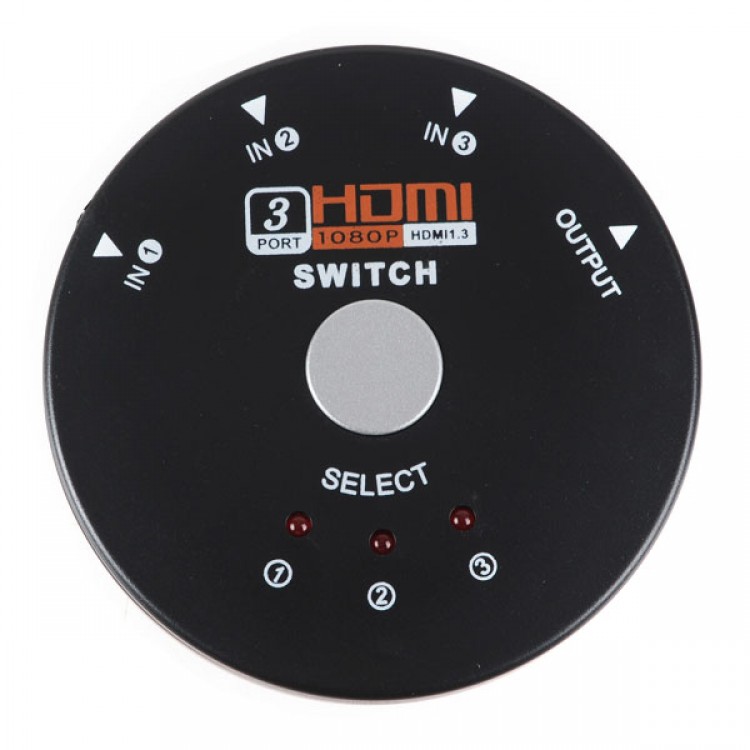

Mini HDMI Switch 3 to 1 HDMI 1.3 1080p 3D Supported 3 Port

Mini HDMI Switch 3 to 1 HDMI 1.3 1080p 3D Supported 3 Port
HDMI 1.3 Features
- Lip-Sync Pass Through.
- 250 MHz.
- Deep Color Supported (XV Color Supported).
- Color Space Conversion Supported.
- Dolby TrueHD & DTS Master Supported.

Features
- Three HDMI 1.3 input signals switched to a single HDMI 1.3 sink devices.
- HDCP 1.2 protocol compliant.
- Support deep color 12bit.
- Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC.
- Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD.
- Support signal retiming.
- Support input up to 15-metre AWG26 HDMI 1.3 standard cable length, output up to 25-metre AWG26 cable length.
- Inputs can be switched by button.
- It can smartly jump over those input sources which are not connected.
- With the smart function of memory, it can come back to the latest status when restarted or reconnected.
- No loss of quality.
- Install in minutes.
- Without  power supply.
- CONNECTING AND OPERATING THE MINI 3X1 SWITCHER

- Connect one cable from each HDMI source device into HDMI Switcher input.
- Connect one cable from display (monitor or projector) into the HDMI Switcher output.
- Power on the display and the sources.
- Use the button to switch between sources.

Specification
- HDMI Version......................................................HDMI 1.3-
- HDCP version......................................................HDCP1.2
- HDMI resolution..................................................24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
- Support video color format.................................24bit/deep color 30bit,36bit
- Support audio format..........................................DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
-  Max bandwidth...................................................250MHz
- Max baud rate.....................................................7.5Gbps
- Input/Output TMDS signal...................................0.5~1.5Volts p-p(TTL)
- Input/Output DDC signal ...................................5Volts p-p (TTL)
- Input cable distance............................................≤15m AWG26 HDMI 1.3 standard cable
- Output cable distance.........................................≤25m AWG26 HDMI 1.3 standard cable
- Max working current............................................350mA
- Power adapter format.......................................Input.AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
- Operating Temperature range.............................(-15 to +55°C)
- Operating Humidity range...................................5 to 90%RH (No Condensation)
- Dimension (L x W x H).........................................140x110x19(mm)
- Weight................................................................116g
