- Type: Mini PC
- Graphics Card Type: Integrated Card
- Hard Drive Capacity: Choose above
- Processor Main Frequency: 2.0GHz Max 3.0GHz
- Use: Multimedia, HTPC, Desktop,Business
- Memory Capacity: Choose above
- Processor Brand: Intel
- Processor Model: Intel
Core
i7-5550U 4M Cache, 2.0Ghz up to 3.00 GHz
- Operating System: Windows 7,8,10,Linux.
- Feature: Fanless System 0.00 dB
- Wireless: 300Mbps Wifi B/G/N
- Graphic Cards: Intel Graphics HD6000

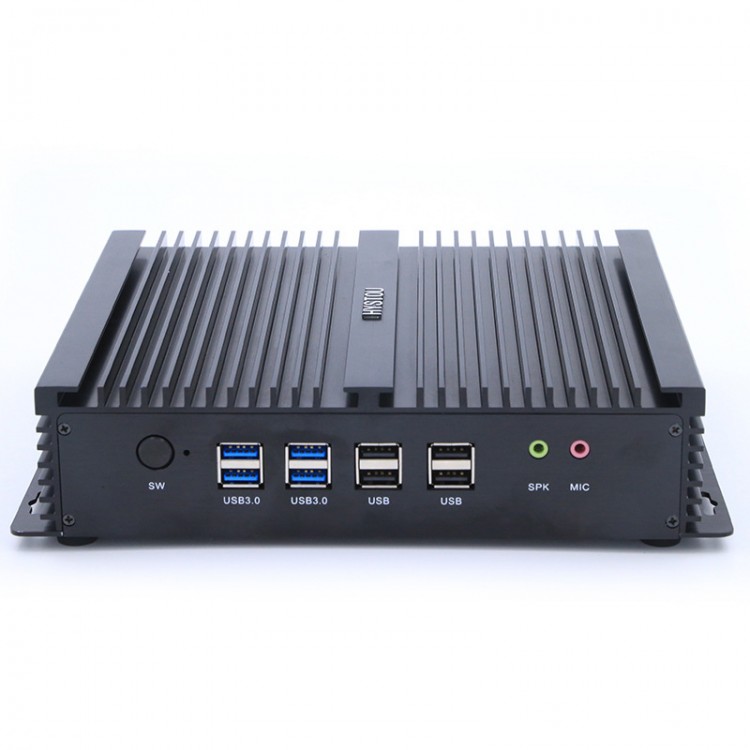

- Ports: 4* USB 3.0, 3* USB 2.0, 1*HDMI, 1*Lan, 2*COM, 1*VGA, 1*SPK, 1*MIC
- Product Size: 197*197*30mm
- Case Material: Brushed Aluminum Alloy Case
- Color: Black
Specifications:- Processor:Onboard Intel Core i5 4200U 1.6GHz Max 2.6GHz/Dual Core 4 thread
- Operating System:Windows 10/ Windows 7/ Windows 8/ Linux
- Storage:SSD: 8GB/16GB/32GB/64GB/128GB/256GB/512GB/HDD: 500GB/1TB
- Memory:2GB/4GB/8GB/16GB DDR3L
- Memory Type:DDR3L-1600, DD3L-1333, LPDDR3-1600, LPDDR3-1333
- Motherboard:Intel SHARKBAY(Intel Haswell-ULT)
- Processor details
- CPU:Intel Core i5 4200U
- Clock Speed:1.6GHz(100MHz x 16.0)
- Processor Number:2 core/ 4 threads
- Core code:Haswell
- Technique:22nm
- L1 data cache:2 * 32 KB, 8-Way, 64 byte lines
- L2 code cache:2 * 32 KB, 8-Way, 64 byte lines
- L3 cache:3 MB, 12-Way, 64 byte lines
- Characteristic:MMX, SSE, SSE2, SSE3, SSSE3, SSE4.1, SSE4, AVX2.0,SSE4.2, HTT…
- BIOS:AMI BIOS, ACPI supported, support call on function automatically,Wake-On-LAN
- Function:Hyper-Threading, Virtualization technology, 64 bit computing
- Graphic Cards:Intel Haswell- ULT Integrated Graphics Controller/Intel HD Graphics 4400(200~1000MHz)
- Audio Cards:ALC662 sound chip, 6-channel/Intel Panther Point HDA
- Network card:RTL8168E PCI-E Gigabit Ethernet NIC
- Ethernet:10/100/1000 BaseT LAN
- WIFI:With dual antenna, 802.11.b/g/n(150M or 300M)
I/0 Port
- Display port:1* VGA + 1 * HDMI
- USB and COM port:4* USB 3.0, 3 * USB2.0, 2*RS 232
- SATA port:1 * MSATA3.0, 6Gb/s; 1 * SATA3.0 , 6Gb/s
- MINI PCIE:1 * MSATA SSD, 1 * WiFi module
- Ethernet port:RJ45 10/100/1000 Mbps Adaptive
- Power input port:1 inner diameter 2.5mm,external diameter 5.5mm
- Audio port:Standard 3.5 Audio input and output/Power and Working Environment
- Input:DC100-240V AC/50-60Hz
- Output:DC 12V/3A
- Consumption:15W
- Noise:Fanless System
- Temperature:0-70 Centigrade
- Humidity:10%-90%
