Mini LCD 3G UMTS WCDMA 2100Mhz Mobile Phone Signal Booster Repeater Amplifier

Mini LCD 3G UMTS WCDMA 2100Mhz Mobile Phone Signal Booster Repeater Amplifier

Description:
- This item not suit for the USA network,Before you buy, make sure whether is  your need.
- The cell phone signal repeater supports 3G / UMTS / WCDMA 2100Mhz network.
- Equipped with 10 meters 5dB Outdoor Omi-directional Antenna, suit for areas where Wireless Operator's Mobile Network Signal is good.
- Equipped with 3dB Indoor Antenna, signal coverage could reach up to to 150M2 without obstacle.
- Signal Coverage Area:
  The booster could support 3 pieces of indoor antennas at the same time
  The whole set of booster could cover an area of 200m2, it is the best choice for small house.

Functions:
- High gain, easy installation and operation.
- Full-duplex, single-port design.
- Use ALC technology, adjust extent automatically
- LED Light Working & Signal Condition Indicators
- Big linear power, control intermodulation & scatteration stably
- Dependability stand by GB6993-86 standard
- Compatibility of electromagnetism according with ETS300 609-4

Specification:
- Frequency range: Uplink 1920~ 1990MHz Downlink 2110 ~ 2180MHz
- Booster Gain (dB): Uplink Gp≥50 Downlink Gp≥55
- Outdoor antenna Gain (dB): 5
- Indoor antenna Gain (dB): 3
- Export Power (Po): ≥10dBm
- Pass Band Ripple: ≤3dB
- I/O Impedance: 50Ω/N connector
- Noise Figure: ≤4dB
- Transmission Delay: ≤0.5μs
- Ambient Temperature: -10oC ~ 60oC
- Power Supply: AC110 ~ 220V 45 ~ 55Hz
- Item Diemension:130x100x20 mm
- Reliability: To the GB6993-86 standard
- Electromagnetic Compatibility: To the ETS300 694-4 standard

Function:
- Power supply LED denote
- Export power LED denote
　
Installation note:
1. Please make sure distance above 10M between indoor and outdoor antenna, it’s better divides one from another by a wall.
2. Please try to choose a good signal place to set up outdoor antenna.
3. Please sure that there are good signal 4-5 bars on your outdoor, or it will not work on your room.
4. Determining your Frequency before you buy, or you will buy a wrong item

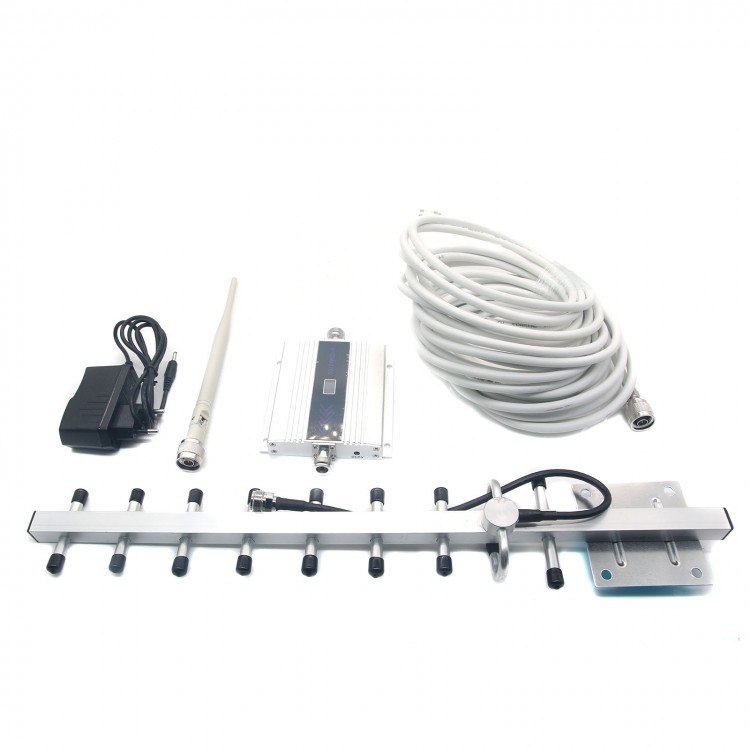

Package included:
- 1 x 3G/UMTS/WCDMA 2100Mhz cellphone repeater
- 1 x yagi antenna  with 10 meters cable
- 1 x Indoor antenna
- 1 x User manual
- 1 x Manual
- 1 x Charger
