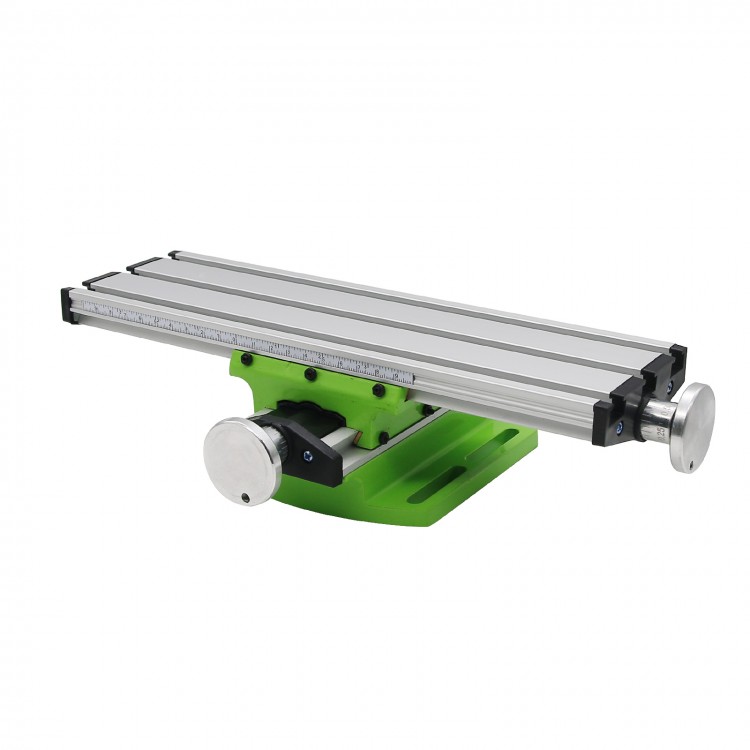

Mini Milling Machine Vise XY Milling Table Bench Vise Multifunctional Fixture Working Table 6300
Specifications:
- Table size: 310 * 90mm
- Table Height: 78mm
- X -axis travel: 190mm
- Y-axis travel: 50mm
- Groove Spacing: 34mm
- X Y-axis scale adjustment:
- 1 circle = 1.25mm
- A subdivision marks= 0.05mm
- The lead screws are M8X1.25
Features:
- The table is suitable for Mini Drill and drill bracket series.
- It can also apply to other suitable machine.
- The work table is composed of several adjustable dovetail slotaluminum alloy composition, can guarantee the minimumspace and ensure the accuracy.
- The working table with three T shaped groove, standard size is 15x8x6mm.
- Scale is in front of the movable positioning.
- Zero adjustment handwheel rotates a circle of 1.25mm. A lattice is equal to 0.05mm.
Working table size is 310x90mm and the height of 78mm, including two working clamp.
Package Included:
- One Set of Milling Machine Vise
Note: There Are No English Instructions Included In This Kit. Professional Installation Is Highly Recommended!
