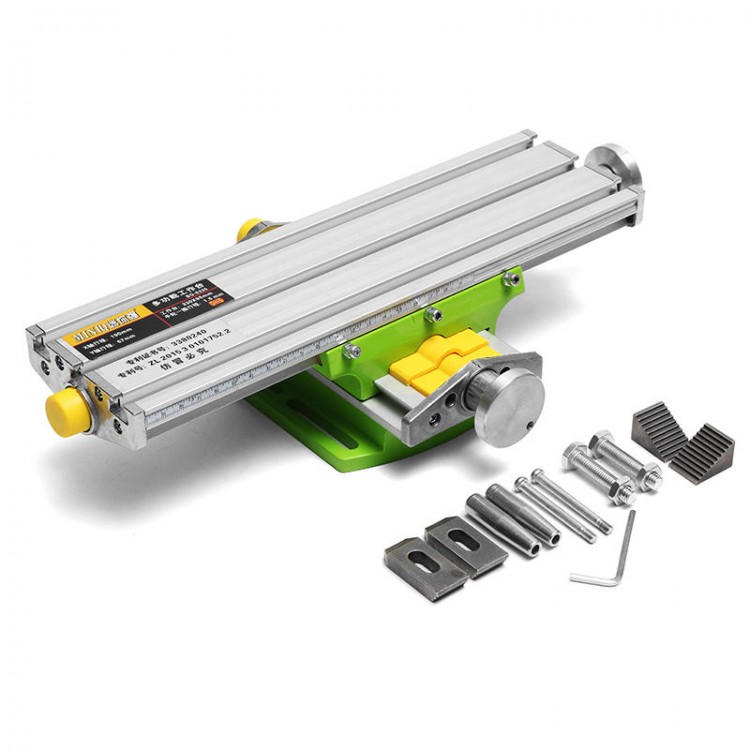

Mini Milling Machine Vise XY Milling Table Bench Vise Multifunctional Fixture Working Table 6330

Mini Milling Machine Vise XY Milling Table Bench Vise Multifunctional Fixture Working Table 6330

Description:
The 6330 is the upgrade one of the 6300, it uses more solid aluminum alloy material to make the end cap, it can make the plane rotates more flexible.

The base and the flexible table have the rigid structure being more strengthen than 6300, and the screw rod (M10x2) is stronger than before, so it can be used for higher standard of usage.

Specifications:
- Table size: 330*95mm
- Adjustable for X direction: 190mm
- Adjustment for Y direction: 65mm
- X Y-axis scale adjustment:
- 1 circle = 1.5mm
- A subdivision marks= 0.05mm
- The lead screws are M10x2
- Apply to: Mini drill and drill bracket series and other suitable machine

Features:
- The table is suitable for Mini Drill and drill bracket series.
- It can also apply to other suitable machine.
- The work table is composed of several adjustable dovetail slotaluminum alloy composition, can guarantee the minimumspace and ensure the accuracy.
- The working table with three T shaped groove, standard size is 15x8x6mm.
- Scale is in front of the movable positioning.
- Zero adjustment handwheel rotates a circle of 1.5mm. A lattice is equal to 0.05mm.
- The X axis Y axis distance is 190mm, the stroke is 65mm.
- Working table size is 330x95mm and the height of 80mm, including two working clamp.

Package Included:
- One Set of 6330 XY Milling Table

Note:
1. Please allow a bit error due to manual measurement. Please make sure you do not mind before you bid.
2. The color may have different as the difference display, pls understand.
