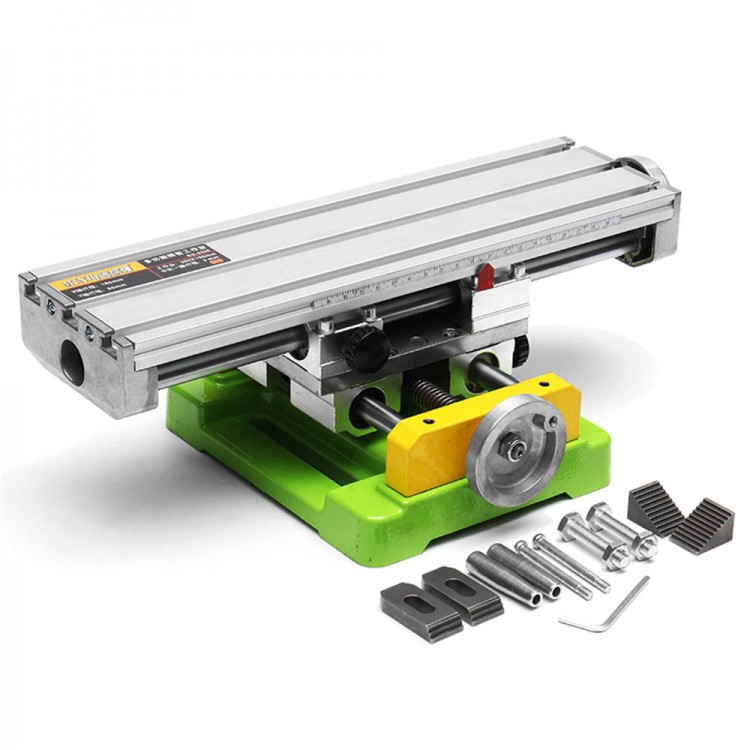

Mini Milling Machine Vise XY Milling Table Bench Vise Multifunctional Fixture Working Table 6350
Description:
- The 6350 is more stable one than the 6330 & 6300, it uses 2pcs 14mm (M14*3) lead screws, 4pcs 13mm Cylinder Liner Rails, and 8pcs SC13UU linear motion ball bearing slide bushings make this worktable guarantee the minimum space and ensure the accuracy better than the 6330&6300.
- It is the same size as the 6330 one that it uses more solid aluminum alloy material to make the end cap, it can make the plane rotates more flexible.
- The base and the flexible table have the rigid structure being more strengthened than 6300, and the screw rod (M10x2) is stronger than before, so it can be used for higher-standard of usage.
Specifications:
- Table size: 350*100mm
- Adjustable for X direction: 180mm
- Adjustment for Y direction: 50mm
- X Y-axis scale adjustment:
- 1 circle = 3mm
- A subdivision marks= 0.05mm
- The lead screws are M14x3
Features:
1. The table is suitable for Mini Drill and drill bracket series.
2. It can also apply to other suitable machine.
3. The work table is composed of several adjustable dovetail slot aluminum alloy composition, can guarantee the minimum space and ensure the accuracy.
4. The working table with three T shaped groove, standard size is 15x8x6mm.
5. Scale is in front of the movable positioning.
6. Adjustment handwheel rotates a circle of 3mm. A lattice is equal to 0.05mm.
7. The X axis Y axis distance is 180mm, the stroke is 50mm.
8. Working table size is 350x100mm and the height of 122mm, including two working clamp.
9. Mini multifunctional working table 6350. The table is suitable for mini drill and drill bracket series. It can also be applied to other suitable machines.
10. It can also apply to other suitable machine. The work table is composed of several adjustable dovetail slot aluminum alloy composition, can guarantee the minimum space and ensure the accuracy.
Package Included:
- One Set of X Y Milling Table (The bench drill is not included)
Note:
1. Please allow a bit error due to manual measurement. Please make sure you do not mind before you bid.
2. The color may have different as the difference display, pls understand.
