Mini Pixhawk Flight Control 32bit ARM Cortex M4 Pixhawk2.4.6 Hardware with TF 8G Card for Mulicopter FPV Photography
Comparing with the standard version, The revisions made on Pixhawk mini are as follows:
- SD card base adopts deadlock function. SD card will not be easily taken out unless press the SIM
- The front jacks all adopts imported the gilded needle, has better contact resistance, more stable and reliable
- NEC original tantalum capacitor is added in back compass and main power supply, making each sensor has stable power supplying and lesser possibility of aircraft crashing
- The same matte black gold plate as the original version, high quality
- PIXHAWK intergrated the newest 32 bit chip technology and sensor technology, get rid of the dilemma of having only 8 bit CPU of APM, and CPU occupancy being too high
- Size: from 81.5*50*15.5 to 60*38*14MM
- Weight: from 38g to 27g
- All interfaces are changed to 2.5.4 dupont interfaces both front and behind, convenient for cable connection
- The internal power supply mode is changede, adopting TI power supply plan, external input voltage can reach to 3-15V wide input
- The part of IMU is modue group , maximize to reduce the inteferences, more stable state
| Pix Mini Hardware Configuration |
| Processor |
| - 32bits ARM Cortex M4 core includes FPU（ floating point unit） |
| - 168 Mhz/256 KB RAM/2 MB flash memory |
| - 32bits error protection coprocessor |
| Sensor |
| - ST Mirco 12bit Gyroscope L3GD20 Upgrade to 16bit Gyroscope L3GD20H |
| - ST Micro 14bits accelerometer/ Magnetometer LMS303D |
| - MEAS barometer MS5611 |
| Power supply |
| - super high performance three channels low differential pressure diode tube paralleling input |
| - any channel supports 3S, directly input and gurantee the stable work of maincontrol |
| All external interface have complete overcurrent shortcircuit, ESD electrostatic protection |
| Interface |
| - 5 UART serial ports, one supports large power, two have hardware flow control |
| - Spektrum DSM/DSM2/DSM-X satellite input |
| - Futaba S.BUS input and output |
| - PPM sum signal |
| - RSSI（PWM or voltage）input |
| - I2C, SPI, two CAN, USB |
| - 3.3 and 6.6 ADC input |
| Size |
| - Weight：27g |
| - Length: 60MM |
| - Width: 38MM |
| - Height: 14MM |

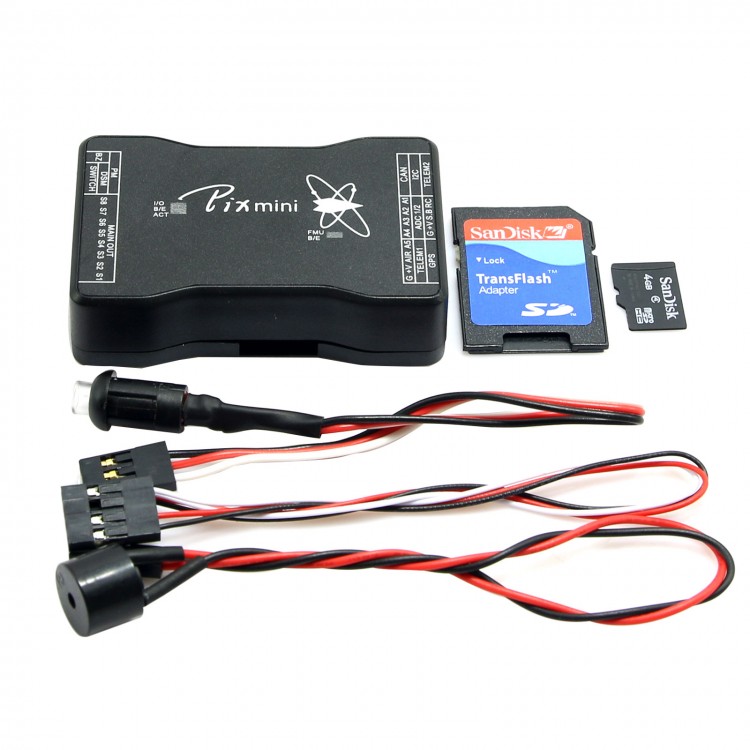

Package Include:
- Mini Pixhawk 2.4.6 Flight Controller x 1
- Original Shell X 1pcs
- Buzzer X 1pcs
- PWM Dupont Cable x 2
- TF 8G Card X 1
