Mini Pixracer V1.0 Autopilot Xracer FMU V4 Flight Controller with OSD/PPM/M8N GPS/915Mhz 500mw Telemetry/SD Card for FPV - Black

Mini Pixracer V1.0 Autopilot Xracer FMU V4 Flight Controller with OSD/PPM/M8N GPS/915Mhz 500mw Telemetry/SD Card for FPV - Black

Description:
The new Pixracer (formerly called XRacer) is available now and its fully supported by the Arducopter and PX4 community. Its a genuine open source project, already running with PX 4 stack software / QGroundControl (QGC), as well with Arducopter / Mission Planner (MP).

This is not just another small Pixhawk knock off or derivate, the Pixracer is the first autopilot of the new FMUv4 Pixhawk generation. Its coming with an upgraded Invensense Sensor generation (bye bye tricky LSM 303), a plug in Wifi board and last not least with a 2MB Flash : A real upgrade compared to former versions.

Specifications:
- PCB dimension: 36mm*36mm
- FRAM - FM25V02-G
- LDO Ultra low noise LDOs for sensors and FMU
- MPU9250 , ICM20608 , baro MS5611, mag HMC5983
- Connectors - GPS+I2C, RC-IN, PPM-IN, RSSI, SBus-IN, Spektrum-IN, USART3 ( TxD, RxD, CTS, RTS ),
  USART2 ( TxD, RxD, CTS, RTS ), FRSky-IN, - FRSky-OUT, CAN, USART8 ( TxD, RxD ), ESP8266 ( full set ),
  SERVO1-SERVO6, USART7 ( TxD, RxD ), JTAG ( SWDIO, SWCLK ), POWER-BRICK ( - VDD, Voltage, Current, GND ), BUZZER-LED_BUTTON
- MicroSD card reader
- RGB LED
- Micro USB
- WiFi ESP8266 802.11bgn ( Included !) .
- JST GH series connectors for easy and robust peripheral connections, DF13 haters will love those !
- Dimensions - 36 x 36mm with 30.5 x 30.5mm hole grid with 3.2mm holes
- Weight Pixracer - ( include SD and CNC protective case ) 26g
- 5 kinds of professional flexible silicone cables for almost any peripheral module included.
- Power supply - 5-5.5VDC from USB or Power Brick connector.
- Color: Black

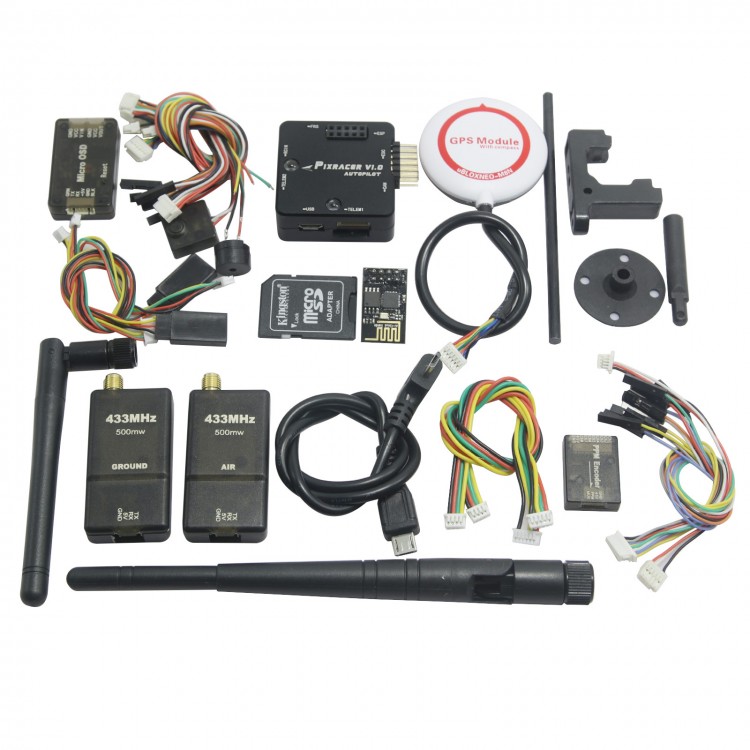

Package included :
- 1 x Pixracer V1.0 Flight Controller
- 1 x CNC Case
- 1 x Safety switch + buzzer
- 1 x Power Module Cable
- 1 x Serial Cable
- 1 x I2C Cable
- 1 x Receiver Cable
- 1 x WiFi ESP8266 Module

- 1 x Micro SD Card + Reader
- 1 x Mini OSD
- 1 x PPM Module
- 1 x M8N GPS
- 1 x 915Mhz 500mw 3DR Telemetry
