Mini Programmable Power Supply Adjustable Digital Linear DC Power Supply w/ Monitor 2.8" TFT MDP-XP

Mini Programmable Power Supply Adjustable Digital Linear DC Power Supply w/ Monitor 2.8" TFT MDP-XP

Description:

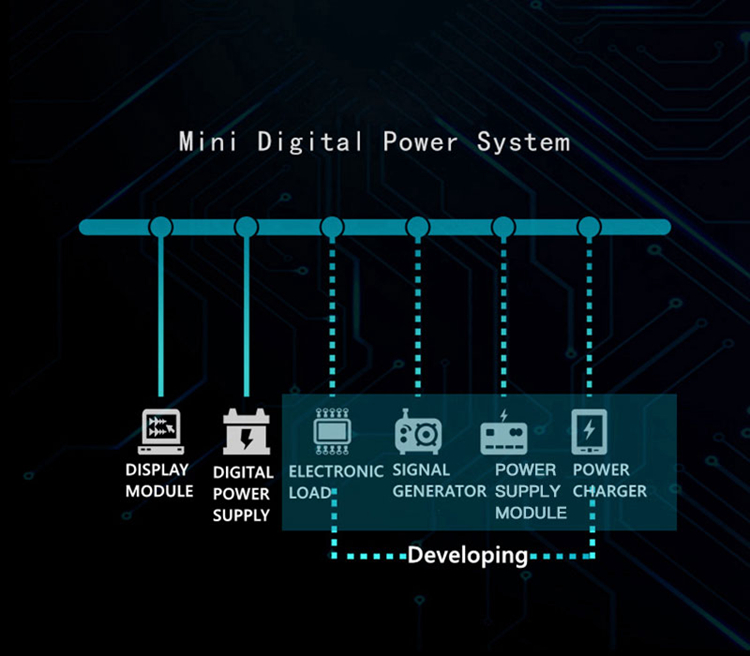

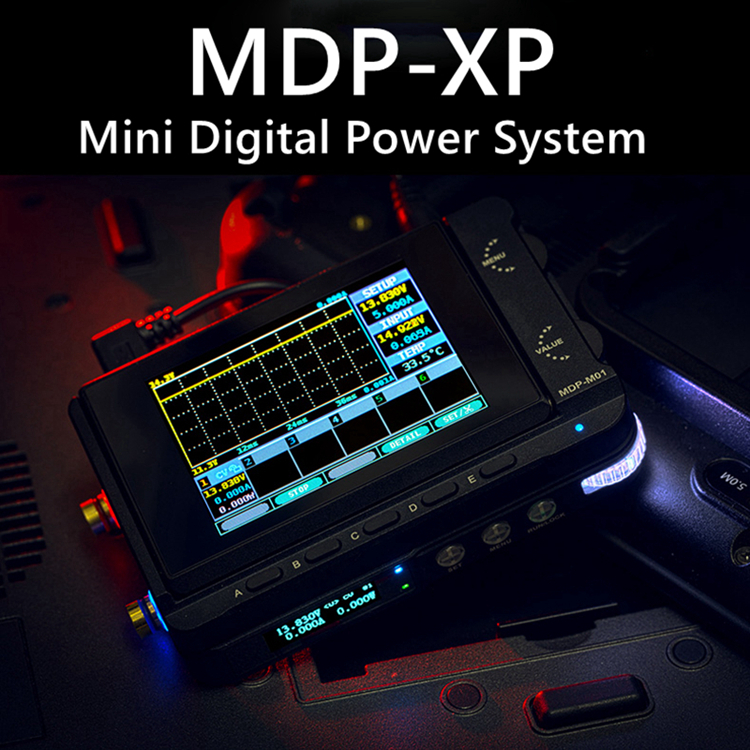

MDP-XP Kit consists of a display control module MDP-M01 and a digital power module MDP-P905.

Through 2.4G wireless connection, a 90W multi-channel free combination can be realized. It is a cost-effective programmable linear DC power supply. It has professional power indicators, stability and reliability, and a clear user interface. It provides powerful functions such as program-controlled output, timing output, timing control, and automatic compensation to meet diverse testing needs.

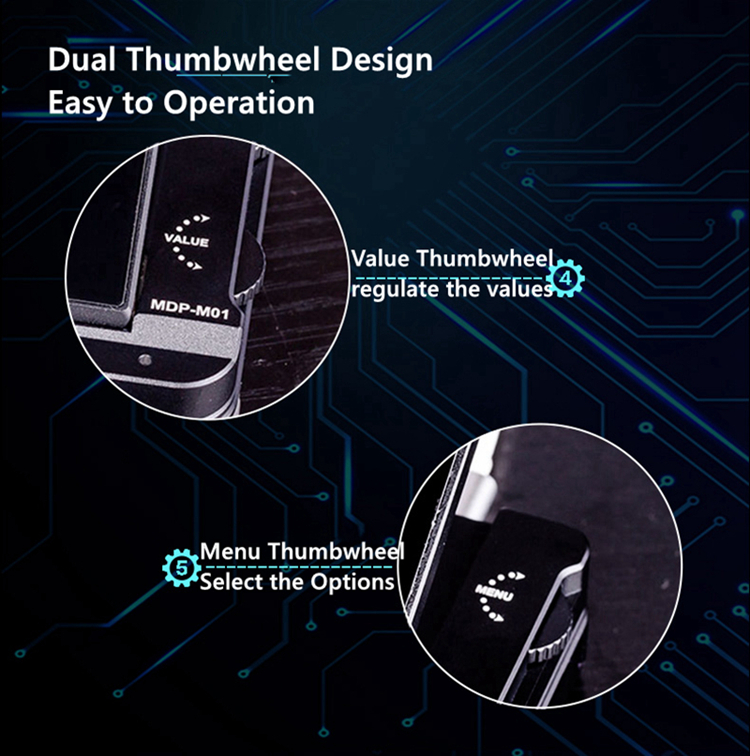

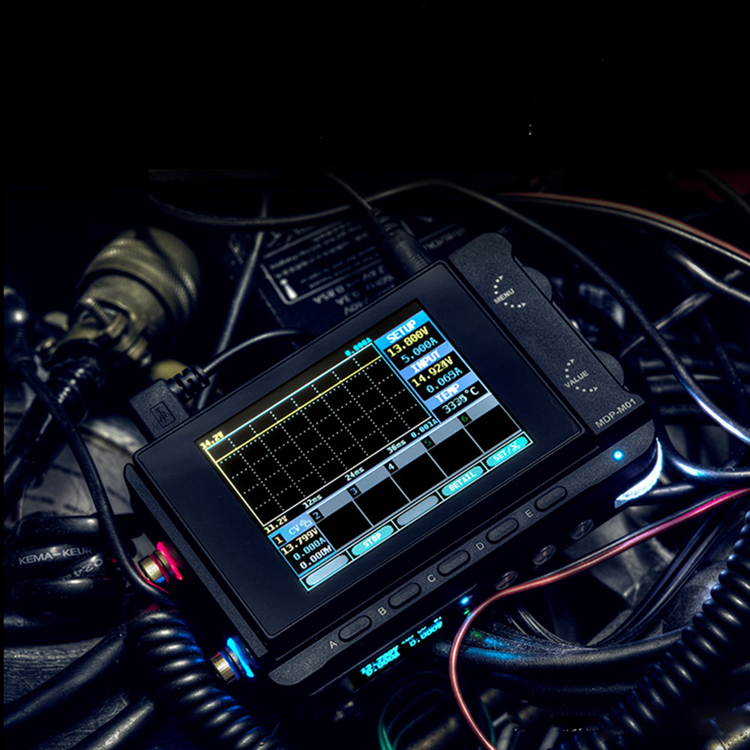

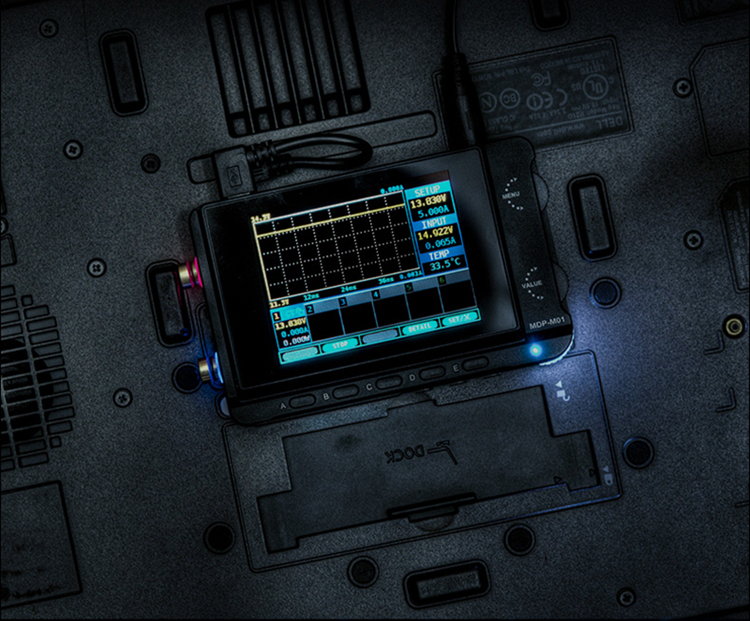

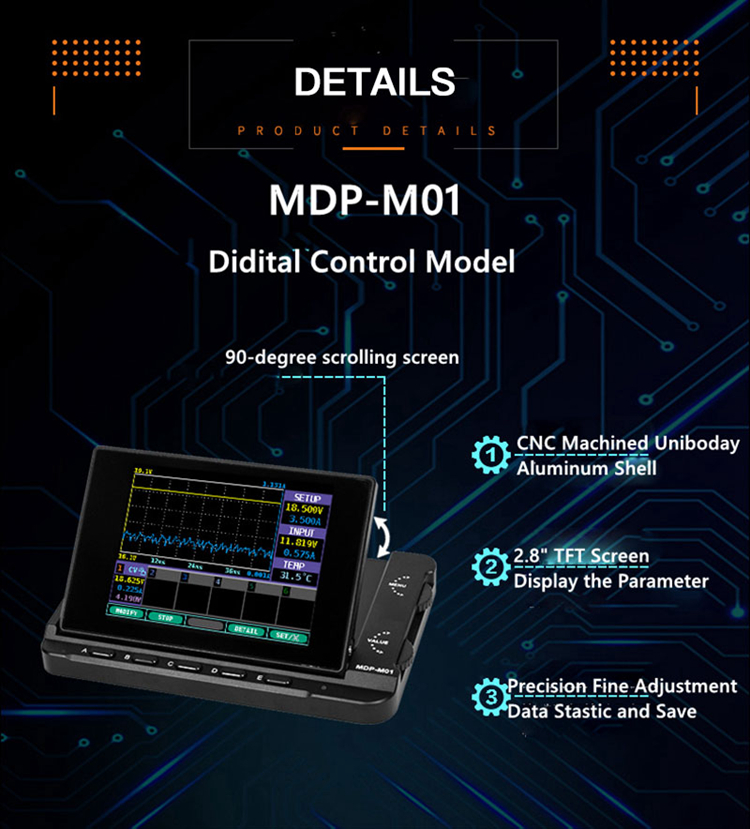

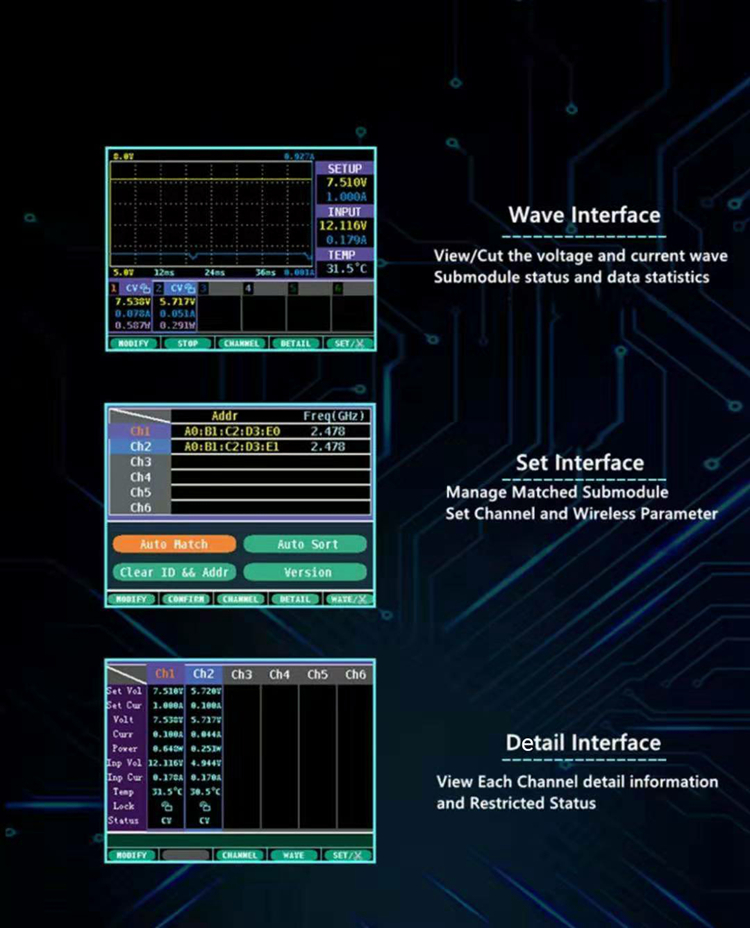

MDP-M01 Smart Digital Monitor: 2.8-inch TFT screen can display voltage / current waveforms in real time. Support data statistics. Automatic pairing control of 6 sub-modules, double-dial wheel control, 90-degree flip human-friendly design.

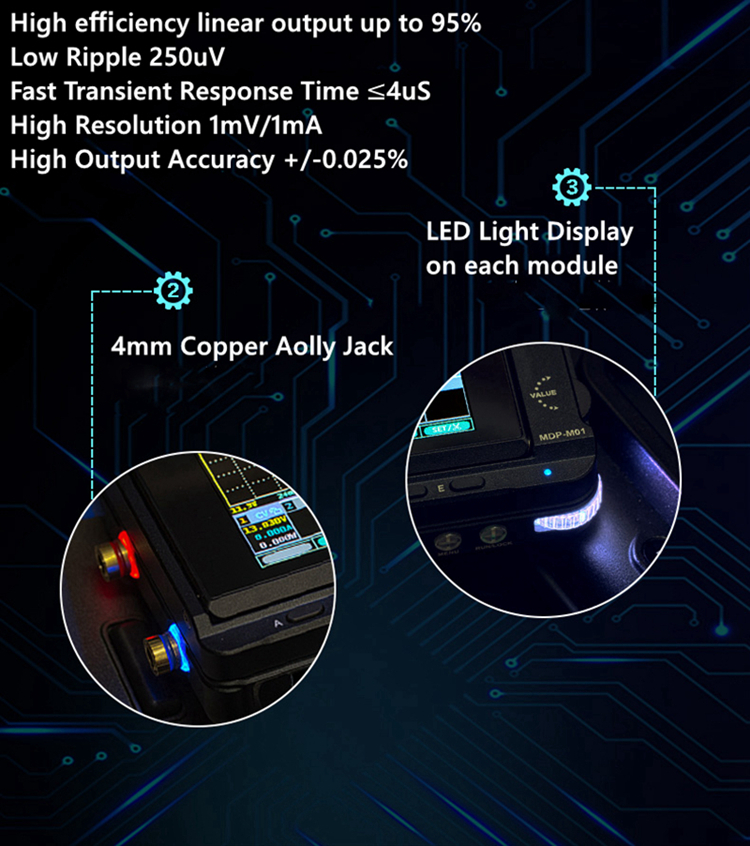

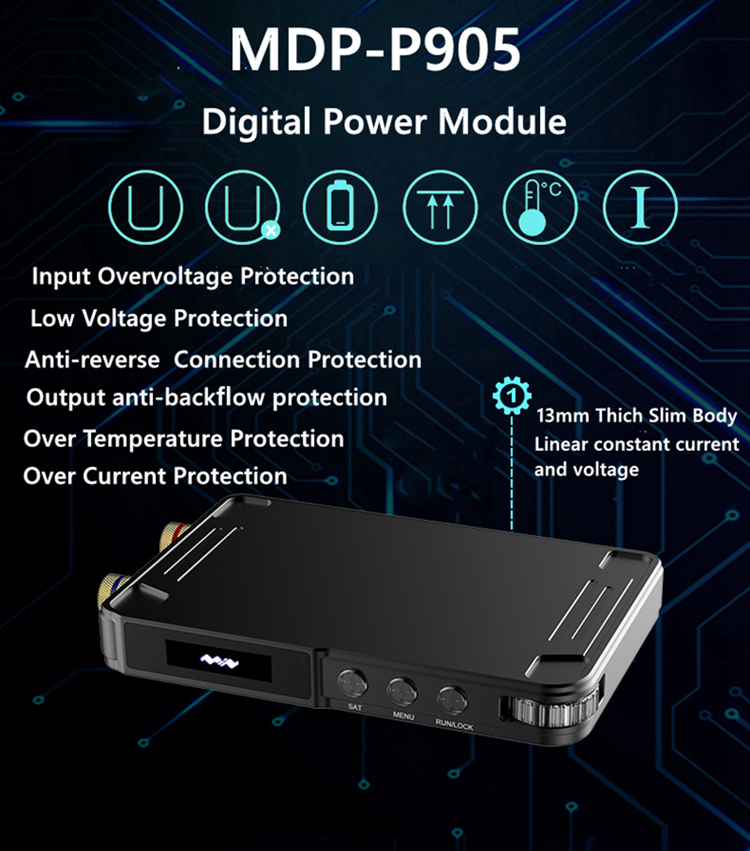

MDP-P905 Digital Power Supply: High-efficiency linear output, 0.25mV ripple, extremely fast transient response. Support precise trimming.

Video:
https://www.youtube.com/watch?v=BU_ZSer5koI

Features:

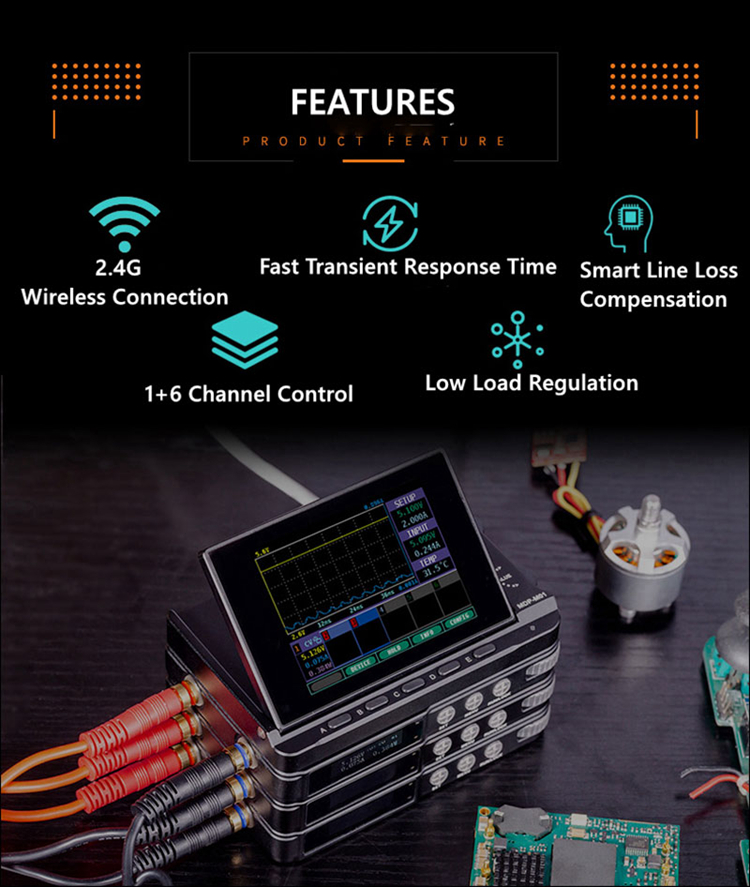

- 2.4G wireless connection. Support 1 display + 6 sub-modules
- DC wide voltage input 3.6V-30V. Can be as low as 2.7V after startup
- Very high-speed transient response and over-current protection, as low as 4uS
- Very low load regulation, intelligent line loss compensation
- High efficiency. 90W natural heat dissipation at full load
- Support positive and negative voltage, series boost, parallel current sharing, any combination of coordinated loads, intelligent power allocation
- Safety Protection: Input over-voltage, under-voltage protection, anti-reverse connection protection, anti-backflow protection, over-temperature protection, over-current protection

Applications:
- Universal tests and teaching experiments in R & D laboratory
- Maintenance of cellphones, laptops and other digital products
- Power supply testing and data logger of RF and microwave circuits or modules
- Purified power supply for high-accuracy digital-analog hybrid circuits and Hi-Fi audio devices
- Property verification and fault diagnosis of devices and circuits
- Quality control and quality inspection
- Emergency power supply for model airplanes and vehicles

Performance Parameters:
MDP-M01 Smart Digital Monitor:
- Display Size: 2.8-inch TFT LCD Display
- Resolution: 320 x 240
- Monitor Size: 101.5 x 64 x 12mm
- Weight: 133g

MDP-P905 Digital Power Supply:

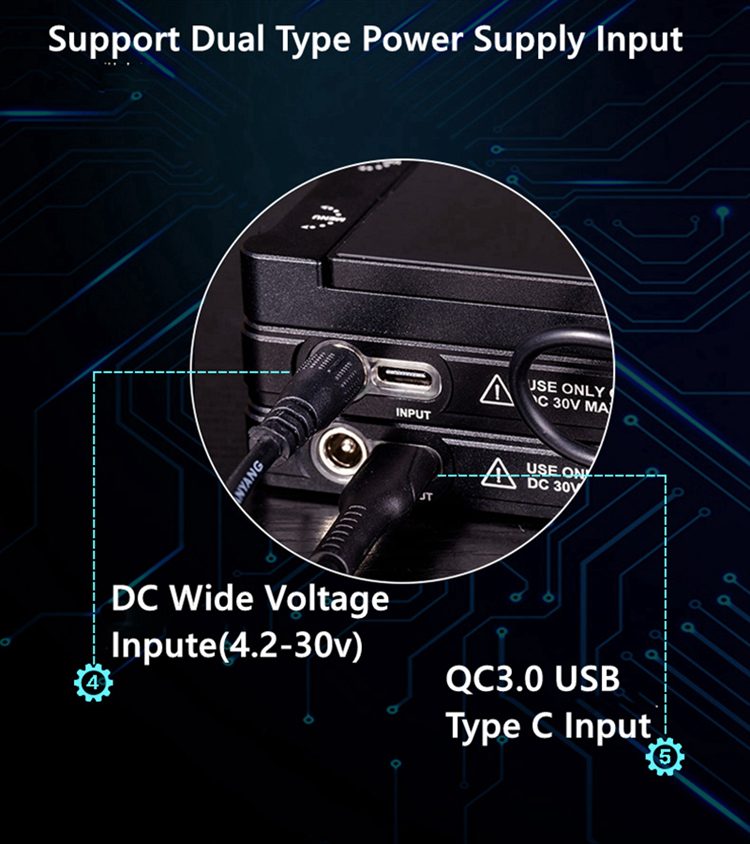

- Input Power: DC4.2-30V(2.7V after start-up), 100mA-6A. Support QC3.0
- One-Channel Output: 30V/5A, 90W
- Adjustment Rate:
* Load Adjustment Rate <±0.01%(Power)
* Power Supply Adjustment Rate <±0.01 %
- Ripple and Noise: 250uVrms/3mVpp
- Transient Response Time: ≤4uS
- Line Loss Compensation Range: 5mR to 100mR
- Protections: Input over-voltage, under-voltage protection, anti-reverse connection protection, output anti-backflow protection, over-temperature protection
- Date Record: Maximum storage space of 7MB, maximum recording time of 24 hours
- Other Characteristics:
* Automatic shutdown to enter micro power consumption mode

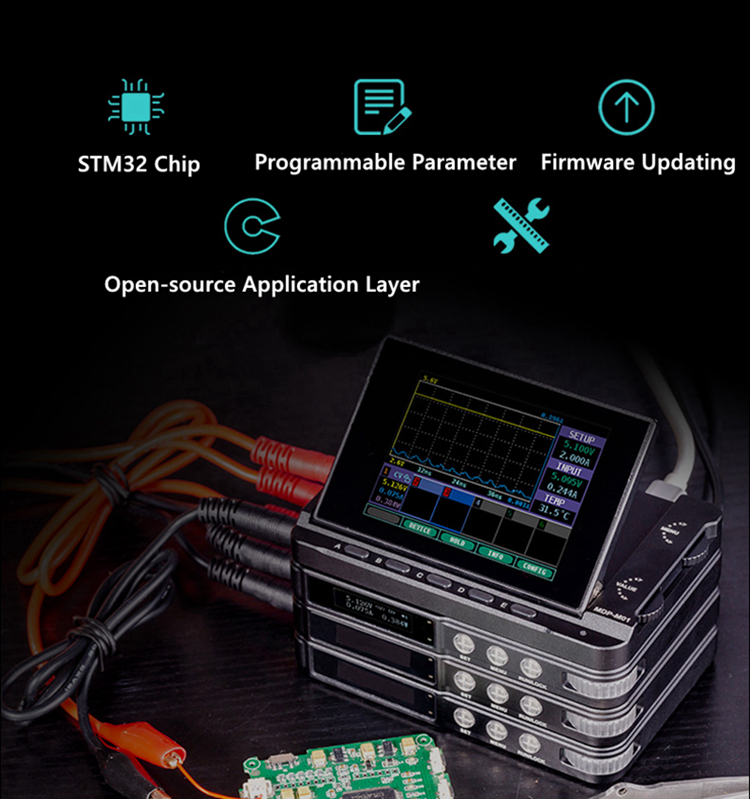

* Support USB firmware upgrading
* Support users to calibrate

Package Included:

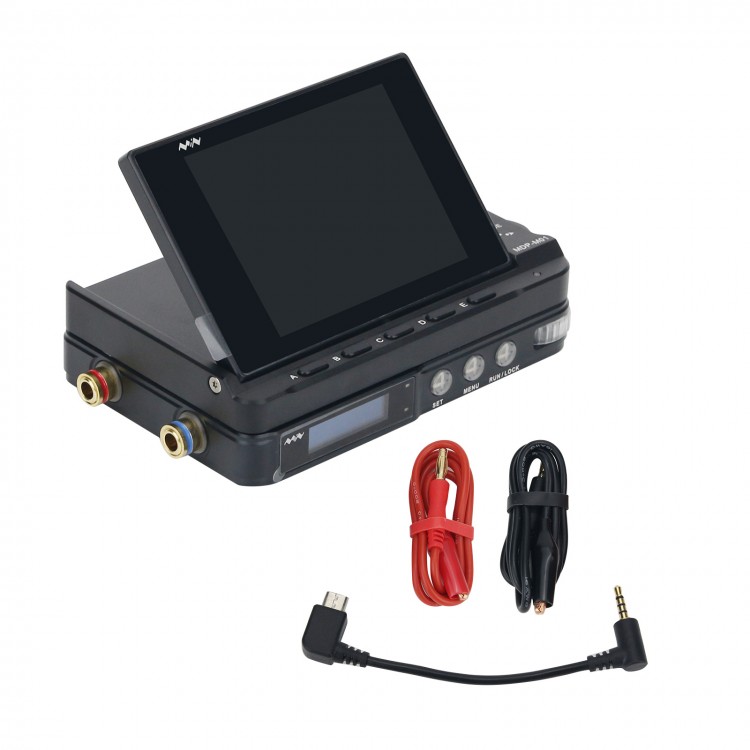

- 1 x Set of MDP-XP Power Supply

Note: All the pictures below are application scenarios. The accessories shown are for reference only, not included.
