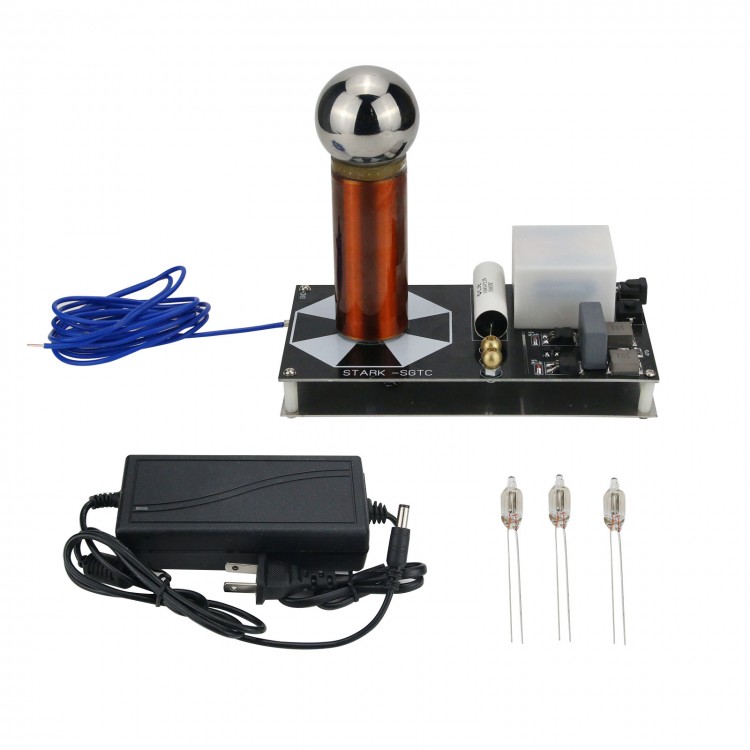

Mini SGTC Spark Gap Tesla Coil Magnetic Storm Coil Artificial Lightning Experimental High-Tech Toy

Mini SGTC Spark Gap Tesla Coil Magnetic Storm Coil Artificial Lightning Experimental High-Tech Toy

Product Information:
- Product name: Mini SGTC
- Voltage: 220 to 12v, 12v to 50kv
- Current: 12v 8a
- Power: 100w
- Size: 17.7*9.5*15cm
- Product weight: 401g

Original Design Intention:
Tesla coil is a transformer (resonant transformer) that operates on the principle of resonance. It was invented in 1891 by the American Serbian scientist Nikola Tesla. Mainly used to produce ultra-high voltage, low current, high frequency AC power. The Tesla coil is made of two sets (sometimes three sets) coupled resonant circuits. It was difficult to define Tesla coil, so Nikola Tesla tried a large number of various coil configurations. Tesla uses these coils to carry out innovative experiments, such as electrical lighting, fluorescence spectroscopy, pseudo-rays, high-frequency alternating current phenomena, electrotherapy and wireless power transmission, transmitting and receiving radio electrical signals.

SGTC means Spark Gap Tesla Coil. The Tesla coil invented by Nikola Tesla that year belongs to SGTC. Thanks to its simple structure and simple principle, it can be used as a Tesla coil for beginners now.

The principle of the traditional Tesla coil is to use a transformer to boost ordinary voltage, and then charge the resonant capacitor of primary LC circuit, charge it to the discharge threshold, discharge the spark gap and conduct, and the primary LC circuit will resonate in series to provide the secondary coil with enough height excitation power. Secondly, the frequency is equal to the secondary LC circuit's, so that the inductance of the secondary coil and the distributed capacitance are in series resonance. At this time, the discharge terminal voltage is the highest, so users see lightning. In layman's terms, the Tesla coil is an artificial lightning generator.

Technical Key Points:
- The transformer housing is 3D printed
- Highly integrated circuit
- Customized high-voltage high-frequency transformer
- High voltage insulation circuit
- Metal base
- Pure copper discharge gap
- Retro design

Product Features:
- Compact size, only the size of a palm
- Small circuit, concentrated components, good heat dissipation
- Safe without electric shock
- Easy to ground
- With switch. Press the switch to start
- Simple to use, easy to maintain, no consumables

Read Before Purchasing:
- The power supply voltage and power of the product cannot be changed privately.
- It is strictly forbidden to connect wires without authorization.
- Prolonged work will produce some ozone, please pay attention to ventilation.
- Be sure to connect ground wire before powering on to work.
- Hands can be close, but it is not recommended to touch the arc with your hands.
- Please not touch capacitor and three copper ball electrodes immediately after use. There is current inside. Be careful of electric shock.

Package Included:
- 1 x Set of Tesla Coil
