Mini Smart APM 4.0 Mini APM V3.1 Flight Control for FPV RC Car Multicopter Aircraft

Mini Smart APM 4.0 Mini APM V3.1 Flight Control for FPV RC Car Multicopter Aircraft

Description:
- Smart APM 4.0 flight control is for small size airplanes, multicopter, fixed-wing aircraft.
- This flight control iswith small volume, completely compatible with active APM2.25,APM2.6. More stable performance.
- The case of flight control is made of PC material, high temperature resistance, resistance to fall, good mechanical strength.

Application:
- For multicopter, quadcopter, hexacopter, octocopter, and 3-axis
- For fixed-wing aircraft
- For land remote control car

Parameter:
- 3-axis gyroscope;
- 3-axis accelerometer;
- 3-axis magnetometer;
- High precision digital atmospheric pressure altimeter;
- 16MB onboard data record;
- Airspeed sensor (optional)
- Current sensor (optional)
- With the digital transmission interface
- With image transmission  interface
- Standard GPS interface;
- Standard USB interface;
- 8 channel PWM output (connected to the power transfer or steering gear)
- 8 channel PPM input (remote control)
- Support the sonar sensor (optional)
Note: after the sonar is on, any model that needs to be fixed will give priority to the data set of the sonar;
over 10 meters, will use the barometer data set hight, and GPS is not used to set hight by default.
- Support optical flow sensor (optional)
Note: in order to improve the accuracy of the location of the GPS that can not be used ,SmartAPM4.0 supports optical flow sensor based on the mouse sensor.

- Support the rich external LED
- Support buzzer

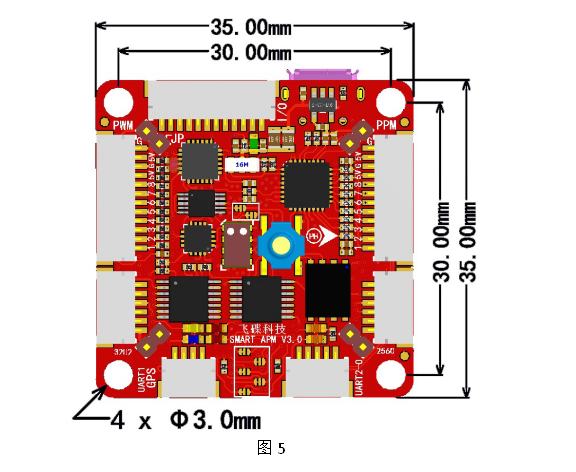

Specification:
- PCB plate thickness 1.0mm
- Mounting hole spacing: 30mm
- Maximum size: 35mm x 35mm
- Maximum thickness: 7mm
- Case size: 37mm x 37mm x 10mm L*W*H

More information: Click here

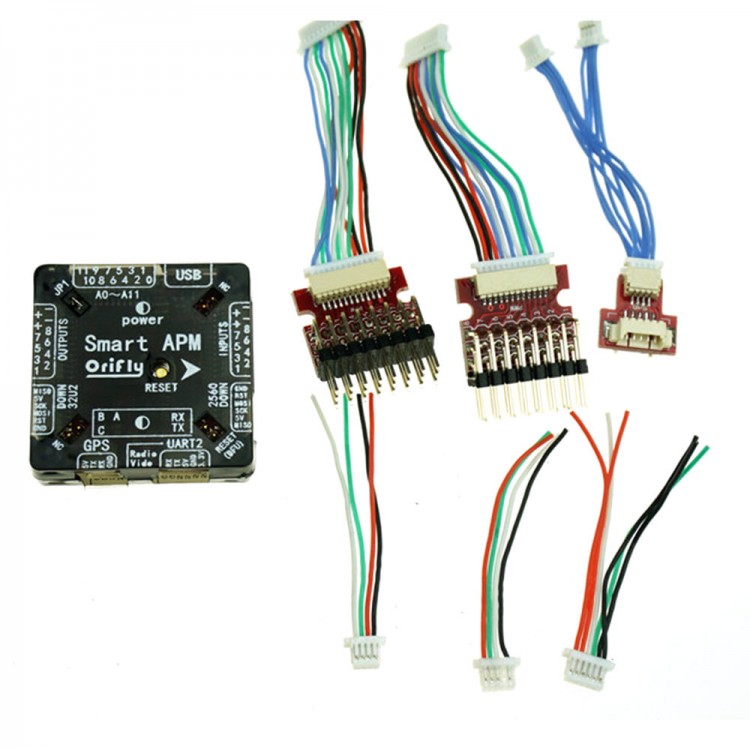

Package included:
- 1 x Mini Smart APM
- 1 x Compass cable
- 1 x GPS cable
- 1 x PPM input data cale
- 1 x PWM output data cable
- 1 x Current sensor cable
