| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $16.77 | $16.43 | $15.91 | $15.23 | Contact US |
TCB-NA Temperature Control Board Semiconductor Cooling Module Support Single Heating Temperature Control
$66.87
TCB-NA Temperature Control Board Semiconductor Cooling Module Support Single Cooling Temperature Control
$66.87
TCB-NA Temperature Control Board Semiconductor Cooling Module Support Bidirectional Temperature Control
$82.22

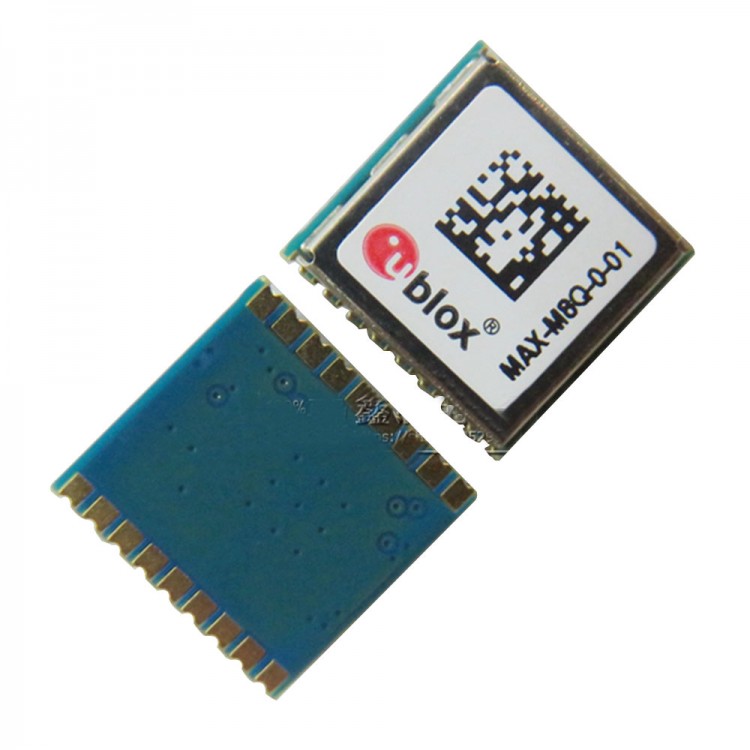

Mini UBLOX Module MAX-M8Q-0-00 Support GPS QZSS L1 C / A GLONASS L10F Positioning System
Specification:
- Size: 9.7*10.1*2.5mm
- Receiving: GPS/GLONASS,QZSS,Big Dipper
- Sensitivity: -167dbm
- 72 channel U-BLOX M8 engine
- GPS / QZSS L1 C / A,GLONASS L10F ;Big Dipper B1;SBAS L1 C / A:WAAS,EGNOS, MSAS
- Navigation update rate: up to 18Hz
- GNSS up to 10Hz
- Position accuracy: 2m CEP
- Collection: (max-m8q, W / max-m8c)
- Cold start: 26 sec / 27
- Auxiliary starter: 2 / 4
- Re location: 1.5 / 1.5
Sensitivity:
- Tracking and net asset value: - 164 dBm 167 dBm / -
- Cold start: - 148 dBm 147 dBm / -
- Hot start: - 156 dBm 156 dBm / -
Assistance
- assistnow GNSS online
- assistnow GNSS offline (up to 35 days, request host integration)
- Assistnow autonomy (6 days)
- SUPL OMA and 3GPP standards
Oscillator
- Temperature compensated crystal oscillator (max-m8q / M8w),
- Crystal (max-m8c)
- Real time clock crystal: built-in (max-m8q / M8w)
- Backup or high cost effective solution
- Current (max-m8c)
- Anti interference: active continuous detection and removal
- Memory: car ROM
- Antenna: active and passive
Package List:
- 1 x MAX-M8Q-0-00
