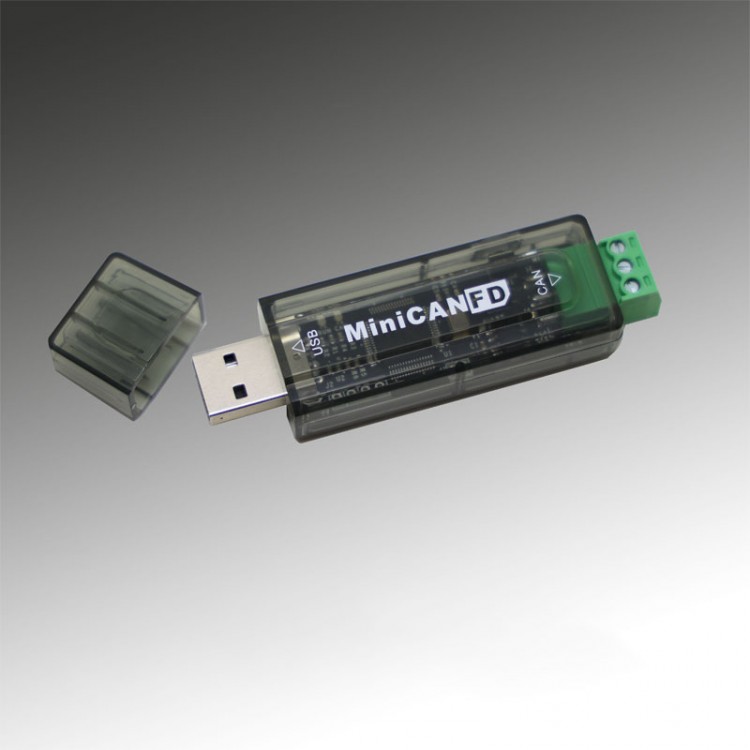

Mini Version Single Channel CANFD Analyzer 1us Timestamp Resolution Compatible with CANTest PCANView TSMaster
Description:
- MiniCANFD is connected to the CANFD network via USB and supports one CANFD bus. It can quickly switch between normal USBCAN mode and USBCANFD mode through buttons.
Features:
- Supports single channel CANFD, ISO and non ISO standards
- Data field CANFD (maximum 64 bytes)
- Baud rate range: 25Kbps ~ 5Mbps
- The timestamp resolution is about 1us
- Support remote firmware upgrade
- Working temperature range: -40 ~ 85℃
Typical Application:
- Realize the sending and receiving of CAN bus network through the USB interface of PC or laptop.
- Fast CAN network data collection and analysis.
- USB interface to CAN network interface.
- Industrial field CAN bus communication.
Package Included:
- 1 x CANFD Analyzer

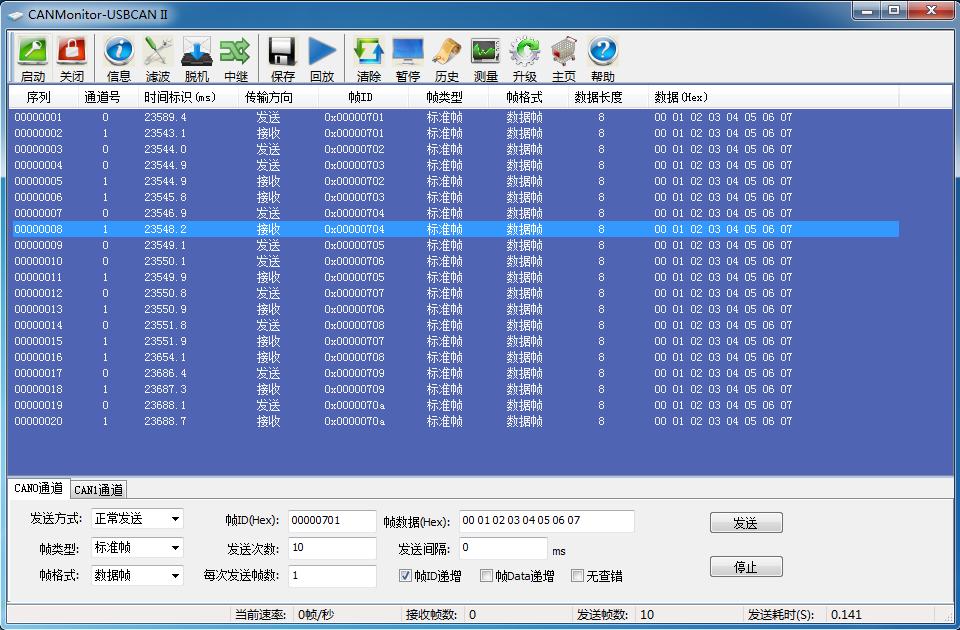

For CANMonitor new version software interface:
- The independently developed upper computer software can transmit and receive data through dual CAN channels, meeting the requirements of conventional debugging applications.

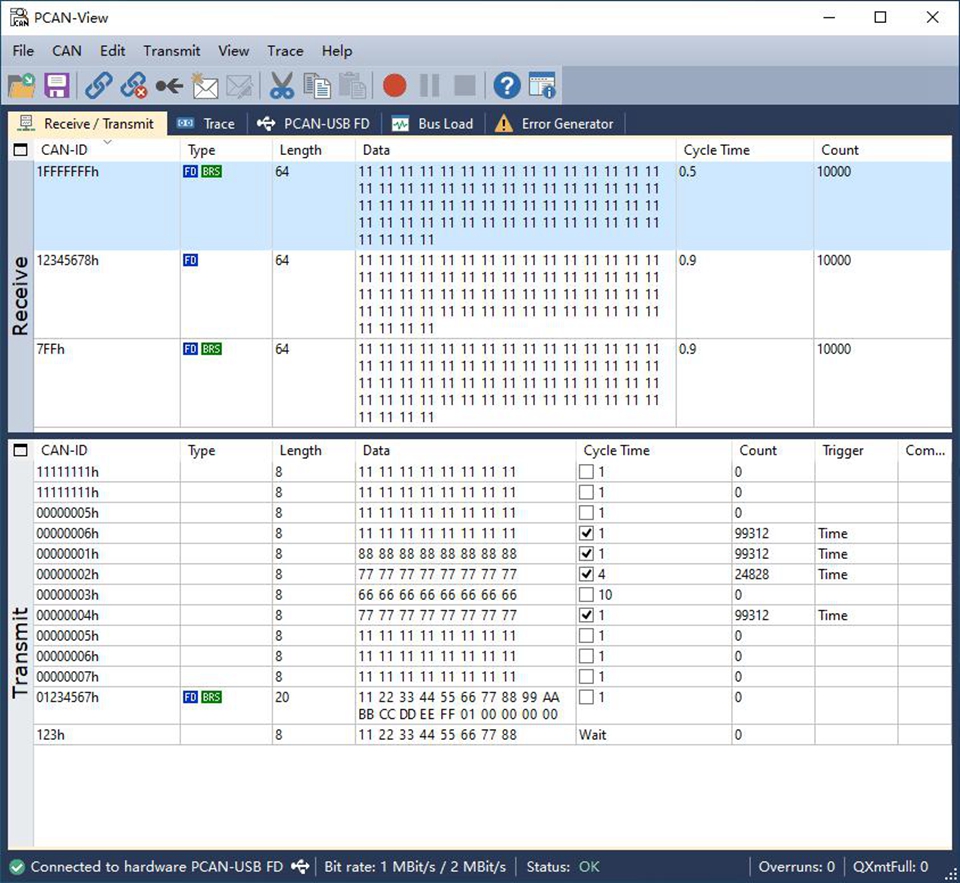

For PCANView software interface:
For PE5 software interface:
