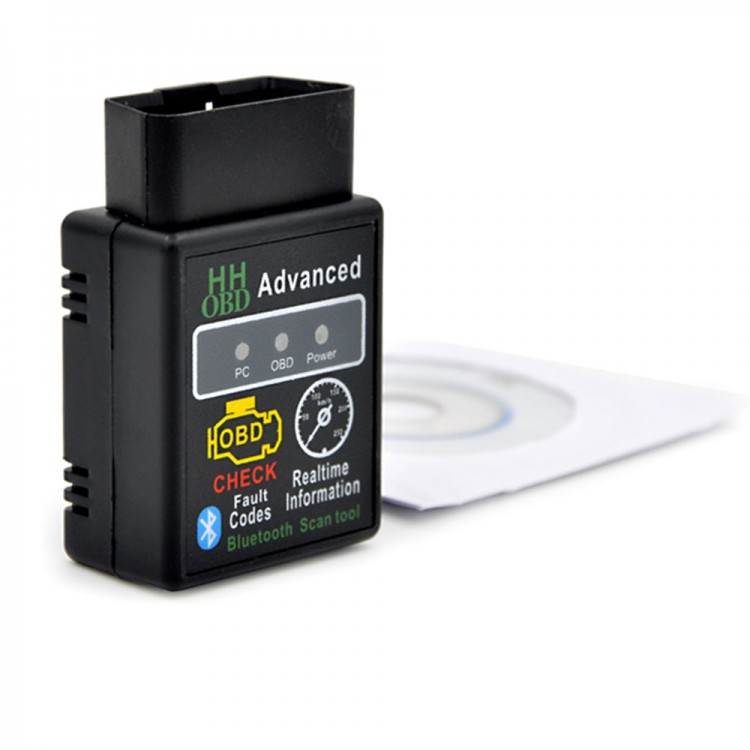

MINI Vgate ELM 327 V1.5 Version Bluetooth Vgate Scan OBD2 OBDII ELM327 V 1.5 Code Scanner BT 16pin Android Adapter

MINI Vgate ELM 327 V1.5 Version Bluetooth Vgate Scan OBD2 OBDII ELM327 V 1.5 Code Scanner BT 16pin Android Adapter

Features:
- The newly developed high-quality wireless scan tool, support all OBD2 protocols.
- Work with all OBD2 compliant vehicles.
- Enable to read diagnostic trouble codes.
- Small bluetooth interface with a 16 pin socket.
- Support different kinds of devices to use this scan tool: Android system phones, Symbian system phones, Windows XP and WIN7 32bite computers.

Note:
- This one CAN'T support for Diesel or Trucks.
- Latest software version supports most of OBD-II protocols.
- Pls use Android System V4.0 to V4.4 version.

Functions:
Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
Display current sensor data, including:
- Engine RPM
- Calculated Load Value
- Coolant Temperature
- Fuel System Status
- Vehicle SpeedV1.5
- Short Term Fuel Trim
- Long Term Fuel Trim
- Intake Manifold Pressure
- Timing Advance
- Intake Air Temperature
- Air Flow Rate
- Absolute Throttle Position
- Oxygen sensor voltages/associated short term fuel trims
- Fuel System status
- Fuel Pressure

Specifications:
- Type: code readers & scan tools
- Output protocol: bluetooth
- Color: blue
- Material : plastic
- Voltage: 12V
- Current: 45mA
- Wave frequency: 38400Hz
- Applicable scope: 5-10m/ 16.4-32.8ft
- Item size: 4.7 * 2.3 * 3.1cm/ 1.8 * 0.9 * 1.2in
- Item weight: 21g/ 0.7oz
- Total weight: 34g/ 1.2oz

Multi-Protocol Support:
- SAE J1850 PWM(41.6Kbaud)
- SAE J1850 VPW(10.4Kbaud)
- ISO9141-2(5 baud init, 10.4Kbaud)
- ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
- ISO14230-4 KWP (fast init, 10.4 Kbaud)
- ISO15765-4 CAN (11bit ID, 500 Kbaud)
- ISO15765-4 CAN (29bit ID, 500 Kbaud)
- ISO15765-4 CAN (11bit ID, 250 Kbaud)
- ISO15765-4 CAN (29bit ID, 250 Kbaud)
- SAE J1939 CAN (29bit ID, 250*Kbaud)
- USER1 CAN (11*bit ID, 125*Kbaud)
- USER2 CAN (11*bit ID, 50*kbaud)
  Default settings (user adjustable)

Vehicle Coverage:
- Works on almost all OBD2 Vehicles (1996 onwards in USA) and EOBD vehicles
- Alfa Romeo/ Ad/ Bentley/ BW/ Cadillac/ Che-vrolet/ Chrysl/ Citroen/ Daewoo/ Fiat/ Fo-rd/ G-M/ Hod/ Hyundai/ Isuzu/ Jaguar/ Je-ep/ Kia/ Lan-d Rover/ Lexus/ Mazda/ Mercury/ Mini/ Ni-ssan/ Mitsubishi/ Opel/ Peugeot/ Posch/ Renault/ Rover/ Saab/ Seat/ Skoda/ Toyt/ Vauxhall/ Volvo/ VW

For your information:
 - For your vehicle to be OBD II compliant it must have a 16-pin DLC (Data Link Connector) under the dash and the Vehicle Emission Control Information Label must state that the vehicle is OBD II compliant.
- This hardware can match much other software still! But most of them are not free!
- Works for Windows98/ME/2000/XP/Vista & 7!
- This tool does not match abs and airbag system!
- Bluetooth pair code: 1234 OR 0000
- Main Control Chip: PIC18F2480

Packing List:
- 1*Vgate ScanV1.5 Bluetooth Diagnostic Interface
- 1*CD
