Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $25.70 | $25.17 | $24.38 | $23.34 | Contact US |
Mini Walkie Talkie Handheld Transceiver 400-470MHz 16 Channels Communication Distance 1-3KM HYDX F10
Technical Parameters:
General Specifications:
- Frequency Range: 400-470MHz
- RF Output Power: 2W
- Channel Capacity: 16 Channels
- Channel Spacing: Wide Band 25KHz/ Narrow Band 12.5KHz
- CTCSS/DCS: 50 CTCSS/ 105 DCS
- Operating Temperature: -20℃ to 60℃
- Storage Temperature: -40℃ to 85℃
- Operating Voltage: DC 3.7V
Transmitter Part:
- Conducted Output Power: >2W@4.2V
- Conduction & Radiation Emission: -50dBm@<1GHz; -42dBm@>1GHz
- Adjacent Channel Power: -60dBm@12.5KHz; -65dBm@25KHz
- Modulation Frequency Offset Limit: 2.5KHz@12.5KHz; 5KHz@25KHz
- Modulation Distortion: 5%
- Frequency Stability: ±5ppm
Receiver Part:
- Analog Sensitivity: 0.20μV/-121dBm (24dB SINAD)@25KHz
- Adjacent Channel Selectivity: 50dB@2.5KHz; 55dB@20/25KHz
- Inter-Modulation: 55dB
- Spurious Response Rejection: 55dB
- Audio Output Power: 3.7V@0.33-0.37W
- Audio Distortion: ≤5%
- Blocking: 85dB
Features:
- Mini Walkie Talkie
- Compact Size for Easy Carrying
- Scrambling Encryption
- Clear Sound Quality
- Two PTT Transmitting Buttons
- Saving Power
- Solid Shell Anti-Dropping
- Dust-Proof Raindrop-Proof
- Power 2W
- 400-470MHz
- 16 Memory Channels
- Support Monitoring
- CTCSS/DCS
- VOX: Support Voice Control
- Scanning Function
- Charging via USB Cable

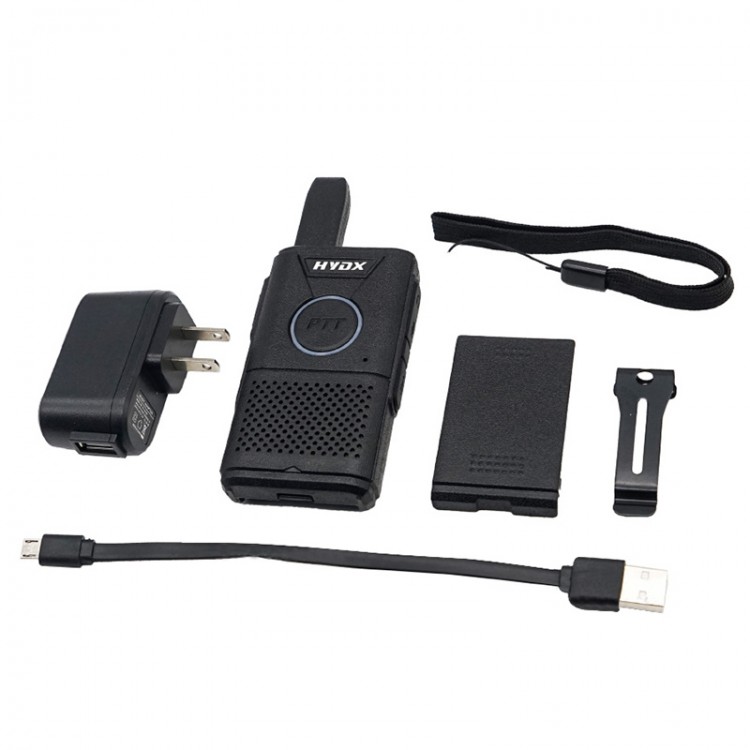

Package Included:
- 1 x Walkie Talkie
- 1 x Charger Head
- 1 x Hanging Strap
- 1 x Belt Clip
- 1 x USB Cable
