Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $25.15 | $24.63 | $23.86 | $22.84 | Contact US |

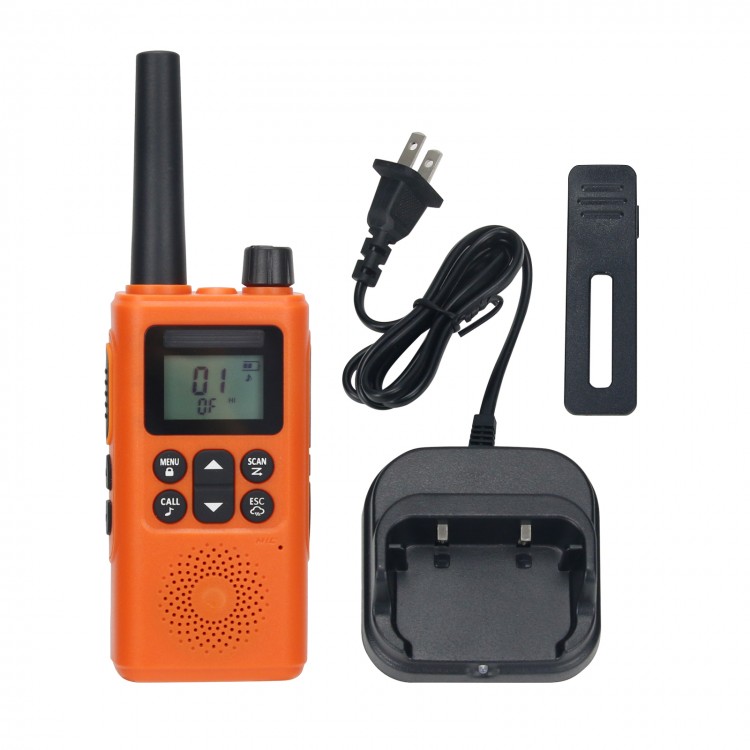

Mini Walkie Talkie UHF Radio Handheld Transceiver (Orange) Enables Smooth Communication 22 Channels
Features:
- Working frequency: UHF 462-467MHz (receiving and transmitting)
- 22 memorized channels
- Non-standard CTCSS
- 50 groups of CTCSS and 105 groups of DCS
- TOT function; VOX helps free your hands
- PC programming. Password protection for frequency reading and writing
- Special signaling (frequency hopping), anti-interference can make stronger
- With flashlight; low voltage alarm; scan channel
- Can monitor two frequencies at the same time
- Weather forecast; clearer sound quality
- Type-C charging
Basics Parameters:
Overall:
- Frequency range: UHF 462-467MHZ
- Channel capacity: 22
- Channel spacing: 25/12.5KHZ
- Input voltage: 3.7vdc
- Battery (standard configuration): 4800mAh
- Battery Life (5-5-90, high power transmit): About 14 hours
- Standby: ≤ 20mA
- Receiving: ≤ 450mA
- Transmitting: ≤ 1.4A at high power, 650 at low power
- Frequency Stability: ±2.5ppm
- Stable work: -20℃ to+60℃
- Antenna Impedance: 50Ω
- Intercom Dimensions: 119 x 55.5 x 32.5mm/4.7 x 2.2 x 1.3"
- Walkie talkie weight: 161G/0.4Lb
Transmitter:
- Transmitting output power: ≤5W
- Modulation: 16K0F3E at 25KHz; 11K0F3E at 12.5KHz
- Spurious emissions: -36dBm (<1GHz); -30dBm (>1GHz)
- FM SNR: 45dB at 25KHz; 40dB at 12.5KHz
- Audio Distortion: ≤5%
- Modulation Limit: ±5.0KHz at 25KHz; ±2.5KHz at 12.5KHz
- Adjacent channel power: 70dB at 25KHz; 60dB at 12.5KHz
- Audio Response (300-3000Hz): +1 to 3dB
Receiver:
- Receive sensitivity: 0.25uV (12dB SINAD)
- Adjacent channel selection: ≥60dB at 25KHz; ≥55dB at 12.5KHz
- Intermodulation immunity: ≥60dB at 25KHz; ≥55dB at 12.5KHz
- Conducted spurious emissions: ≤ -57dB at 25KHz; ≤ -57dB at 12.5KHz
- FM SNR: ≥45dB at 25KHz; ≥40dB at 12.5KHz
- Audio output power: 1W at 8 ohms
- Audio Distortion: ≤ 5%
- Audio Response (300-3000Hz): +1 to -3dB
Package Included:
- 1 x Walkie Talkie
- 1 x Belt Clip
- 1 x Charger Dock
