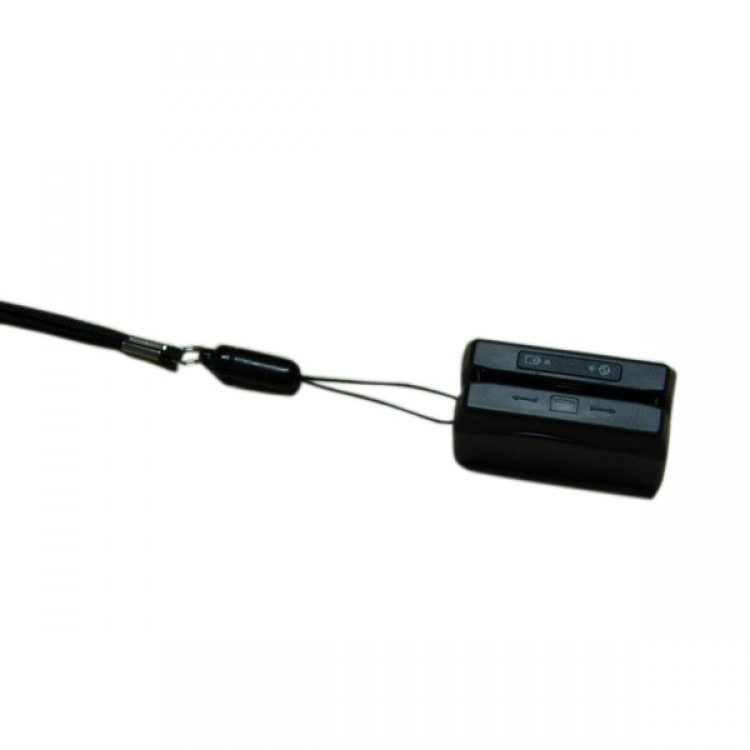

MINIDX3H High-speed USB Portable Magnetic Stripe Card Reader Data Collector

MINIDX3H High-speed USB Portable Magnetic Stripe Card Reader Data Collector
Features:
- 2MB (Kilo Bytes) memory for storing 8000+ data
- 3-track version can collect all 1, 2 and 3 tracks of data
- Time stamp shows date and time with every transaction (swipes)
- Password Protection defends user (can be changed with the software)
- Auto Power Off is set by user
- Bi - Directional
- Battery powered and low battery indicated
- Data downloadable to the computer via USB
- Read ISO format and special format are available upon request
- No programming required, easy to use as 1- 2- 3
- Dimensions in mm: L 47 x W21 x H 31 mm
- Net Weight: 25g
- Electrical
- Battery Power 3.7v 250 mAH Rechargeable Battery
- Working Temp 0~55 Deg. C
- Humidity 10~90% Relative
- Storage Temp -10~55 Deg C
- Communication Standard USB
Performance
- Read card Track1 Track2 Track3
- Bit per density 210 bpi 75/210bpi 210 bpi
- Time stamp
- Date: YY/MM/DD ( 2007/03/15 => Mar. 15, 2007 )
- Time: HH:MM:SS (19:08:35 => 7:08:35pm)
- Week: Sun.=>1, Mon.=>2, Tue.=>3 Wed.=>4,
- Thurs.=>5, Fri.=>6, Sat.=>7
- Example: 2002/04/12 19:08:35 6 =>
-12, 2002, 7:08:35pm, Friday
- Coercive force Read 300-4000 oe Mag.card
- Card thickness 0.76-1.2mm
- Read Speed Card speed through the unit may vary from 3 ~50 ips
- Error rate Read < 0.5% Write < 0.8%
- Head life Min. 1000K swipes for both read/write head
- CE ,FCC, Rohs
Box Contents:
- 1 MINIDX3H
- 1 Software CD
- 1 Rope
- 1 USB cable
