Product Description:

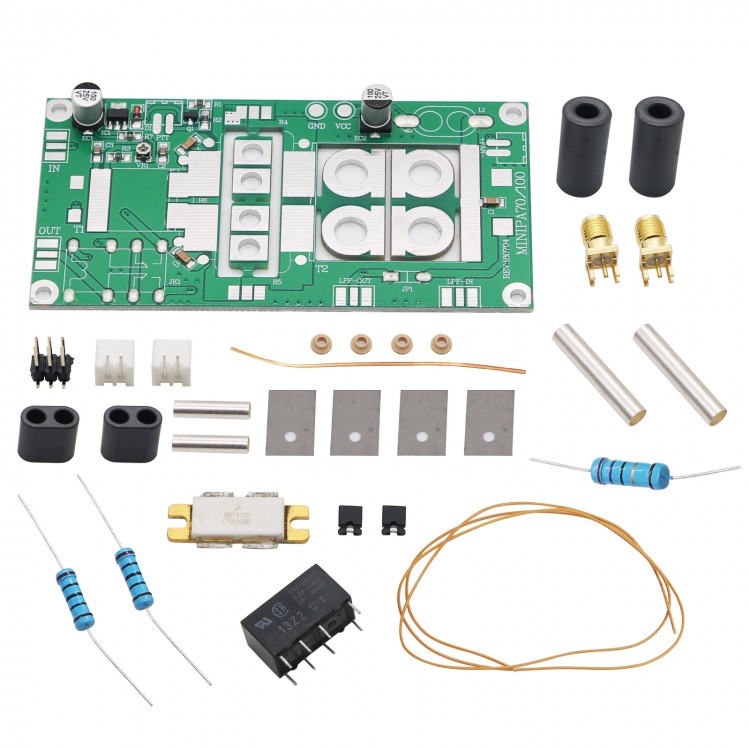

MINIPA100 ft-817 kx3 amplifier IC-703 kit microwave amplifier kit, including PCB and other accessories, without heatsink.
Electrical parameters:
- Operating frequency band 1.8 - 54 MHz
- Power supply voltage: 12V-16V
- Current: 12A
- Max input power:5W
- Max output power: 100W(13.8V/80W;16V/100W)
- Air cooling: forced fan cooling
- Size: 50 x 100 mm
Warning: The output is forbidden to open circuit, short circuit, the prohibition of Bobbi 2 or more.
Package List:
- 1 x MINIPA100 ft-817 KX3 kit
