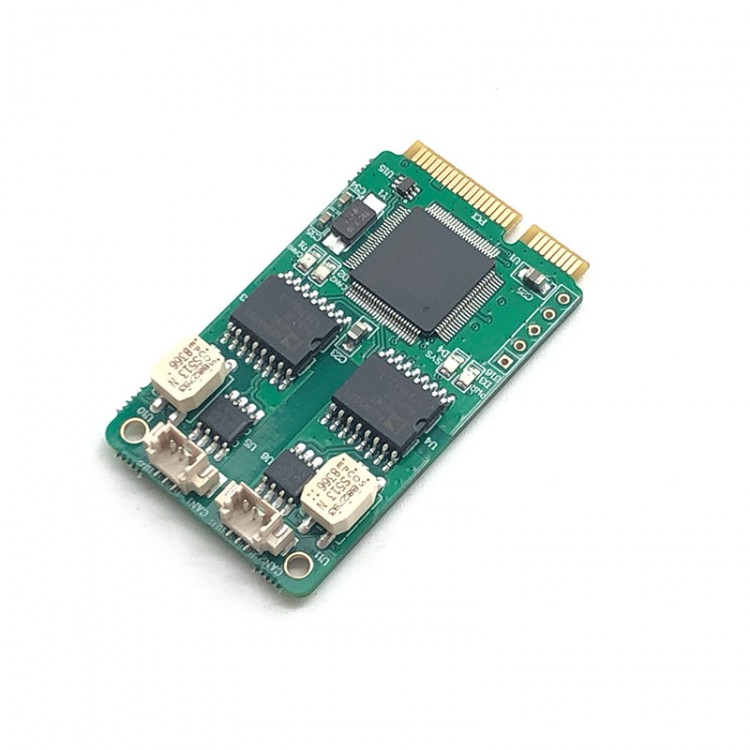

MiniPCIe-CAN Mini PCI Express To CAN Interface Card USB To CAN 3.3VCAN For USB CAN Bus Protocol

MiniPCIe-CAN Mini PCI Express To CAN Interface Card USB To CAN 3.3VCAN For USB CAN Bus Protocol

Performance and Technical Indicators:
● Protocol conversion between USB and CAN bus
● With 2pcs CAN interfaces; support two-way transmission, CAN sending, CAN receiving
● Support CAN2.0A and CAN2.0B protocol, support standard frame and extended frame, data frame and remote frame
● CAN controller baud rate is optional between 10Kbps-1Mbps, and can be configured by software
● CAN bus interface adopts high-speed magnetic coupling isolation and integrated isolation DC-DC power supply; three-terminal full isolation (PCI bus and CAN bus isolation, CAN1 and CAN2 isolation)
● Support relay function, transparent transmission function, 2500V isolation between CAN1 and CAN2
● Flow: Two CAN channels (when running at the same time) can receive 8500 frames/s and send 8500 frames/s (two channels receive 8500 frames/s at the same time, PCI speed can reach 17000 frames/s, no frame loss)
● The internal CAN transmit buffer capacity is 1000 frames per channel (automatically retransmitted if the transmission fails), and the CAN receive buffer capacity is 2000 frames per channel
● PCI ExpressMini interface directly supplies power without external power supply
● Passed 2500V isolation withstand voltage test
● Built-in conjugate coil (common mode inductance) to suppress common mode interference and improve anti-interference ability
● Support for ISO15765 protocol analysis, CANOpen, J1939, DeviceNet analysis, DBC analysis
● PC interface: 52Pin PCI ExpressMini slot
● CAN interface: 3Pin pitch 1.25mm card socket, additional adapter leads are purchased
● Terminal resistance: 120 ohm terminal resistance onboard, which can be removed by yourself
● System: for windows 7/8/10 (32/64bit), Linux (32/64bit)
● Working temperature: -40 to 85℃
● Shell size: 30*51*6.7mm
● Product compatibility: function library support for ZLG-USBCAN interface adapter

Typical Applications:
1. Mainboard MiniPCIe in-line: If a computer or embedded host has a MiniPCIe slot, it can be used directly by plugging it in. The method of use on the computer side is the same as that of USBCAN.
2. Insert into USB port directly: It can be used with a USB to MiniPCIe adapter board, and it can be directly plugged into the USB port of a computer or laptop.
3. USB cable connects to the USB port of motherboard: It can be used with an USB to MiniPCIe adapter board. Directly connect it to the USB port of the electrical host through a USB 4pin cable, and it can be built-in and fixed in your computer host.

Package Included:
- 1 x Set of MiniPCIe-CAN

Note:
- Other items pictured are not included, for demonstration purposes only. Thank you for your understanding!
