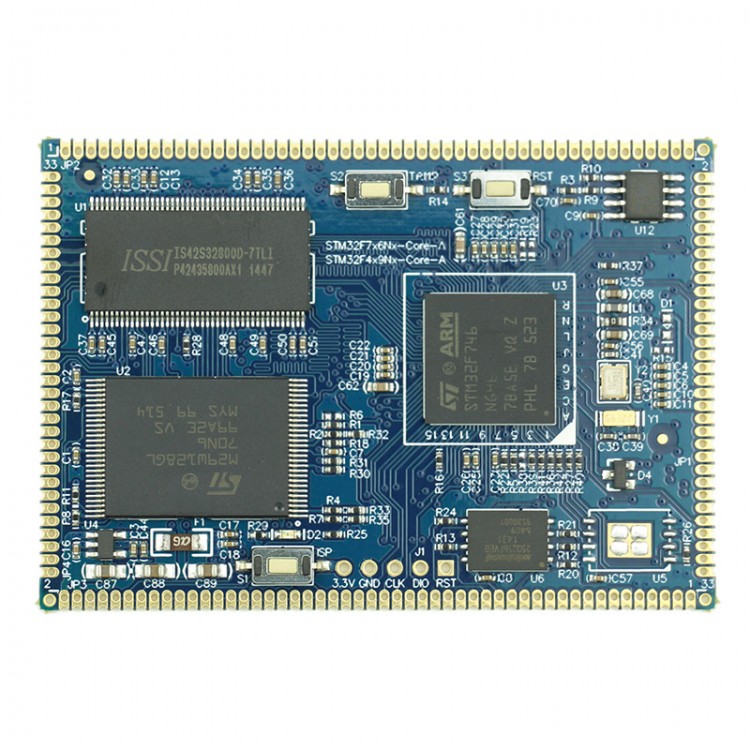

MiniSTM32F746NG Core Board 32Bit Cortex-M7 Kernel STM32F746NG for Arduino
Description:
ARM 32-bit Cortex-M7 CPU with FPU, frequency up to 216 MHz, MPU, 462 DMIPS/2.14 DMIPS/MHz (Dhrystone 2.1), and DSP instructions.
Examples of programs offered has the following features:
operating system:
FreeRTOS -- V8.1.2;www.freertos.org
uC/OS-III -- V3.04.05
File System:
FatFs -- R0.10b; click here
Network protocol stack:
Lwip -- V1.4.1;click here
Graphics Library:
STemWin -- V5.26;C/GUIThe new version, STemWin emWin the exclusive customized version, click here
USB:
STM32 USB Device Library - V2.4.0; ST development of USB devices from the development package, from equipment support AUDIO, CDC, Custom HID, HID, MSC, provide the source code.
STM32 USB Host Library - V3.2.0; ST development of USB devices from the development kit, master in supporting AUDIO, CDC, HID, MSC, MTP, provide the source code.
Examples of the program according to the functions described as follows:
The internet:
Lwip-httpserver - a Web Server example, through web control panel LED development and reads AD value.
Lwip- ftp server - a TFTP related application program, through TFTP software to upload files to the development board SD card or SD card file download.
Lwip-UDP / TCP- client - a UIP / TCP client program, the development board can press the button to UDP / TCP server report button is pressed.
Lwip-UDP / TCP- server - a UDP / TCP server program, from the client sent me the data sent back to repackage.
Lwip- IAP - a HTTP and FTP-related programs, to update the application via the web or TFTP software, network boot loader functions.
FreeRTOS-Lwip-httpserver-netconn - netconn protocol that uses a Web server, operating system FreeRTOS.
FreeRTOS-Lwip- http server-socket - a socket communication mode using Web server program.
FreeRTOS-UDP / TCP-echo-server-netconn - a use netconn protocol echo server program, you can use UDP and TCP are two connection modes, the program sent from the client over the data sent back to repackage.
USB:
STM32Cube-USB-HID - a USB device HID class from procedures, mouse functions, press the cursor navigation keys on the PC development board can be respectively up, down, left and right direction.
STM32Cube-USB-Custom HID - a USB HID device custom classes from a program, it can control the development board through the PC software LED lights on and off, for the key state and the AD adjustable resistance value.
STM32Cube-USB-MSC - from a USB device MSD class program, to achieve the function of USB card reader, SD card as the storage medium.
STM32Cube-USB-CDC - from a USB device CDC class program, the development board via a USB cable to connect your PC will be more than a virtual serial device.
STM32Cube-USB-DFU - from a USB device DFU class program that can be used to update the application, to achieve USB boot loader functions
STM32Cube-USB-HID-Host - When a USB HID class master program, you can access USB mouse or a USB keyboard, USB mouse connected to the state of the mouse movement and button information can be displayed on the LCD screen, connect USB keyboard can be displayed by pressing the keyboard characters on the LCD screen, and another program with FreeRTOS operations may achieve the same functionality.
STM32Cube-USB-MSC-Host - a USB host control MSD class program, the development board can create a text file to the U disk and browse file information U disk, and another program with FreeRTOS operations may achieve the same functionality.
STM32Cube-USB-AUDIO-Host - a USB AUDIO class master control program, you can access USB sound card, you can play audio files stored on the SD card wav format.
STM32Cube-USB-Dynamic Switch -Host - features the above three USB master program can merge respectively connected USB mouse, USB keyboard, U disk, USB sound card.
STM32Cube-USB-FWupgrade-Host - a USB host control MSD class program, you can update the application through the U disk, to achieve USB Host boot loader functions.
FatFS:
FatFs-RAMDisk - use FatFs disk file system with SDRAM as the formatting, create a file, open the file, write file, read the file, close the file and other operations, and another example of the belt FreeRTOS operating system to achieve the same functionality.
FatFs-uSD - use FatFs disk file system as the formatting, create a file, open the file, write file, read the file, close the file and other operations with SD card, and another example of the belt FreeRTOS operating system to achieve the same functionality .
FatFs-USBDisk - use FatFs file system with U disk as disk achieve the creation of a file, open the file, write file, read the file, close the file and other operations, and another example of the belt FreeRTOS operating system to achieve the same functionality.
FreeRTOS:
There are simple to create threads, timers, semaphores, from the interrupt service routine sending semaphore, mutex, queues, low power consumption and other seven examples.
uC/OS-III:
on uCOS downloaded from Micrium STM3240G-EVAL AS3 SDK ported the latest version of uC / OS-III, uC-Serial driver with floating-point operations can be carried out.
GUI:
emWin-Standalone - program respectively showing the radial menu, transparent dialog, icon view, tree view, list view, the virtual screen, zoom rotate pictures, draw graphics, bitmaps, cursors, color and so on.
LTDC:
LTDC Pictures From SDCard - the images on the SD card of BMP format is displayed on the LCD screen.
LTDC_AnimatedPictureFromSDCard - SD card images within multiple BMP format is displayed continuously on the LCD screen animated feature.
DCMI:
Like the first picture can collect feature, you can save the image to achieve digital cameras U disk function (temporarily implement this feature on the 4.3-inch LCD screen)
Description of other programs, please see the following link User Manual:
Some examples Screenshot:

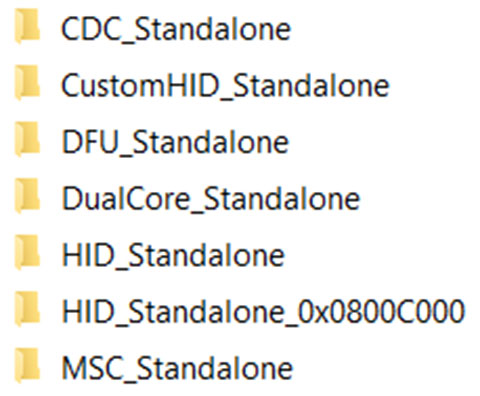

USB STM32Cube packages from the device under examples:

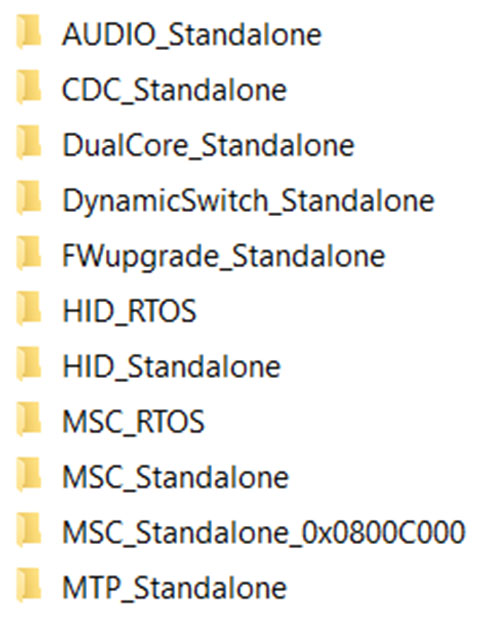

USB master STM32Cube example under a package:

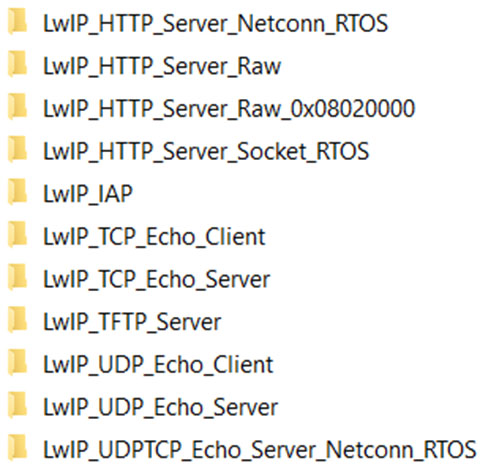

STM32Cube package under LwIP network protocol stack example:

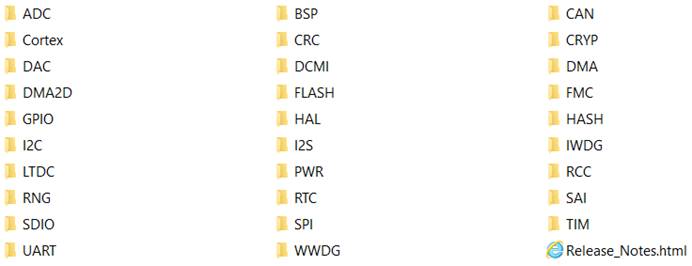

STM32Cube package at the bottom of the drive example:
Package included:
- 1 x Core Board
