MinPro100 USB HIgh Speed Programmer Motherboard BIOS SPI FLASH 24 25 95 Memory Programming Unit

MinPro100 USB HIgh Speed Programmer Motherboard BIOS SPI FLASH 24 25 95 Memory Programming Unit

Programming data information download: Click here

Product Introduction
- Using 50M USB2.0 high speed MCU
- Integrated USB2.0 data transmission interface 2 system, ensure the burning speed
- Support for a wide range of chips: including the most commonly used 25 FLASH SPI, 24 EEPROM, 25 EEPROM, 95EEPROM,
4 perfect function of the host computer programming software, full of Chinese humanistic operation interface
5 support chips wipe, write, check automatic recording
6 independent color box packaging
7 automatic identification of 2425 burning chip capacity
8 burning voltage automatic switching, support 3.3V 5V chip burning voltage
9 to improve the hardware and firmware protocol, device algorithm is realized by software.
10 appearance, using computer CNC shell, compact and convenient.
11 support Windows2000, XP, Vista, Win7, 32/64 operating system
Write speed (measured data Win7 64 environment)
GD25Q80 8M burning time of 10 seconds.
MX25L32 32M burning time of 50 seconds.
MX25L64 64M burning time of 1 minutes and 30 seconds

Application field:
1: suitable for home appliance repair appliance repair industry brush to write memory chip color TV, DVD, computer motherboard, hard disk.
2 product development: test chip burning product development process.

AMIC:
A25L010 A25L10P A25L020 A25L20P A25L040 A25L40P A25L080 A25L80P A25L016 A25L16P A25L032 A25L064 A25L128 A25L256

ATMEL:
AT25FS010
AT25FS040 AT26F004 AT26DF081A AT25DF161
AT25F512 AT25F2048 AT25F4096

CFEON | EON:
EN25D10 E25F10 EN25LF10 EN25P10 EN25D20 EN25F20 EN25LF20 EN25D40 EN25F40 EN25LF40 EN25D80 EN25F80 EN25Q80 EN25T80 EN25B16 EN25B16T EN25D16 EN25F16 E25Q16 EN25T16 EN25B32 EN25B32T EN25F32 EN25P32 EN25Q32 EN25B64 EN25B64T EN25F64 EN25P64 EN25P128 EN25P256

ES:
ES25P10 ES25P20 ES25M40 ES25M40A ES25P40 ES25M80 ES25M80A ES25P80 ES25M16 ES25M16A ES25P16 ES25P32 ES25P64 ES25P128 ES25P256

ESMT:
F25L08PA F25L16PA F25L32PA F25L32QA F2525L64 F25L128 F25L256

FIGADEVICE:
GD25Q10 GD25Q20 GD25D40 GD25F40 GD25Q40 GD25D80 GD25F80 GD25Q80 GD25T80 GD25Q16 GD25Q32 GD25Q64 GD25Q128 GD25Q256

MXIC:
MX25L1005 MX25L2005 MX25L4005A MX25V4005 MX25V8005 MX25L1605D MX251635D MX25L3205D MX25L3206E  MX25L3225D MX25L3235D MX25L3237D MX25L6405D MX25L6445DMX25L128MX25L256KH25L80 KH25L16 KH25L32 KH25L64 KH25L128

NexFlash:
NX25P10, NX25P20, NX25P40, NX25P80，NX25P16，NX25P32, NX25P64, NX25P128, NX25P256

PMC:
PM25LV080B, PM25LV016B ,Pm25LV512，Pm25LV010，Pm25LV020，Pm25LV040，Pm25LV080，Pm25LV016，Pm25LV032，Pm25LV064,PM25LV128,PM25LV256

SPANSION:
S25FL004A S25FL008A S25FL016A S25FL032A S25FL032P S25FL064A,S25FL128,S25FL256

SST:
SST25VF010,SST25VF10,SST25VF20,SST25VF020,SST25VF40,
SST25VF040,SST25VF80,SST25VF080,SST25VF16,SST25VF016,
SST25VF32,SST25VF032,SST25VF64,SST25VF064,
SST25VF0128,SST25VF128,SST25VF256

Saifun Semiconductors:
SA25C020,SA25F040，SA25F080，SA25F160，SA25F320,SA25F640, SA25F128, SA25F256

ST:
M25P10A M25PE10 M25P20 M25PE20 M25P40 M25PE40 M25P80 M25PE80 M25PX80 M25P16 M25PE16 M25PX16 M25P32 M25PX32 M25P64 M25PX64,M25P128,M25P256

25P05VP

WINBOND:
W25X05 W25X10 W25X10A W25X10AL W25X10L W25X20 W25X20A W25X20AL W25X20L W25X40
W25X40A W25X40AL W25X40L W25P80 W25X80 W25Q80 W25X80A W25X80AL W25X80L W25P16 W25X16 W25Q16 W25P32 W25X32 W25Q32 W25X64 W25Q64 W25P64W25X128 W25Q128 W25P128W25Q256(WINBOND 25系列,全线产品支持)SANYO:

25FW20 25FW40 25FW41 25FW80

25 series storage chip BIOS chip
24C01 24C02 24C04 24C08 24C16 24C32 24C64 24C128 24C256 24C512 24C1024 24C2048

AT24C01 AT24C02 AT24C04 AT24C08 AT24C16 AT24C32 AT24C64 AT24C128 AT24C128-5V AT24C128-3V AT24C128A AT24C128B AT24C256-5V AT24C256-3V AT24C256A AT24C256B AT24C512-5V AT24C512-3V AT24C512A AT24C512B AT24C1024 AT24C1024A AT24C1024B

FM24CL01 FM24CL02 FM24CL04 FM24CL08 FM24CL16 FM24CL32 FM24CL64 FM24CL128 FM24CL256

HOLTEK:HT24C01  HT24LC01  HT24C02  HT24LC02  HT24C04  HT24LC04  HT24C08  HT24LC08  HT24C16  HT24LC16  HT24C32  HT24LC32  HT24C64  HT24LC64  HT24C128  HT24LC128  HT24C256  HT24LC256  HT24C512  HT24C1024

ISSI:IS24C01  IS24C02  IS24C04  IS24C08  IS24C16  IS24C32  IS24C64  IS24C128  IS24C256  IS24C512  IS24C1024

CATALYST:CAT24C01  CAT24WC01  CAT24C02  CAT24WC02  CAT24C04  CAT24WC04  CAT24C08  CAT24WC08  CAT24C16  CAT24WC16  CAT24C32  CAT24WC32  CAT24C64  CAT24WC64  CAT24C128  CAT24WC128  CAT24C256  CAT24WC256  CAT24C512  CAT24WC512  CAT24C1024  CAT24WC1024

MICROCHIP:24AA00  24C00  24LC00  24AA01  24AA014  24C01A  24C01C  24LC01  24LC21  24LCS21  24VL01  24AA02  24AA024  24AA025  24C02A  24C02C  24LC024  24LC025  24LC22A  24LC02B  24LCS22A  24VL02  24AA04  24C04A  24LC04  24AA08  24C08B  24LC08B  24AA16  24C16B  24LC16B  24AA32  24C32A  24LC32  24AA64  24FC64  24LC64  24AA65  24C65  24LC65  24AA128  24FC128   24LC128  24AA256  24FC256  24LC256  24AA512  24FC512  24LC512  24AA515  24FC515  24LC515  24AA1025  24AA1026  24FC1025  24FC1026  24LC1025  24LC1026
ROHM:BR24C01  BR24L01  BR24C02  BR24L02  BR24C04  BR24L04  BR24C08  BR24L08  BR24C16  BR24L16  BR24C32  BR24L32  BR24C64  BR24L64
RAMTRON:FM24C04A  FM24CL04  FM24C16A  FM24CL16  FM24C64  FM24CL64  FM24C256  FM24LC256  FM24C512

95series storage chip BIOS chip
M95010, M95020, M95040, M95080, M95160, M95320, M95640, M95128, M95256, M95512, M95010-W

250 series storage chip BIOS chip
25010, 25020 ,25040 ,25080, 25128, 25160, 25256, 25320, 25640

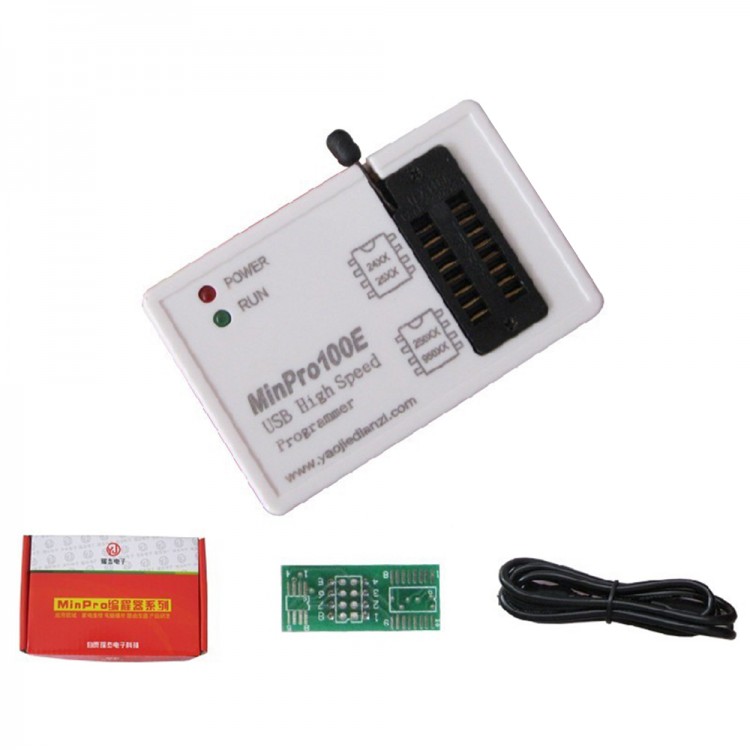

Package included:
- 1 x Programmer
- 1 x USB cable
- 1 x Conversion plate
