MiSTer Digital IO Board Dual SDRAM Suit Mister FPGA IO Board Accessories for Terasic DE10-Nano

MiSTer Digital IO Board Dual SDRAM Suit Mister FPGA IO Board Accessories for Terasic DE10-Nano

Digital IO Board Kit for DE-10 FPGA:
1. RetroScaler Digital I/O Board v1.2 (c)
The MiSTer FPGA Digital I0 Board v1.2 is an optional expansion that plugs on top of the DE10-Nano SoC for Terasic. The MiSTer I/0 Digital Board v1.2 includes a jumper for 3.3v or I0 selection on the User I0 port. Selecting I0 provides support for Sega Mega Drive / Genesis / Master System game pads using a SNAC adapter board.

2. MisTer USB Hub v2.1 Board
This is an optional add-on USB Hub for convenient USB device connections. With this board the MiSTer has an extra seven USB ports that fit snugly under the existing chassis. The USB Bridge seamlessly connects to the DE10-Nano SoC board without any additional wires.

3. Manual welding Double MisTer v2.9 128MB SDRAM Extra Slim Board for MisTer FPGA
This Extra Slim (XS-D) v2.9 board provides 128MB of SDR SDRAM memory for cores requiring a large (>512KB) of memory including cores for PSX, Neo Geo, Acorn Archimedes (Archie), Game Boy Advance, and SEGA MEGA CD

4. Mister RTC Real Time Clock Board for Mister FPGA
Some cores such as the ao486 (PC), for Archie (for AcornArcjimedes),for BBC Micro Master 128K, for Minimig (for Amiga), for MSX, for TSConf (for ZX Spectrum) that uses a clock, so mister is able to provide the real time for such cores with the addition of this addon board.

This addon board provides real time offline, the RTC board for the MiSTer FPGA is plugged into the DE10-Nano's LTC connector for Terasic.

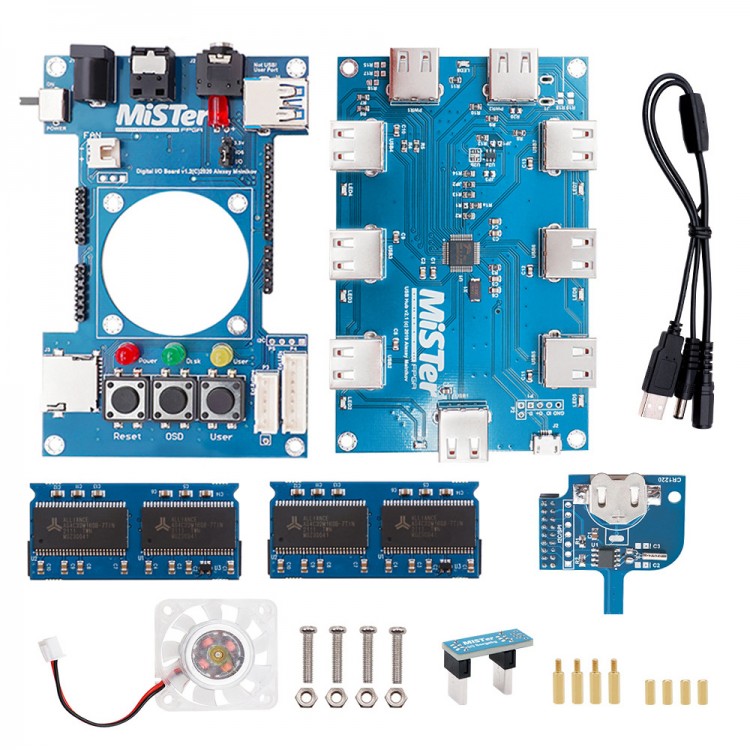

Package Included:
- 1 x MiSTer Digital IO Board
- 1 x Fan
- 1 x MisTer USB Hub v2.1 Board
- 2 x MiSTer SDRAM V2.9*2
- 1 x MiSTer RTC
- 1 x USB Bridge
- 1 x DC Splitter Cable (1 to 2)
- 8 x Golden Screws
- 4 x Silver Screws
- 4 x Silver Nuts
