Mister-FPGA 32MB Mister FPGA IO Board Kit USB Hub Expansion Accessories for Terasic DE10-Nano

Mister-FPGA 32MB Mister FPGA IO Board Kit USB Hub Expansion Accessories for Terasic DE10-Nano

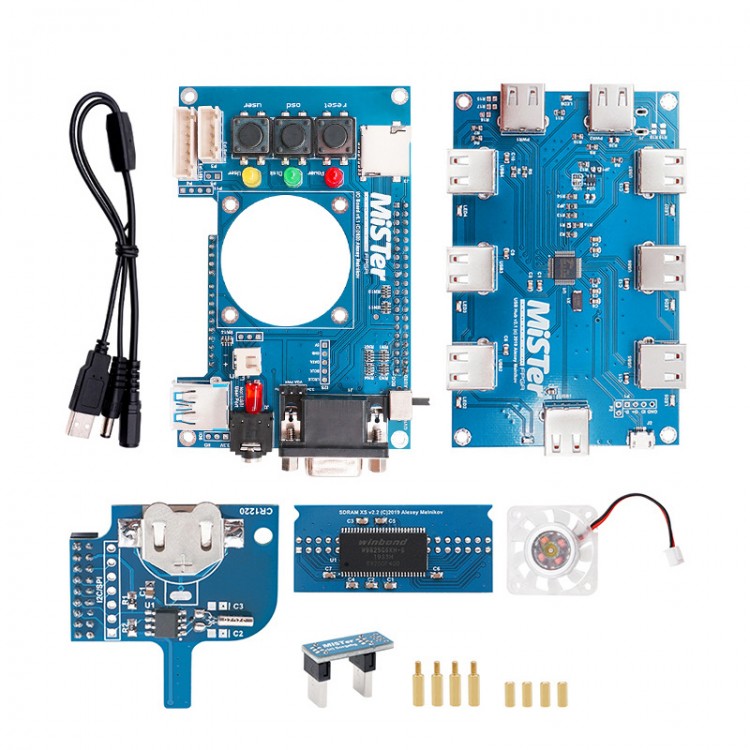

Package Included:
- 1 x Mister-FPGA-IO Board
- 1 x Mister-USB Hub Board
- 1 x Mister-SDRAM Board
- 1 x Mister-RTC Board
- 1 x USB Bridge
- 1 x DC Splitter Cable (1 to 2)
- 1 x Fan
- 8 x Screws

Mister IO Board V6.1:
The MiSTer IO Board is an optional expansion that plugs on top of the board for Terasic DE10-Nano SoC. It adds the following features to the MiSTer Platform:
- VGA Connector. Check Analog video output compatibility
- 3.5mm Audio Jack with TOSLink
- 3 Buttons
- 3 Status LEDs
- Secondary SD card (for some cores)
- FAN for cooling the FPGA
- Expansion connector (in the form of USB 3.0 connector, but it's not USB!)
- Additional connectors to integrate the MiSTer into cases
- Size: 11 x 7.4 x 2.5cm/4.3 x 2.9 x 1"
- Weight: 45G/0.1LB

Mister-USB Hub V2.1:
This is an optional add-on USB Hub for convenient USB device connections. With this board, the MiSTer has an extra seven USB ports that fit snugly under the existing chassis. The USB Bridge seamlessly connects to a DE10-Nano SoC board without any additional wires.

Features:
- 7 USB A interfaces (Slave)
- 2 USB A interfaces (Power)
- 1 USB micro interface (Host)
- Have the VBUS control
- Support the Official Mister FPGA metal case
- Weight: 70G/0.2LB
- Size: 11 x 7 x 1.5cm/4.3 x 2.8 x 0.6"

Extra Slim v2.2 Board (SDRAM XS v2.2):
This Extra Slim (XS) v2.2 board provides 32MB of SDR SDRAM memory for cores requiring a large (>512KB) of memory. Although the DE10-Nano has built in DDR3 RAM, it has a high latency and is not suitable for the timings required of retro EDO DRAM. So if a core requires precise memory timings, then the onboard DDR3 cannot be used.All my Extra Slim (XS) SDRAM boards have been checked under a microscope to ensure no solder bridges are present, then each board is tested at 150Mhz for at least half an hour. Every one of my boards uses the higher quality chips for Winbond, high quality capacitors for KEMET are used on each board.You can be confident knowing each Extra Slim (XS) v2.2 SDRAM board has been tested for over half an hour at 150MHz using the SDRAM Board Test Service Core. I also test each with a number of console cores in games to ensure no issues are present.

Features:
- Suitable For Terasic DE10-Nano FPGA Board
- Winbond W9825G6KH-6 Chip
- High Quality Capacitors for KEMET
- Tested For Over Half An Hour at 150MHz
- MiSTer IO Board Compatible
- Size: 5 x 2.3 x 0.7cm/2 x 0.9 x 0.3"
- Weight: 10G/0.02LB

Mister RTC V1.3 Real Time Clock Board for Mister FPGA:
This Extra Slim (XS-D) v2.5 board provides 128MB of SDR SDRAM memory for cores requiring a large (>512KB) of memory including the core for Neo Geo. Although the DE10-Nano has built in DDR3 RAM, it has a high latency and is not suitable for the timings required of retro EDO DRAM. So if a core requires precise memory timings, then the onboard DDR3 cannot be used.Every one of my boards uses the high quality Alliance memory paired. You can be confident knowing each 128MB SDRAM Extra Slim (XS-D) v2.5 board has been tested for over an hour at 140 MHz . I have also tested each with cores for Neo Geo console, Acorn Archimedes (Archie), Game Boy Advance, and for Sega Mega CD and in games for Neo Geo which require a 128MB module to play this ensures no issues are present.

Features:
- Suitable For Terasic DE10-Nano FPGA Board
- 128MB SDRAM Capacity
- 100% Of The ROM Library Playable For Neo Geo
- Alliance Memory AS4C32M16SB-7TIN Chips
- MiSTer IO Board Compatible
- Fully Assembled & Tested
- Size: 3.7 x 3.5 x 1cm/1.5 x 1.4 x 0.4"
- Weight: 5G/0.01LB
