Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $25.73 | $25.20 | $24.41 | $23.36 | Contact US |

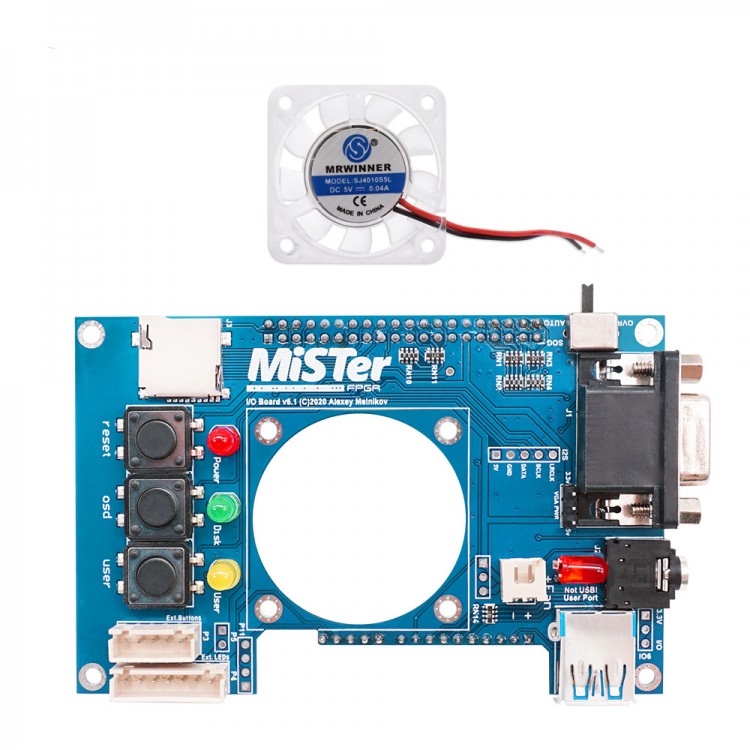

Mister-FPGA-IO Board MiSTer FPGA IO Board V6.1 with Fan Accessories for Terasic DE10-Nano DIY
MisTer IO Board V6.1:
The MiSTer IO Board is an optional expansion that plugs on top of the Terasic DE10-Nano SoC. It adds the following features to the MiSTer Platform:
- VGA Connector. Check Analog video output compatibility
- 3.5mm Audio Jack with TOSLink
- 3 Buttons
- 3 Status LEDs
- Secondary SD card (for some cores)
- FAN for cooling the FPGA
- Expansion connector (in the form of USB 3.0 connector, but it's not USB)
- Additional connectors to integrate the MiSTer into cases
Package Included:
- 1 x MisTer IO Board V6.1
- 1 x Fan
