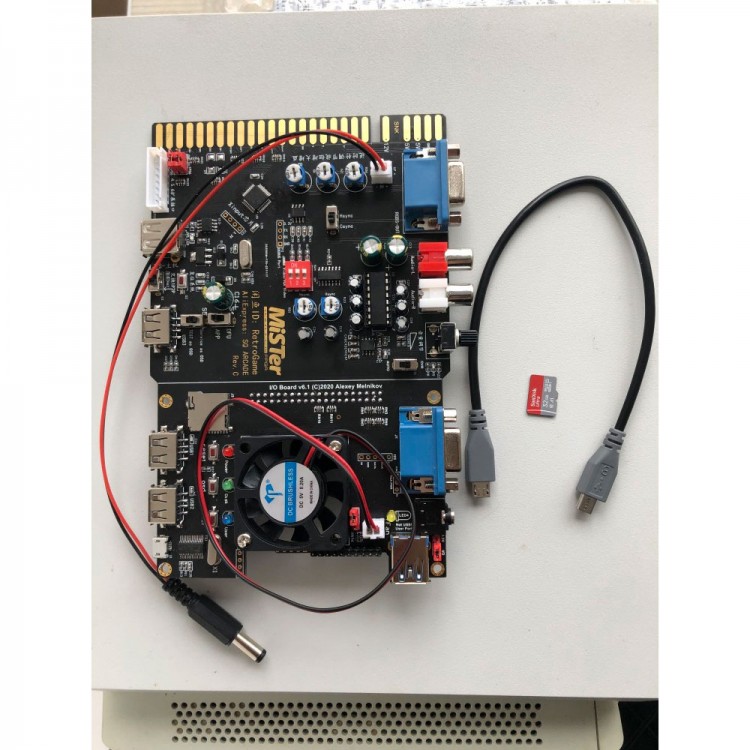

MiSTer FPGA MiSTer to JAMMA/JVS Expander Retro Video Game Converter Board MiSTer JAMMA IO Board
Description:
MiSTer to JAMMA/JVS expander, MiSTer FPGA MiSTer JVS/JAMMA to DB15 adapter board is compatible with JVS/JAMMA frame to connect MiSTer.
Support MiSTer FPGA access to all JVS arcade frames:
- Support for Sega nc, nnc.
- Support for vewlix.
- Support all arcade machines controlled by jvs io, such as for SEGA, NAMCO, TAITO, etc.
At the same time, all arcade machines with JAMMA interface are also supported to be transferred to MiSTer, and the video gain can be adjusted.
Mode 1: JAMMA/JVS is connected to two Xinput controllers and recognized by MiSTer.
Mode 2: In conjunction with the SNAC DB15 expansion board. JAMMA is transferred to the SNAC DB15 to directly control the FPGA game core, with zero delay, exactly the same as the base board, and provides RBF core firmware that supports DB15 mode and MiSTer main program that supports setting DB15 mode.
Lead out 4.5.6 key extension interface of 1p2p.
JVS protocol decoding and Xinput gamepad are implemented by using 32-bit processor high-performance chips.
Package Included:
- 1 x Board
