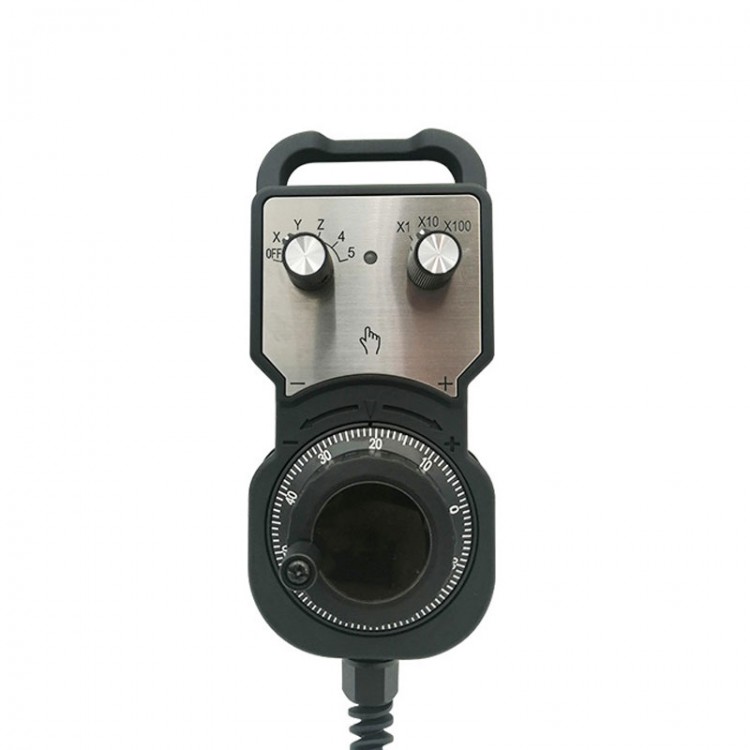

• MK002-100-5L 5-Axis 5V 100PPR Manual Pulse Generator CNC MPG CNC Pulse Generator for Siemens System

MK002-100-5L 5-Axis 5V 100PPR Manual Pulse Generator CNC MPG CNC Pulse Generator for Siemens System

Availability: In stock, usually dispatched in 1 business day

  • Price:$135.81
  • Price in reward points: 1358 Reward Points: 14
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $133.09 $130.38 $126.30 $120.87 Contact US
Quantity:

MK002-100-5L 5-Axis 5V 100PPR Manual Pulse Generator CNC MPG CNC Pulse Generator for Siemens System

Description:

It is a 5-axis manual pulse generator. Using advanced internal devices, pulses of the CNC MPG are more stable. Thus, it is suitable for teaching CNC mechanical work origin setting and other actions. In addition, it is also widely used in printing machinery and systems currently available on the market, except PLC. It is designed without a soldered plug.

MK002-100-5L:
- Signals (A, B, -A and -B), voltage (5V) and pulse (100PPR)
- For Siemens system
- Attention: The voltage used by its encoder for Siemens system is DC5V. Wrong voltage or wiring will make the encoder burned.

Features:
- Compact structure, good hand feel, sealed housing and complete accessories
- With strong magnetic for adsorption and hook support
- Dropping and wear resistance: stainless steel panel and dropping-resistant imported materials are used. The font of its encoder is clear and wear-resistant, and it does not fade
- High protection level: Due to its main body with a sealed shell, it can be used in a harsh environment, with stable performance

Product Information:
- Product specifications: MK002-100-5L
- Dimensions: 138 x 72 x 34mm/5.4 x 2.8 x 1.3"
- Core device: Original pulse (5V 100PPR) for NEMICON
- Band switch: Imported from Taiwan (for ALPS) (axis switch: OFF, X, Y, Z, 4 and 5; resolution switch: X1, X10 and X100)
- Oil-resistant spiral cable: Stationary 1.6m/5.2ft. Straightened 5.5m/18ft
- Adsorption method: with independent strong magnetic for adsorption (patented)
- Accessories: including high-grade hook, oil-resistant spiral cable and instruction manual
- LED visible indicator: Green
- Immunity standard: EN50082-2
- Warranty: 12 months

Package Included:
- 1 x Set of Manual Pulse Generator

Note:
- The delivered pulse generator is 5-axis. If you need one with a 6-axis, 7-axis or 8-axis switch, please contact us before purchasing. Thank you!
