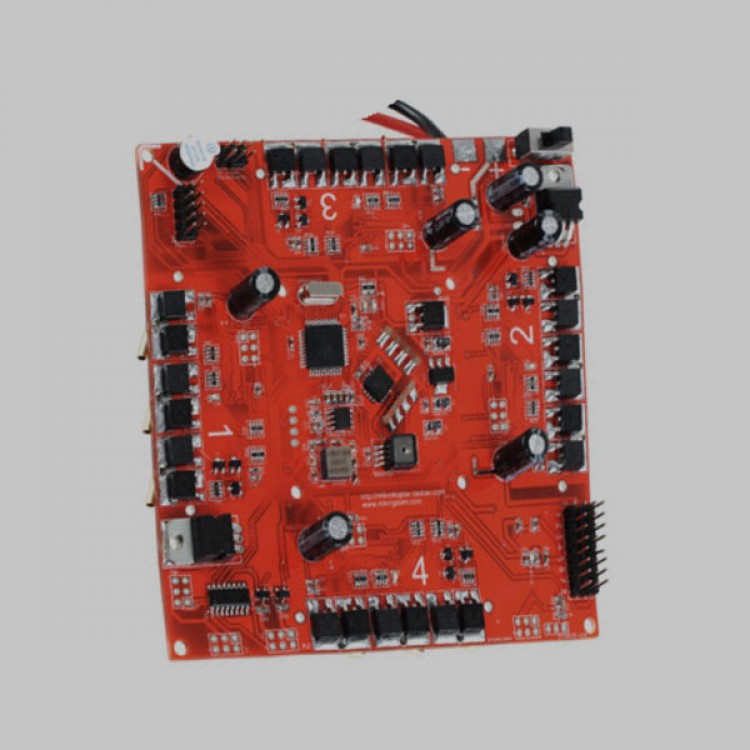

MK2.0 Integrated Control Board 4 ESC for Quadcopter

- Size of the board:12*12*2CM
- Weight of the board:52g
- Max current:15A
- Connect to the motor: 2.0mm banana plug
- Function:incloud 4 ESCs ,a PPM  and a MK FC2.0 .
- Can use it to control the quadcopter straight.
- If want to control the hexrcopter or the octocopter,you need add a two of four ESCs only.
- Have the connect like the MK FC2.0.
- max. 4s supply
- heat dissipation of the ESC is better.
- No any I2C Communication error
- Support the MK NAVI,GPS and Compass
- Balance control:high-quality gyroscope (MEMS technology ，ADRXS610) from Analog Devices, 3 axial accelerometer,automatic balance aircraft flight.Ability of high-performance automatic balance
- Height control:by pressure sensor MPXH6115A,automatically lock the control precision of plus or minus one meter
- PTZ control: with two-axis gyro-stabilized PTZ control functions, the head of the roll and pitch control
- Camera Shutter Control: Remote Control Camera Remote expansion
- Low Voltage Alamr: You can set alarms for each section of lithium voltage, automatic identification number of battery cells. Below the set voltage alarm, voltage detection accuracy 0.1v
- Low Voltage offer: You can set alarms for each section of lithium voltage, automatic identification number of battery cells. Below the set voltage alarm, voltage detection accuracy 0.1v
- Expansion feature: GPS positioning system can be upgraded to achieve a key to go home, let go auto hover, semi-automatic flight, ground station automatic flight functions. Support the upgrade of six rotor eight rotor controller
