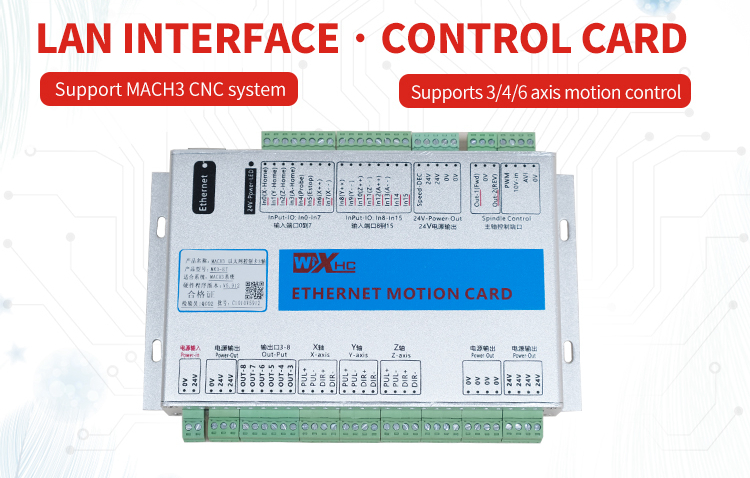

MK3-ET 3 Axis Mach3 CNC Controller Board Ethernet Motion Card Ethernet Port CNC Motion Controller
Features:
- Ethernet interface motion control card for Windows XP, 7, and 10 systems
- 4-channel differential signal output: pulse + direction
- Maximum 2000KHZ pulse output for each axis, supporting stepper motors and servo motors
- 1 channel analog output: spindle supports frequency converter, stepper driver, and servo driver
- 4-way encoder feedback input to realize closed-loop control
- Has 16 input ports and 8 output ports

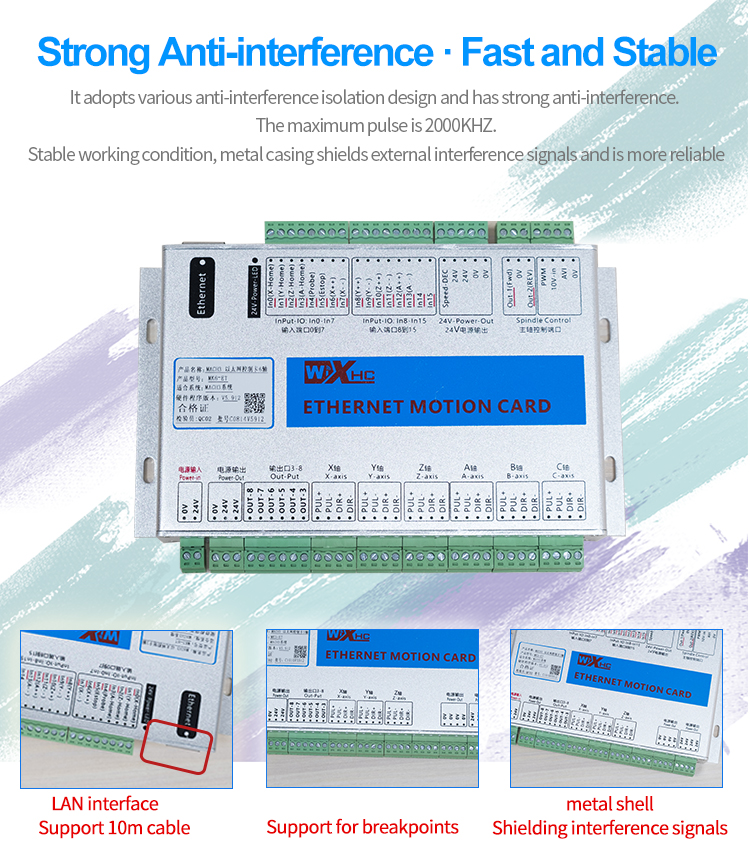

- All IO input ports and output ports are designed with optocoupler isolation, featuring strong anti-interference ability and stable performance
- With working indicator light, it is convenient to know the working status of the control card

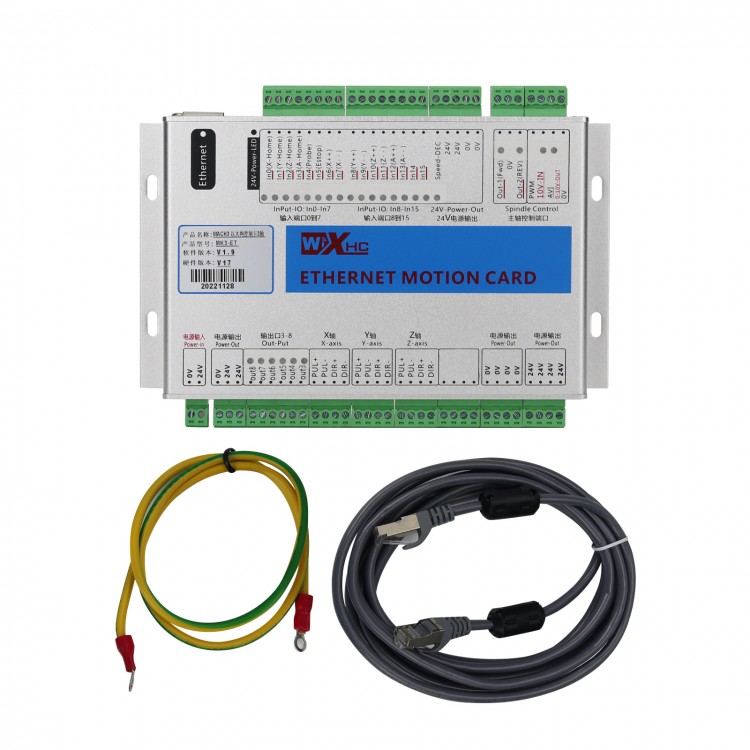

Package Included:
- 1 x Control Card
- 1 x Driver CD
- 1 x LAN Cable
- 3 x Manuals
Note:
- Other items pictured are not included, for demonstration purposes only. Thank you for your understanding!
