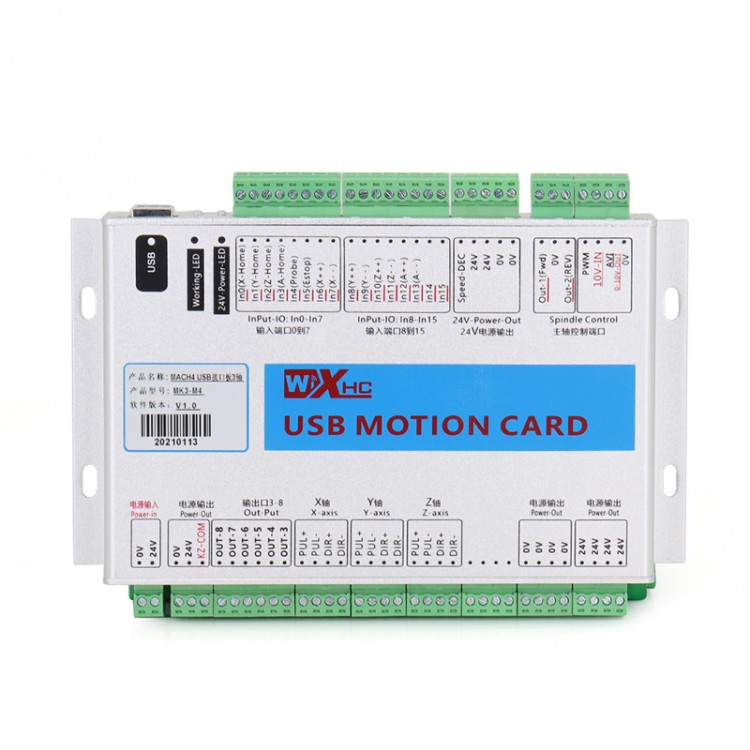

MK3-M4 MACH4 3-Axis CNC Breakout Board 2000KHz USB Motion Card for Engravers Lathe Machines
Features:
- Support Mach4 Hobby and operating system for Windows
- Support spindle speed feedback function and axis differential output
- USB does not need to install drivers; suitable for all Windows versions; plug and play
- Fully support USB hot swap, monitor USB connection status at any time. When the Mach4 is working, unplug a USB cable and then plug it back in, the Mach4 can still be connected normally
- Support up to 3-axis linkage, including jog 3-axis linkage
- With 2000KHz pulse output, it supports servo motor and stepper motor
- Its status indicators can indicate various statuses, including USB connection status, Mach4 connection status and running
- With 16 input ports and 8 output ports; supports extended input and output ports
- All IO ports are fully isolated, with strong anti-interference ability and stable performance
- Support spindle PWM speed control output; support spindle pulse and direction output; support spindle 0 to 10V analog voltage speed control output
- Applications: for mould processing, woodworking industry, 3C industry, parts processing and advertising production
Technical Parameters:
Output Control (direction + pulse):
- Drive current: Isolated open circuit output: 5V, 20mA
- Drive mode: pulse and direction output
- Output frequency: 2000KHZ
- Number of axes supported: MK3-M4 for 3-axis
Spindle Speed Control Output:
- Analog speed regulation voltage output: 0-10V
- PWM output: 5V, 1KHZ, duty cycle: 0 to 100%
- Pulse + direction output: minimum output frequency 15HZ; maximum output frequency 4KHZ
Other Parameters:
- 8 Output ports: drive current (isolated open-circuit output maximum current 50mA; maximum drive voltage: 25V, active low)
- 16 Input ports: Input current (isolated input: 5mA, maximum voltage 25V)
- Control Signal: Differential Signal
- Control Signal Type: Position Control
- Tool setting type: fixed tool setting and floating tool setting
- Support tool-path file format: *.nc; *.tap; *.txt
- Supported drive type: stepper/servo drive
- USB interface: Compliant with USB2.0 standard, supports full-speed transfer mode
- Software language: Chinese/English
Package Included:
- 1 x Motion Card
