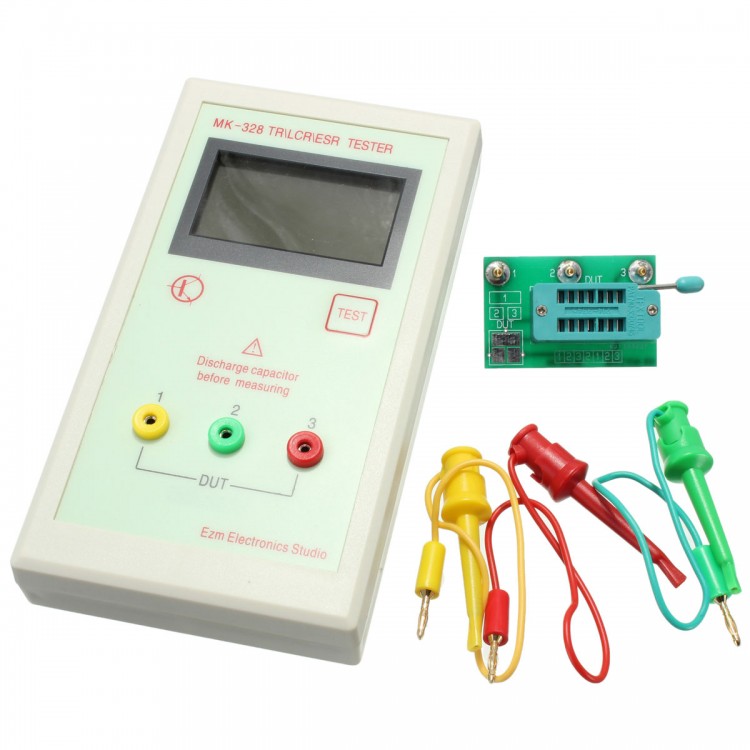

MK328 LCR ESR Tester Transistor Inductance Capacitance Resistance Meter Portable

MK328 LCR ESR Tester Transistor Inductance Capacitance Resistance Meter Portable

Description:
Multi-functional transistor tester for automatic detection of NPN and PNP transistors, N-channel and P-channel MOSFETs, JFETs, diodes, double diodes, Thyristors and Triacs.

Features:
- Operates with ATmega328 microcontrollers.
- Digital LCD backlight display for easy readings, can display measured data and graphics.
- One key operation with automatic power shutdown.
- Can be powered by 9V battery(not included).
- With shell and bracket, portable and convenient for use.
- Automatic detection of NPN and PNP bipolar transistors, N-Channel and P-Channel MOSFETs, JFETs, diodes, double diodes, Thyristors and Triacs.
- Automatic detection of pin layout of the detected part.
- Measure of current amplification factor and base-emitter threshold voltage of bipolar transistors.
- Detection of the protection diode of bipolar transistors and MOSFETs.
- Measuring of the Gate threshold voltage and Gate capacity value of MOSFETs.
- Resistance measurement resolution is 0.1 ohms, 50M ohms can be measured.
- Up to two diodes are shown with symbol or symbol in correct order.

Notice:Before measuring capacitance, the capacitor must be discharged, otherwise very likely damage the meter.

Specifications:
- Display: 128*64 LCD Backlight
- Input Voltage: 9V
- Current: Approx. 20mA
- Power Supply: 1 * 9V Battery(NOT Included)
- Resistance Measurement: Max. 50MΩ
- Resistance Resolution: 0.1Ω
- Capacitance Measurement: 25pF~100mF
- Capacitance Resolution: 1pF
- Inductance Measurement: 0.01mH-20H
- Screen Size: 5 * 2.7cm / 1.97 * 1.06in
- Product Size: 15 * 8 * 3.5cm / 5.9 * 3.15 * 1.4in
- Product Weight: 188g / 6.65oz
- Package Size: Approx. 17 * 10 * 3.5cm / 6.7 * 3.94 * 1.4in
- Package Weight: 215g / 7.58oz
- Backlight Color:Green/White(delivered at random)

Package included:
- 1 * E1164
- 1 * Transistor Tester
- 3 * Test Cable
