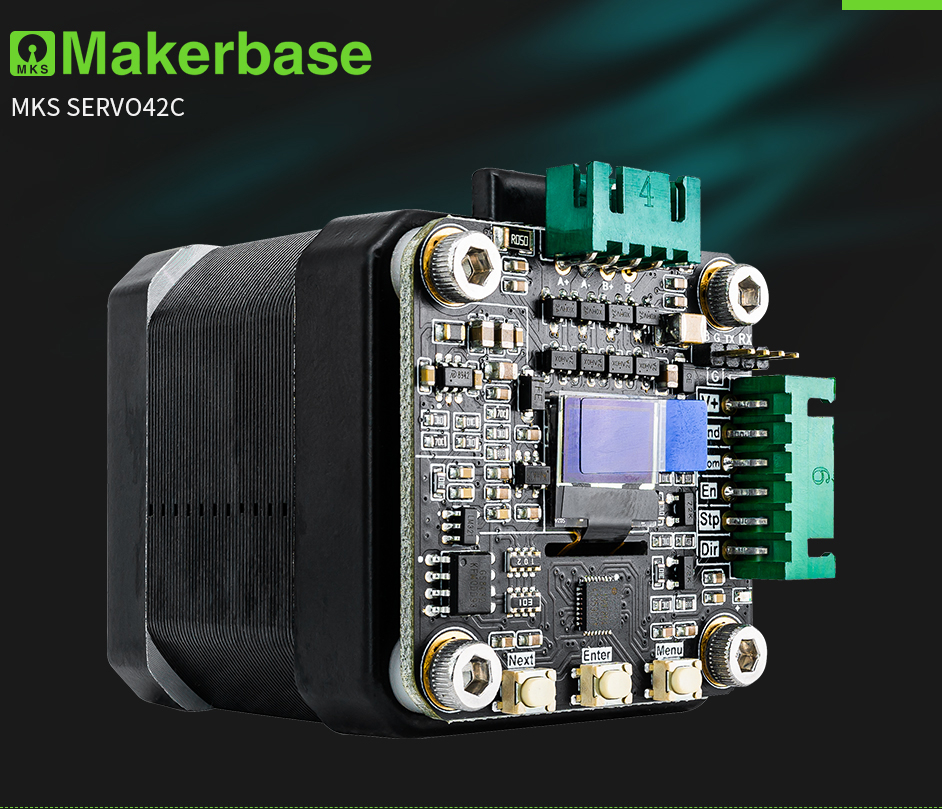

MKS SERVO42C 42 Closed-loop Stepper Motor Driver w/ Motor Featuring Quiet Operation Replacing TMC2209
Download Documents:
https://github.com/Macsrobase-tech/MKS-SERVO42C
Video Instruction:
https://www.youtube.com/channel/UC189pX0LyaWvKAQmRgy3Fdg/playlists
Motherboard Parameters:
- Board type: MKS SERVO42CV 1.0
- Microprocessor: high-performance 32bit processor for ARM
- Motor driver: 8 MOSFET to form dual H bridge driver
- Input voltage: 7V-28V

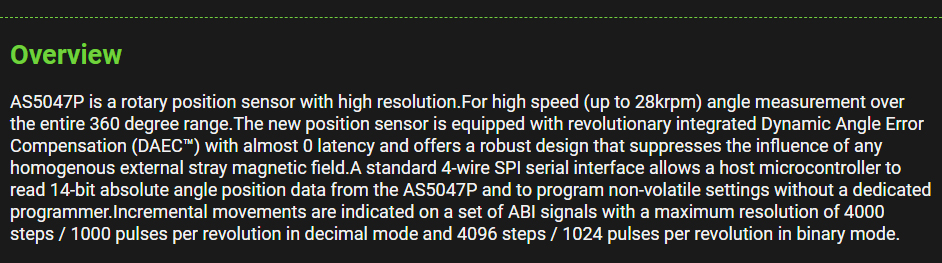

- Sensor: Industrial-grade 16384 line magnetic encoder of high precision
- Working current: 0-3000mA
- Subdivision: 1~256
- Closed-loop feedback frequency: torque loop 20KHz; speed loop 10KHz; position loop 10KHz
- Maximum speed: About 150-180mm/s for 3D printing; about 145-162 characters/min for writing machine
- Angle resolution: over 0.08 degrees

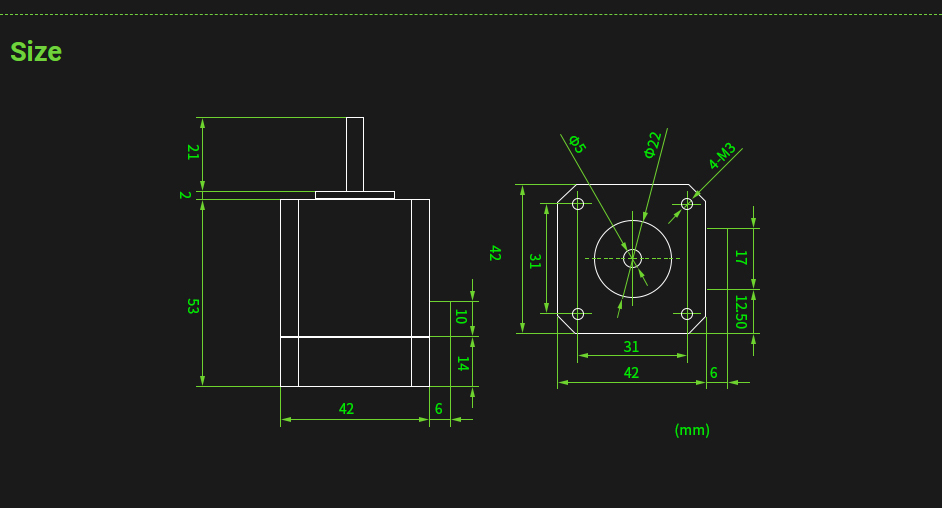

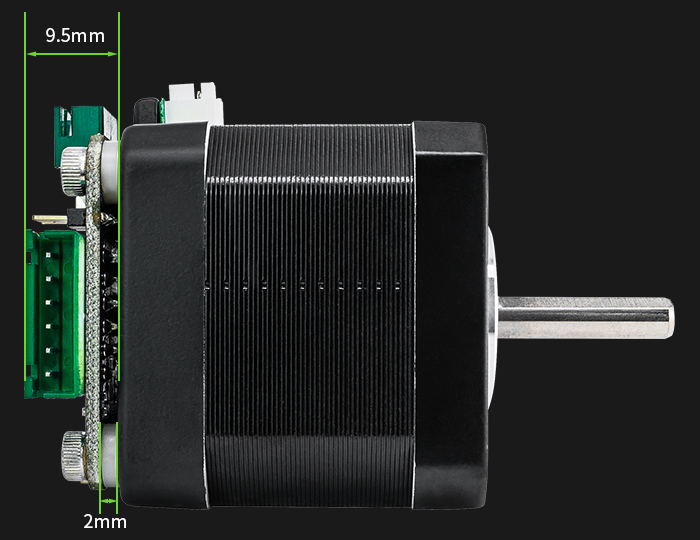

- PCBA size: 39 x 39 x 1.6mm/1.5 x 1.5 x 0.06"
Package Included:
- 1 x MKS SERVO42C (with 42 stepper motor)
- 1 x Motherboard adapter board
- 1 x Mainboard cable (60cm/23.6")
- 1 x PCBA to motor wire
Caution!
- Please mind the power polarity and drivers direction.
- Please don't plug drivers or motors on/off when power starts.
- Please disconnect all motors when adjust driver current.
