MKSESC 75200 V2 V-ESC75 200A ESC for Scooters Gliders Radio-controlled Cars Model Aeroplanes
Warm Tips:
- Phase filtering is not available for MKSESC 75200 V2!

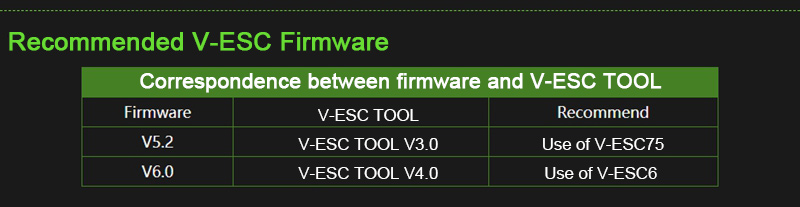

- Please turn off the phase filter function and choose "false" in V-ESC_tool when use firmware version on or above 5.3 (V-ESC_TOOL 3.01). Without turning off the phase filter will result in ESC damage. Please do not restore the default parameters when using the wizard interface.
Firmware Upgrade Video:
https://www.youtube.com/watch?v=3-lvTJFiX2w
Product Description:
The V-ESC75 series has larger voltage and current than V-ESC6 and V-ESC4. Like V-ESC6, it has three-phase splitter and adjustable current/voltage filter, which can detect any connected motor more accurately and reliably. The limit speed of MKSESC 75200 V2 is up to 150000 ERPM.

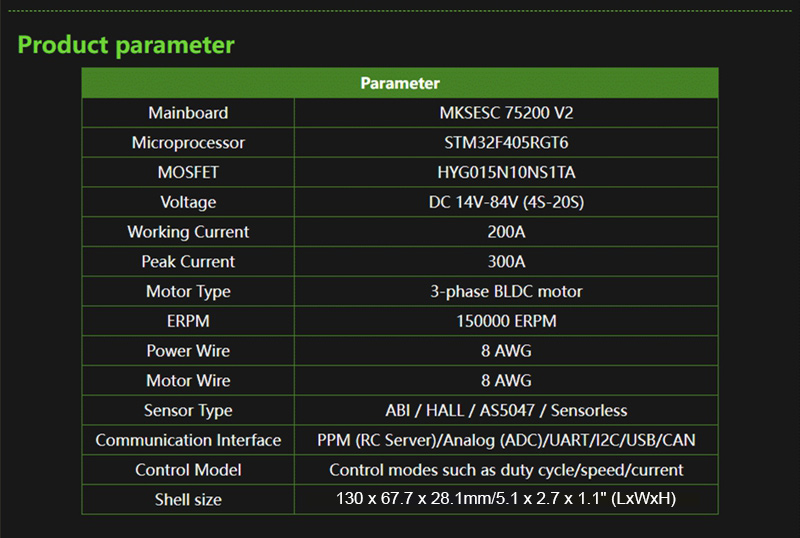

Features:

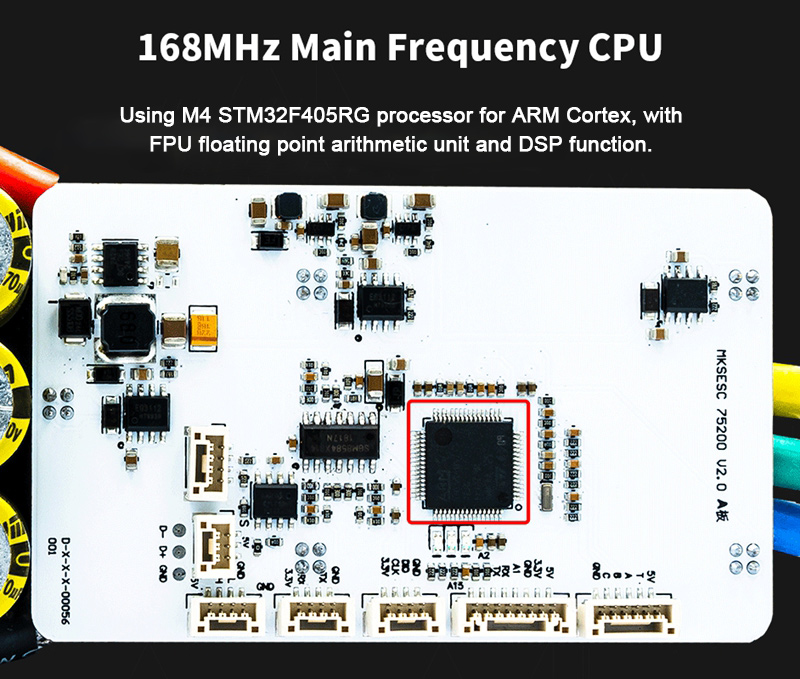

1. Use M4 STM32F405RG processor(for ARM Cortex) with FPU floating point unit.

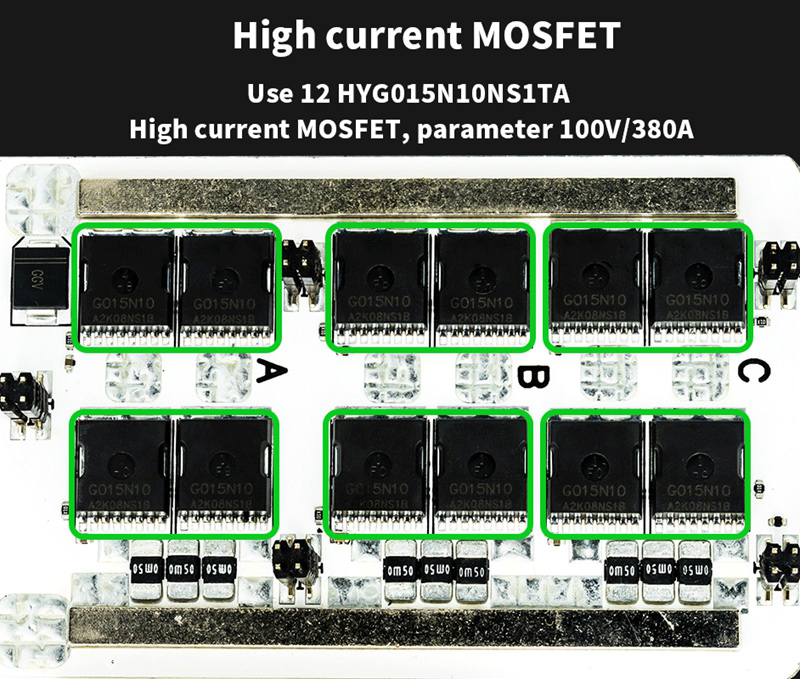

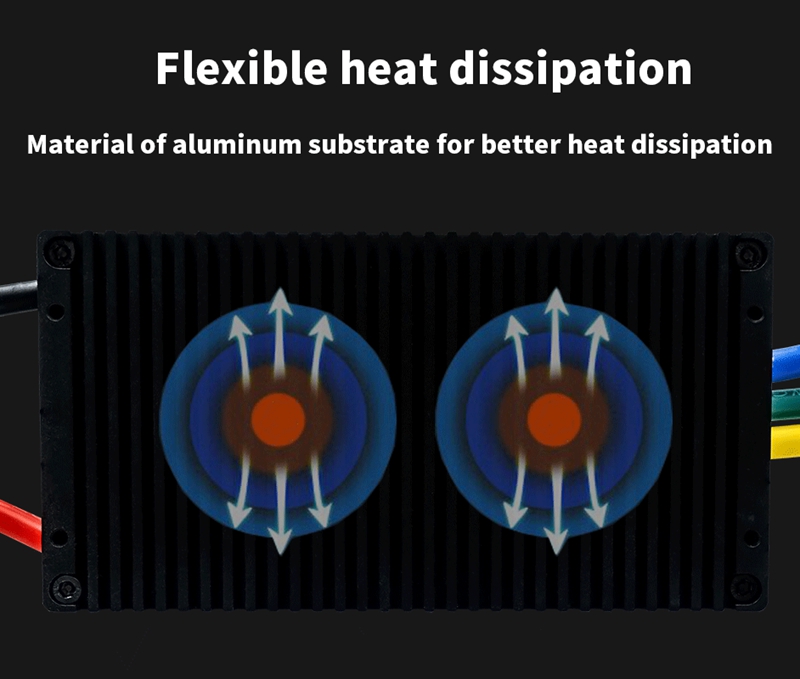

2. Continuous current is up to 200A (duration depends on external heat dissipation) and maximum current is 300A.
3. Limit speed of electric adjustment up to 150000 ERPM.
4. Built-in USB interface, V-ESC TOOL connection with PC device to complete all configuration.
5. With UART interface, it can communicate with mobile device (for Android) through Bluetooth module to monitor and configure in real time.
6. Supports sensorless and sensorless operation.
7. Support a variety of control modes: duty cycle control and speed control and current control.

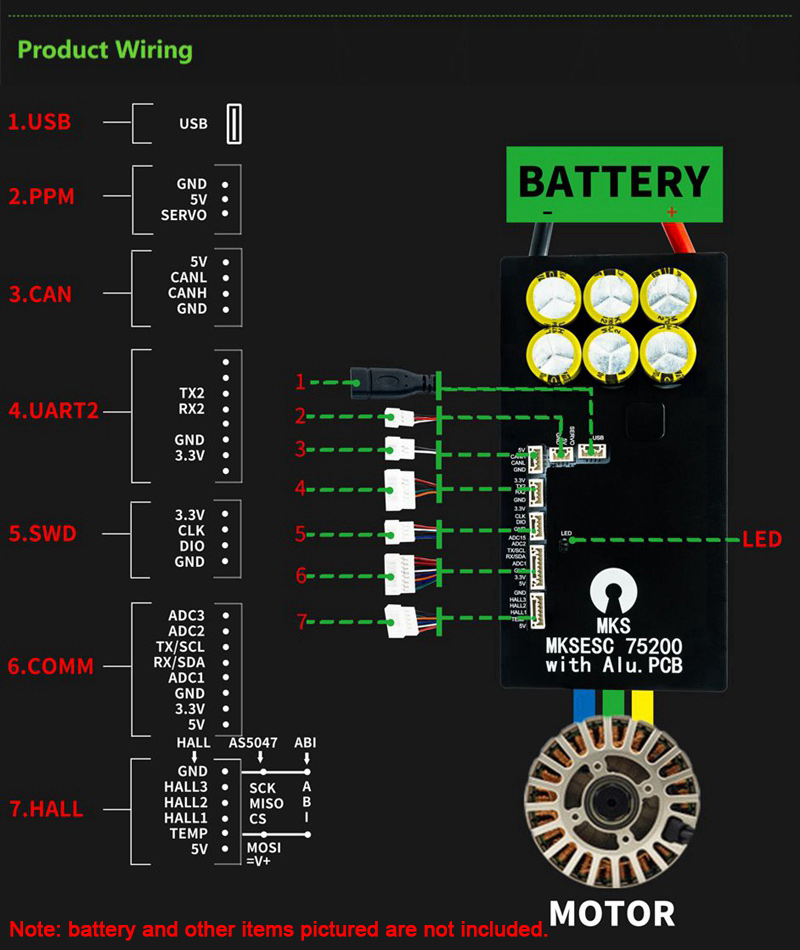

8. Support a variety of control motor interfaces: PPM signal (RC server), Analog, UART, I2C, USB and CAN bus.
9. It has excellent soft strategy, soft compensation strategy for current limit and softback off strategy for RPM restriction.

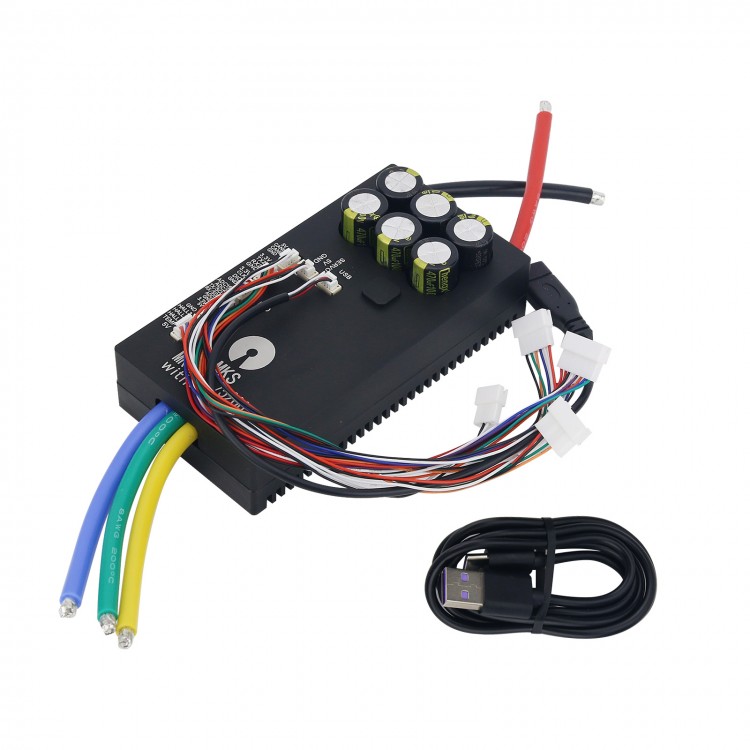

Package Included:
- 1 x MKSESC 75200 V2
- 1 x Type-C USB Data Cable
- 1 x User Manual
Note:
- Battery and other items pictured are not included, for demonstration purposes only. Thank you for your understanding!
- Top aluminum alloy cover is optional. Extra cost should be paid for the cover.
