MLA-30+ Active Loop Antenna Shortwave 500KHz-30MHz with 1.2M Adapter Cable For TECSUN S2000

MLA-30+ Active Loop Antenna Shortwave 500KHz-30MHz with 1.2M Adapter Cable For TECSUN S2000

Description:
This version is specially improved for radio enthusiasts. Compared with the standard version, its gain has been improved and it is suitable for indoor use. The output interface is changed from the original SMA connector to a 1.2m 3.5mm common radio antenna cable or to a special adapter cable for TECSUN S2000.

The MLA-30+ loop antenna is a popular broadband antenna. It is an effective antenna for short-wave listeners (SWL) and amateur radio enthusiasts (HAM) to receive medium-wave and short-wave in limited living areas. Frequency covers from 500KHz to 30MHz. Excellent directionality can help reduce noise and improve SNR ratio, and can dig out weak signals that are overwhelmed by noise when conventional antennas are received.

The MLA-30+ loop antenna can be easily installed on balconies, rooftops, and other places, featuring compact size.

Another advantage of the MLA-30+ loop antenna is that it is directional. By rotating the antenna, the antenna's dummy point is aligned with the interference signal so that the specific near-field interference can be minimized.

Antenna Details:
* Do not connect it to the transmitter as it will cause the preamplifier to be damaged.
* Local radiation noise suppression up to 30 dB compared to long-haul antennas
* 8-shaped patterning provides deep dummy points to further reduce interference
* Main coverage: 500KHz-30MHz
* USB power supply makes it convenient to be powered. Self-contained feeders simplify the installation process.
* Simple structure enables easy installation to your balcony, rooftop and other locations.
* No manual adjustment required.
* Modular design for easy installation and maintenance.
* Stainless steel ring-shaped vibrator makes it easy to install and to maintain.
* Rainproof shell for long-term outdoor uses.

S2000 Adapter Cable:
This cord is used to connect MLA-30+ loop active antenna to the radio shortwave antenna interface for TECSUN S2000. The length is 1.2 meters, one end is SMA and the other is BNC. It can also be used for S8800 and other receivers with BNC interface.

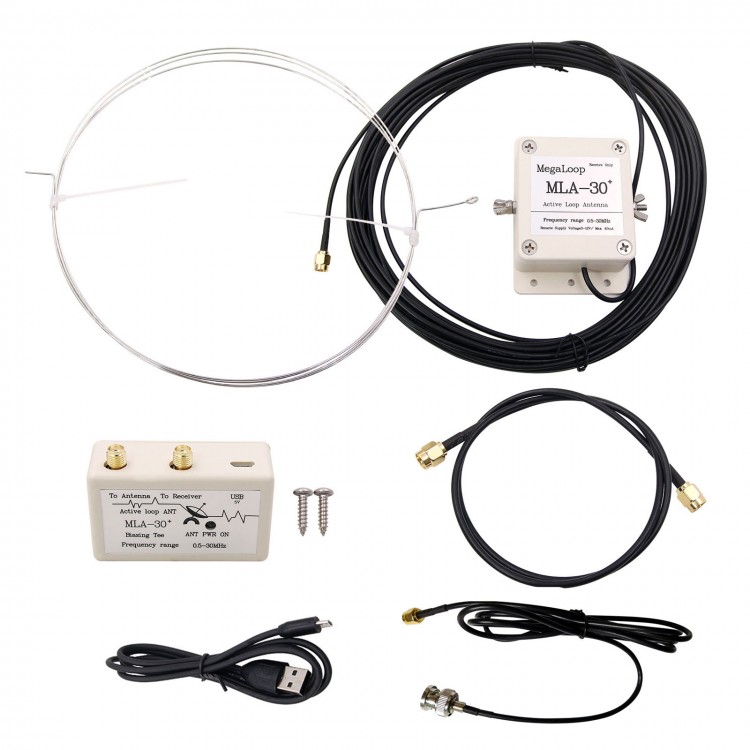

Package Included:
- 1 x Antenna Amplifier with 10M Feeder Cable
- 1 x Stainless Steel Vibrator
- 1 x Bias Power Supply
- 1 x USB Cable 0.8m
- 1 x SMA Jumper Cable 60cm
- 2 x Stainless Steel Fixing Screws
- 1 x 1.2M Adapter Cable For TECSUN S2000

Note:
- Optional colors for bias power supply: Black, White. Please tell us the color you want when purchasing, or items will be delivered at random.
- Need to prepare a PVC tube in any diameter for support. Please pay attention to its strength. You can use existing bamboo poles, wooden poles also. Please not use metal rods.
