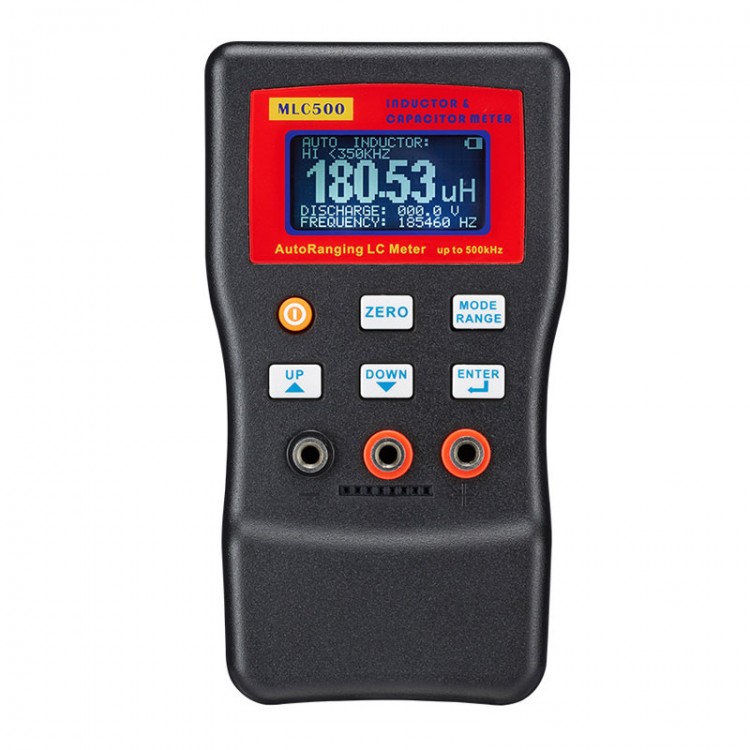

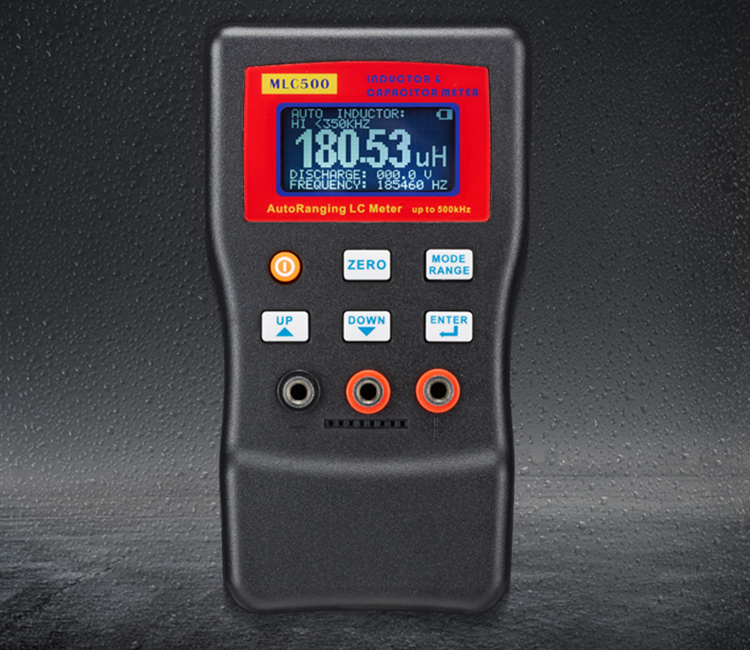

MLC500 Inductor & Capacitor Meter Anti-Burning High-Precision Automatic Ranging LC Meter 500KHz

MLC500 Inductor & Capacitor Meter Anti-Burning High-Precision Automatic Ranging LC Meter 500KHz

Features:
- Test capacitors and inductors
- Automatic range, manual range. Fully automatic range design. Manual switching of measurement capacitors and inductors
- Automatically adjust frequency
- Capacitor anti-burn
- ZERO button: Press this button to remove error caused by test lead, convenient and accurate testing of small value components
- Mini USB interface, DC 5V power supply
- Connect to computer
- High-resolution five-digit display. High-precision 1%. The highest resolution: capacitance 0.01pF, inductance 0.001uH. Minimum test value: capacitance 1pF, inductance 1uH
- High stability and large range test: capacitance 1pF-100mF, inductance 1uH-100H
- Applied in machinery manufacturing, automobile maintenance, medical industry, instrument testing, school experiment, engineering development, scientific research engineering, production line, electronic equipment
- Capacitor automatic discharge jack: before testing a capacitor, the red test lead can be inserted into the middle jack, clamp the capacitor and automatically discharge to prevent the capacitor main board from burning out

More Details:
- Automatic range. Press and release RANGE button, the first line of LCD will display "AUTO Capacitor, AUTO Inductor". In the automatic mode, the meter will automatically select an appropriate detection range.
- Manually switch the size of capacitance and inductance. Press UP/DOWN button and release it to switch to test large capacitance and large inductance, small capacitance and small inductance.
- Automatically adjust frequency. The meter uses LC oscillation and RC oscillation techniques to measure. LC is suitable for small capacitance and inductance measurement, RC is suitable for large capacitance measurement. For small capacitance and small inductance high frequency test, the test result is more accurate. Test the capacitance and inductance to automatically adjust the frequency.
- Automatic discharge function. The positive pole of the test lead is inserted into the red jack in the middle to automatically discharge before measuring a capacitor, and the discharge voltage will be displayed momentarily. (*The discharge voltage will be displayed instantaneously, such as DISCHARGE: 000.0 V)

Specifications:
- Model: MLC500
- Type: LC Meter
- LCR Testing Parameter: Main Parameter: L / C
- Testing frequency: C: 10 to 500Khz; L: 10 to 360Khz
- Testing Method: Automatically select LC and RC Oscillation
- Calibration: Power on to automatically calibrate with internal reference capacitor
- Testing voltage: ~1.5Vrms
- Test accuracy: L: 1% + 1-Digit; C: 1% + 1-Digit
- Test speed/Testing time (* vary on component value): <3times/s (e.g. 100mF Capacitor <30s)
- Range Selection: Automatically
- Zeroing: Open / short circuit
- Interface: Mini-USB (Virtual Com Port)
- LCD Display: 128x64 Dot Matrix LCD, with backlight
- Fuse Protection: 200mA
- Charging port: Mini-USB (500mA)

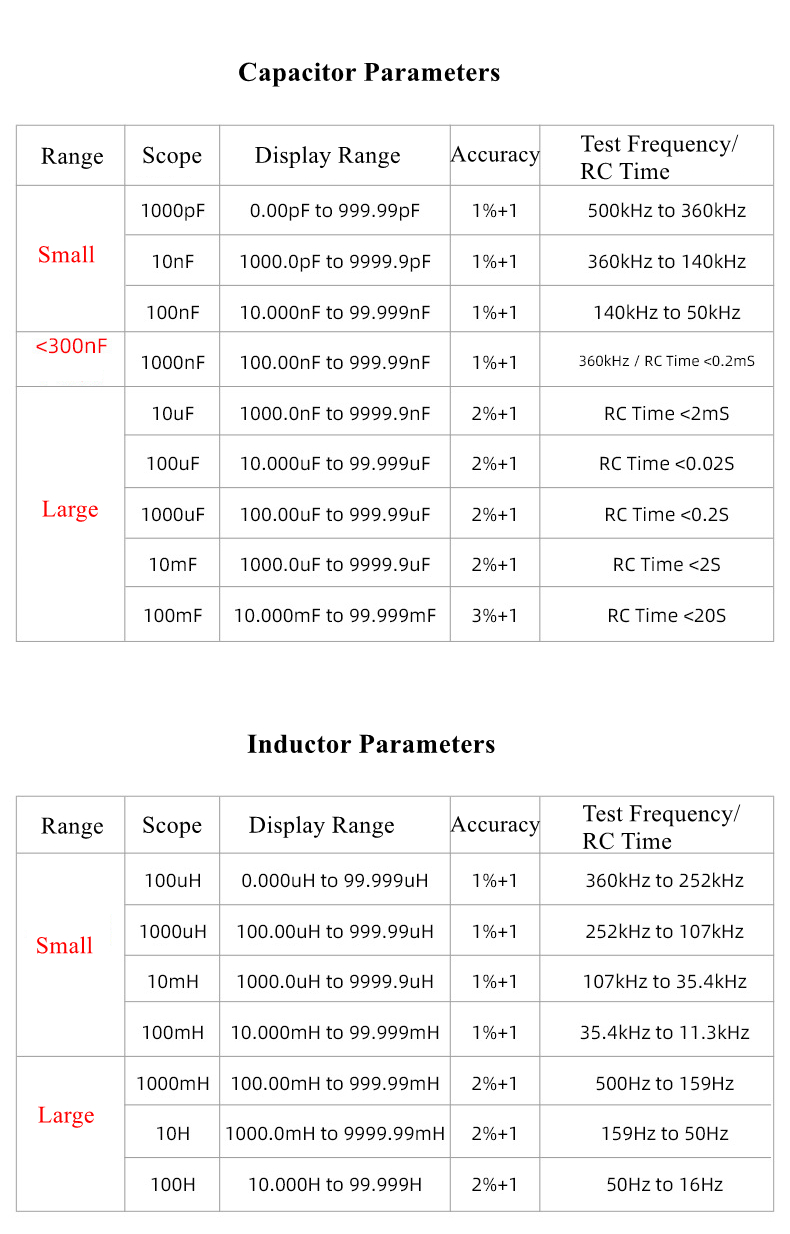

Display Range:
- C: 0.00pF～100.000mF
- L: 0.000uH～100.000H
- Hz (LC test frequency): 0 to 500000Hz
- S (RC test time): 0.000 to 99.999

Package Included:
- 1 x Main Unit MLC500
- 2 x Alligator Clips
- 1 x Data Cable
- 1 x Product Certificate
- 1 x Chinese-English Manual

Note:
- It is powered by 2pcs 1.5V AA batteries which are not included.
- SMD test clip to test chip capacitors is optional. If it is needed, please contact us. Thank you!
