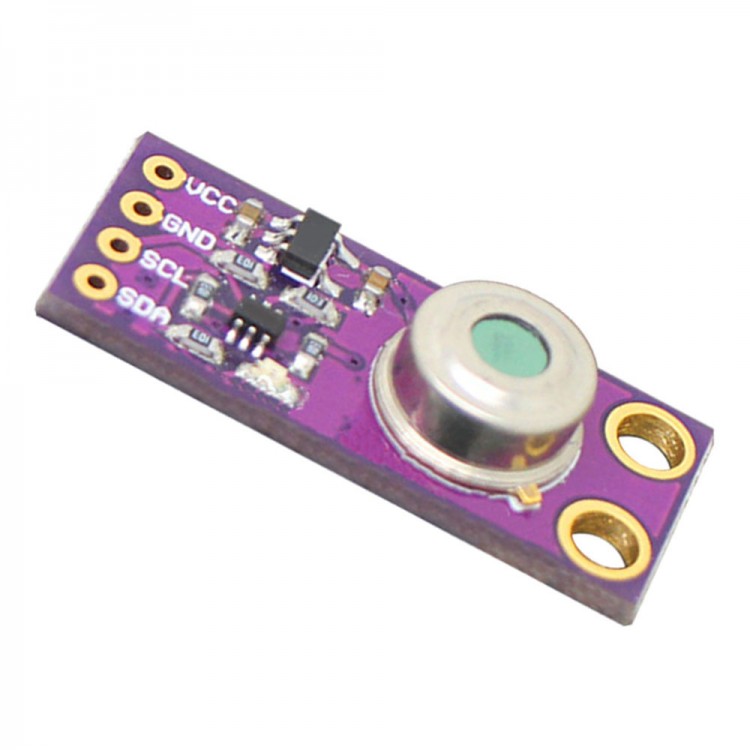

MLX90614ESF Sensor Infrared Temperature Sensor IIC Communication Module

MLX90614ESF Sensor Infrared Temperature Sensor IIC Communication Module

Feature:

High accuracy of 0.5°C over wide temperature range (0..+50 C for both Ta and To)
Medical accuracy of 0.1°C in a limited temperature range available on request
Measurement resolution of 0.01°C

FAQs :( for reference)
1. Need to add lens and other optical system on this sensor?
A: The sensor insert lens, no additional lens, can be used directly.

2, Does the sensor application circuit complex?
A: The sensor comprises a thermopile and the corresponding data processing chip, directly converted into a digital signal, using the MCU read, simple external circuit.

3, this sensor also needs to be calibrated it?
A: The sensor is has been professional blackbody calibrated, and can be used directly within the specified range.

4.the distance sensor can measure?
A: Measure the distance sensor is based on the size of the object distance ratio and heat source intensity . Example: The sensor object distance ratio 11.6: 1, meaning that for 10CM diameter ( Infrared Temperature Measurement FOV is generally circular ) of the heat source, the maximum distance is 116CM.
