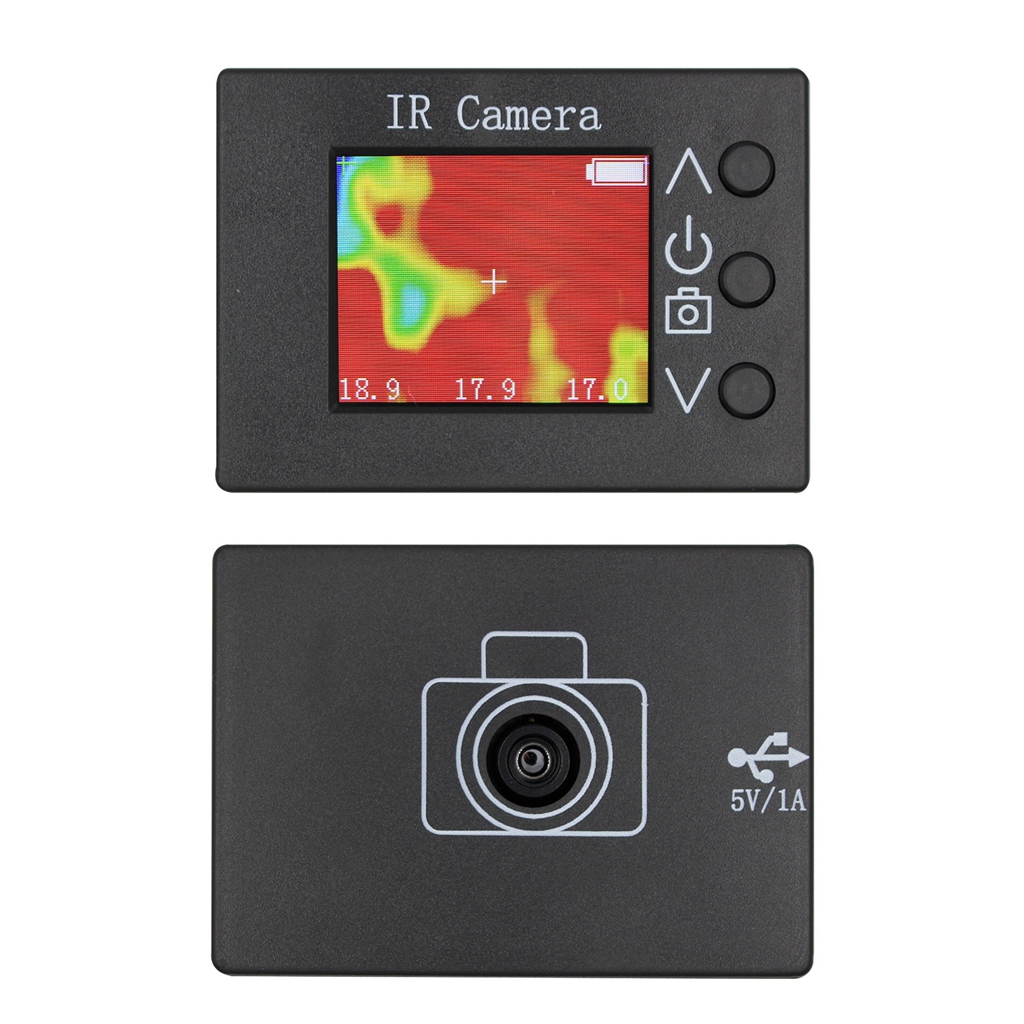

MLX90640 1.8-inch LCD Digital Infrared Thermal Imager IR Camera Sensor for Temperature Detection DIY

MLX90640 1.8-inch LCD Digital Infrared Thermal Imager IR Camera Sensor for Temperature Detection DIY

Description:
- This is a handheld multifunctional MLX90640ESF-BAB infrared sensor thermal imager with the characteristics of small size and light weight. Paired with a 1.8" TFT display screen, the data is clear at a glance. It can be used in various occasions and is an indispensable tool for home and industrial use.

Features:
- High refresh rate for real-time monitoring: The infrared thermal imaging camera boasts an impressive 8Hz refresh rate, delivering smooth and real-time temperature measurements. This high refresh rate ensures accurate and reliable readings, enabling users to monitor temperature changes instantly.
- Wide temperature measurement range for versatile applications: With a target temperature measurement range of -40°C to +300°C, this thermal imager is suitable for a wide range of applications. Whether you are inspecting electrical systems, HVAC equipment, or conducting building diagnostics, this device can handle various scenarios and objects with precision.
- Clear and informative display: The 1.8-inch TFT screen temperature sensor camera with a resolution of 160x128 provides a crisp and clear display. It not only shows the real-time thermal images but also highlights essential temperature data, such as the highest temperature, lowest temperature, and center point. This display feature enhances data interpretation and facilitates informed decision-making.
- Durability and protection: The handheld infrared thermal imaging camera features a high-quality plastic casing that provides exceptional protection for the tool. This durable construction ensures resistance to accidental drops, bumps, and other mishaps, making it reliable even in demanding working environments. The long-lasting build quality guarantees extended usage and reliability.
- Portability and convenient charging: With its compact size and lightweight design, this thermal camera is highly portable. You can easily carry it to any location, making it ideal for on-the-go inspections. Moreover, the device comes with a built-in large capacity battery and a USB power cable for convenient charging. Simply plug it in, and it will quickly recharge, ensuring uninterrupted usage and hassle-free operation.

Specification:

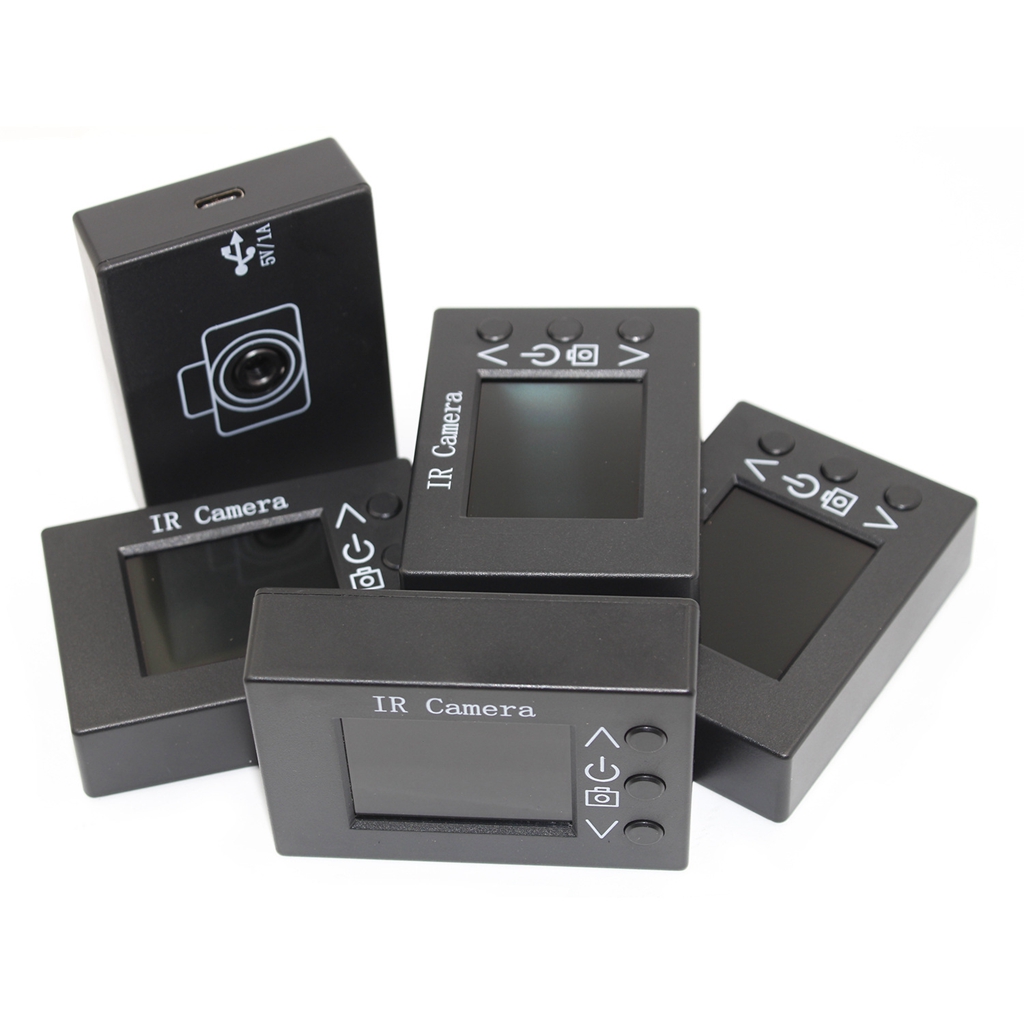

- Case material: ABS
- Style: Handheld
- Model: JM_MLX90640_CSB
- Use MLX90640ESF_BAB infrared sensor
- Resolution: 32 x 24
- Temperature measurement range: -40℃ ~ 300℃.
- Measurement accuracy: +/-2℃ (center area, 0 ~ 100℃).
- Operating temperature: 10℃ ~ 50℃
- Operating humidity: <=70%
- Refresh rate: 8HZ
- No calibration required
- Field of view: 55°x 35°

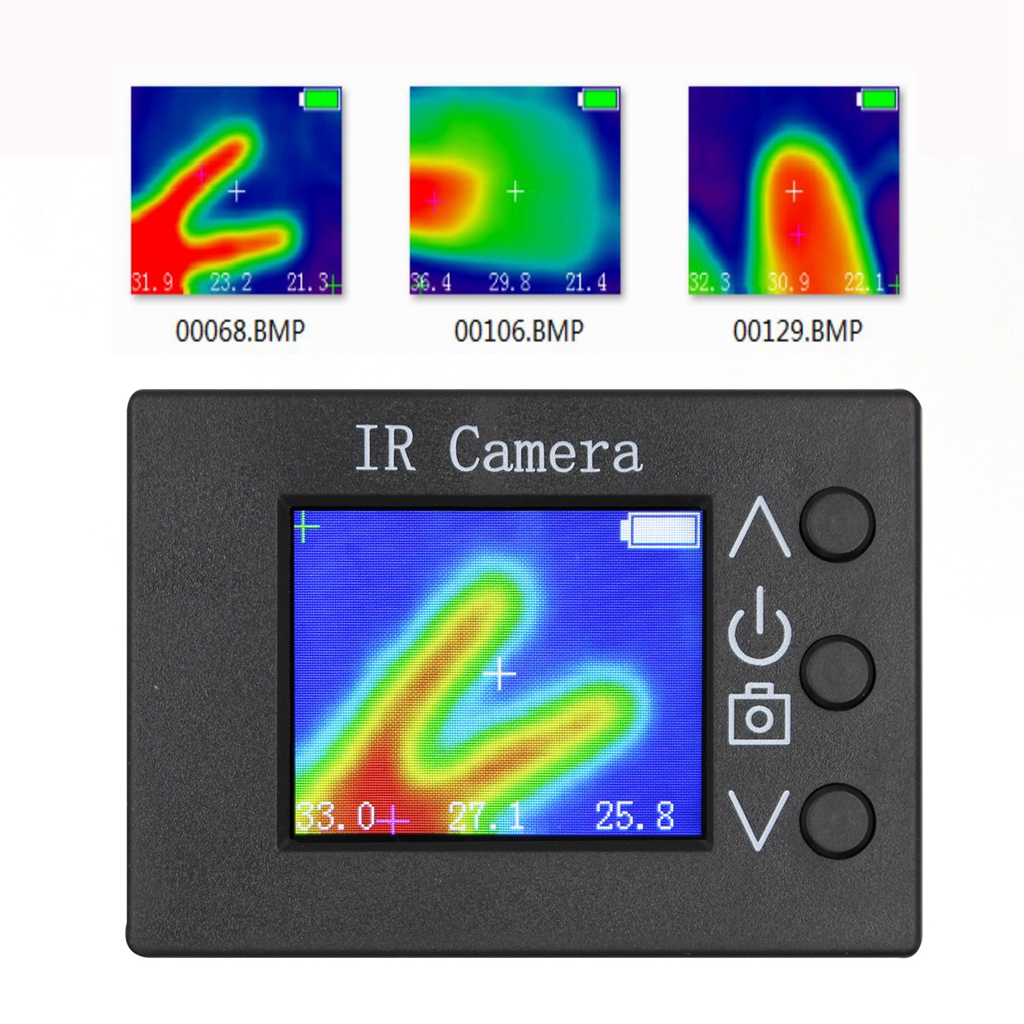

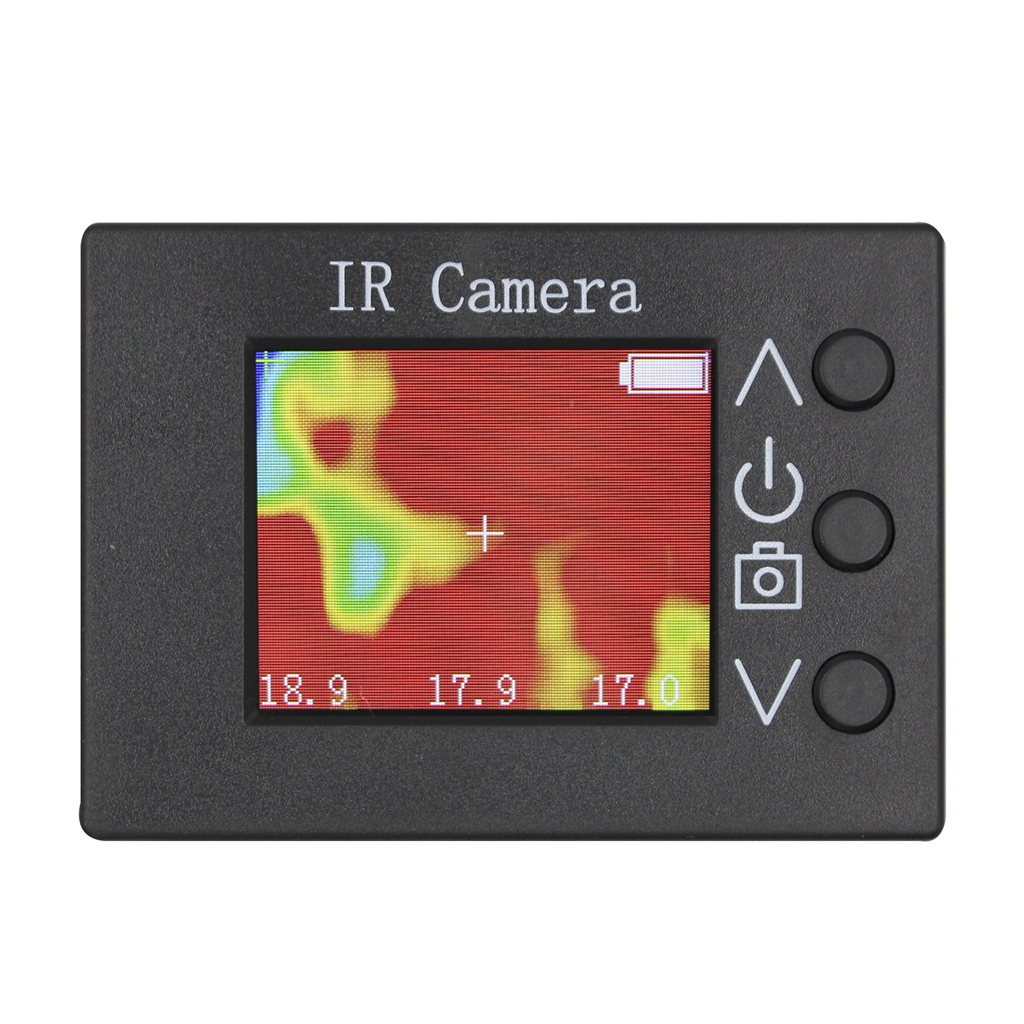

- Display center point, maximum and minimum temperature
- Take photos (can save 90 photos, can be connected to the computer, can be copied and deleted)
- Rechargeable battery (200mAh)
- TFT size: 1.8 inches (display resolution: 160 x 128)

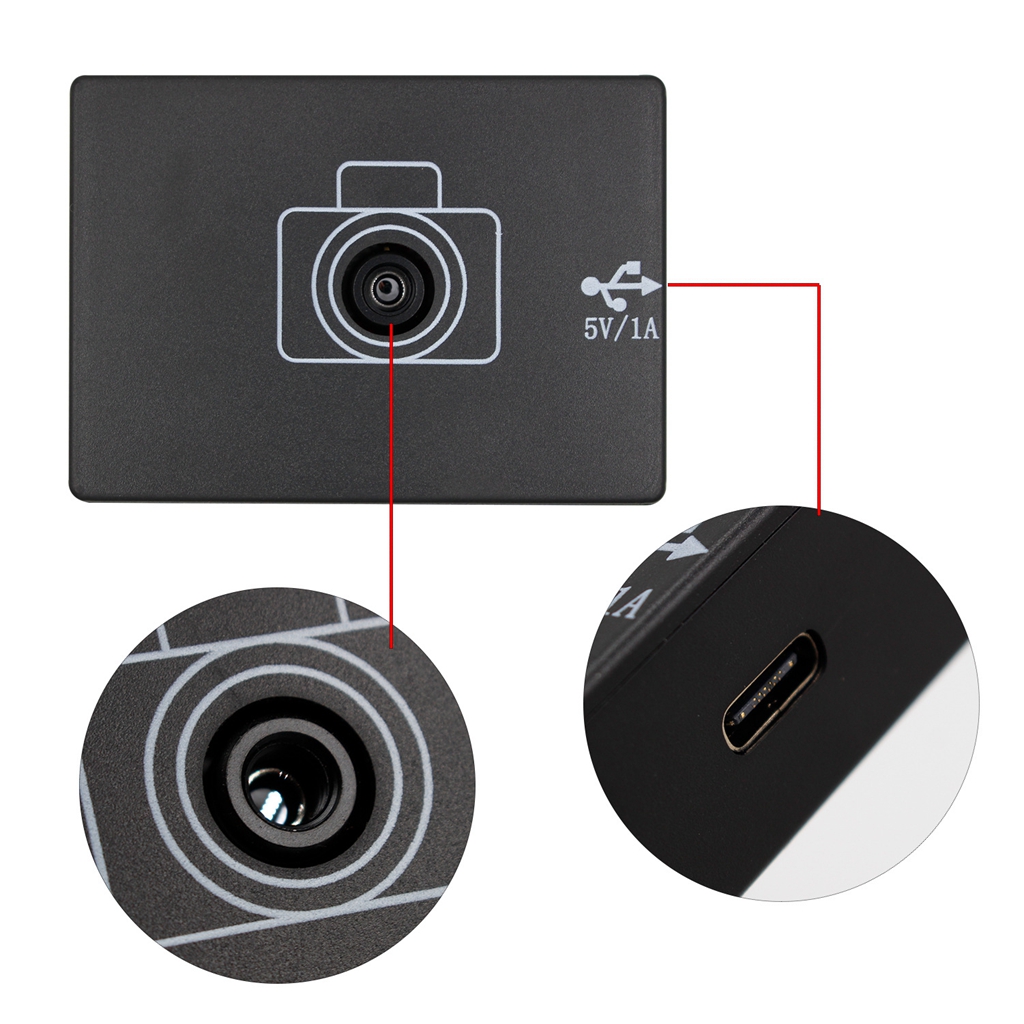

- Power port: USB Type-C 5V/1A
- Working hours: ≥4 hours

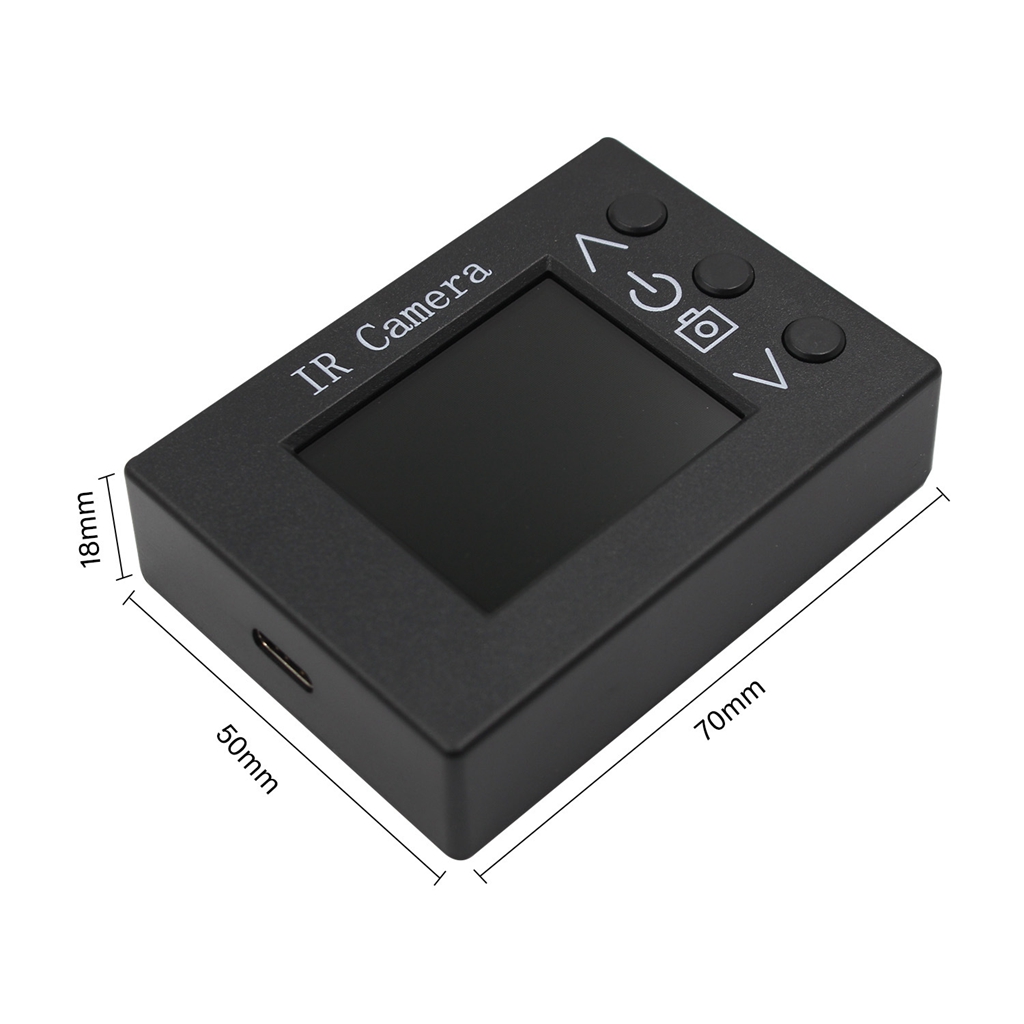

- Product size: 66 x 46 x 20mm

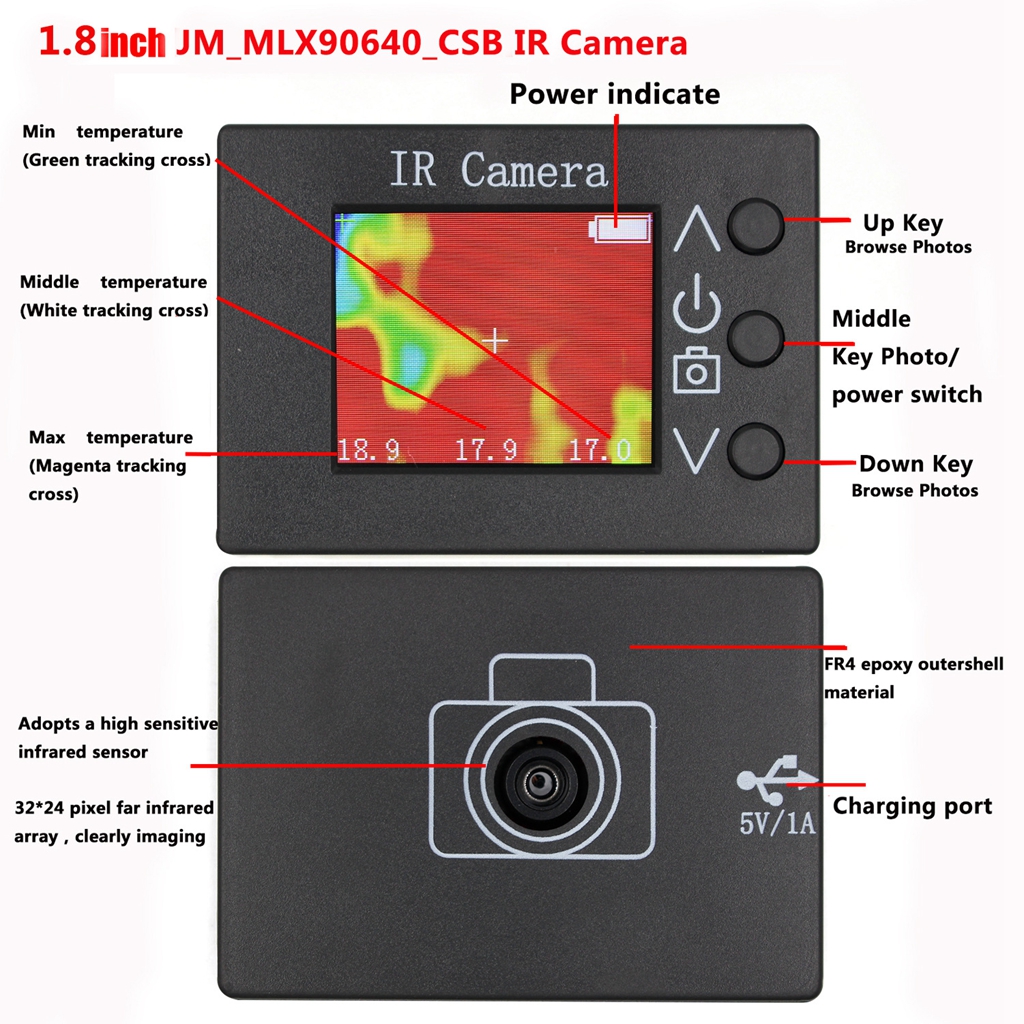

Operation:
- Charging: use USB Type-C cable, 5V/1A
- On/off: press the centre button for a long time
- Take photo: press the centre button
- Check photo: press the up/down button
- Exist photo: press the up/down button for a long time
- Copy photo: connect the computer with a USB cable, and the computer will receive a disk.
- Note: you cannot change the photos on the disk or put other files on the disk. Before connecting the computer, please fully charge it and shut down.

Application:
- High-precision non-contact temperature measurement
- Security and intrusion detection
- Temperature detection
- Intelligent building environment temperature measurement and control
- Car air conditioning control
- Microwave and oven temperature detection and control
- Temperature monitoring of industrial parts
- Visual temperature sensor
- Floor heating equipment side leakage and maintenance
- Thermal detection of circuit boards and components

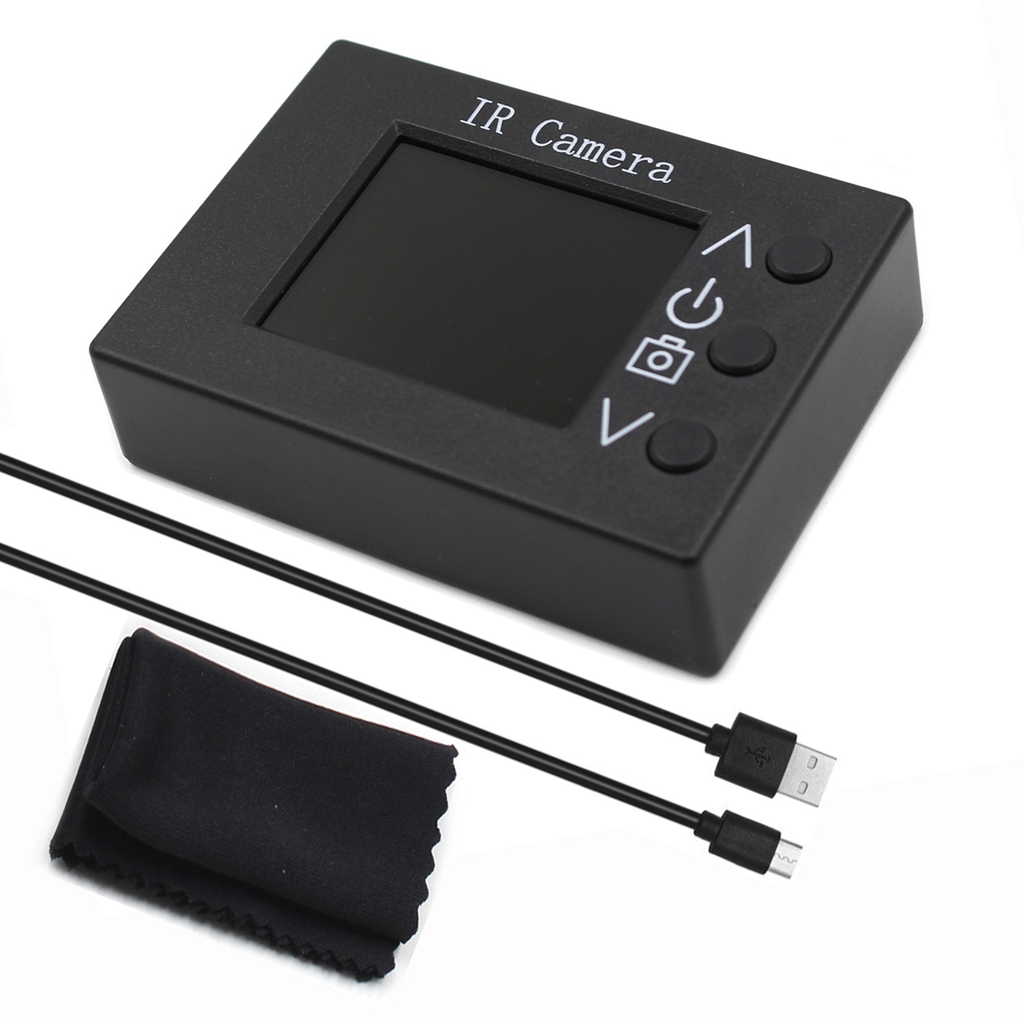

Package Included:
- 1 x IR Thermal Imager
- 1 x USB Cable
- 1 x Screen Cleaning Cloth
