MLX90640 Handheld Thermal Imager Thermal Imaging Camera DIY w/ 3.4" Screen for Electronics Repairs

MLX90640 Handheld Thermal Imager Thermal Imaging Camera DIY w/ 3.4" Screen for Electronics Repairs

Description:
This is a handheld and multifunctional thermal imager, featuring compact size and light weight. With a 3.4" TFT display screen, you can see data clearly. It can be used in a variety of situations and is an indispensable tool for household and industry use.

Features:
- Measurement range -40℃ to +300℃, and 8Hz dynamic refresh rate

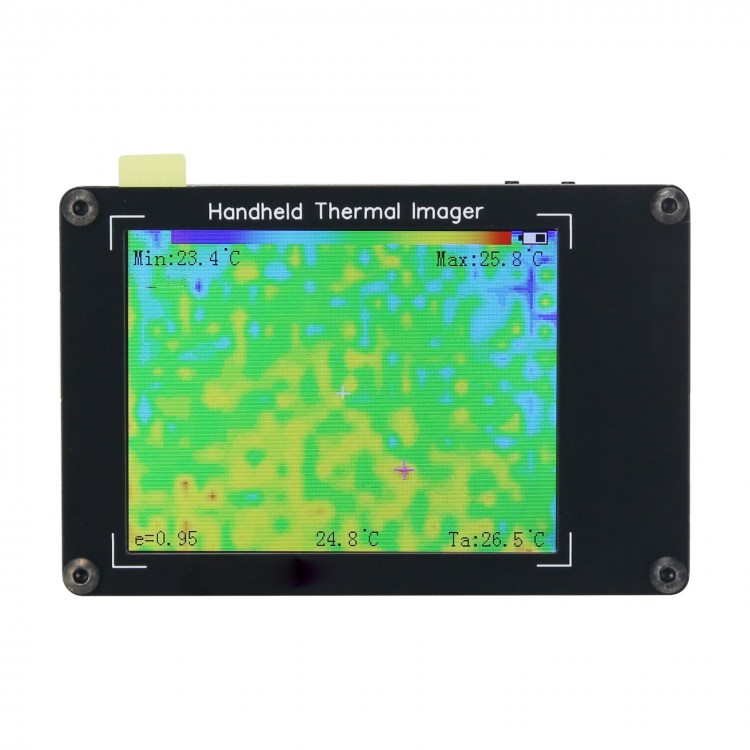

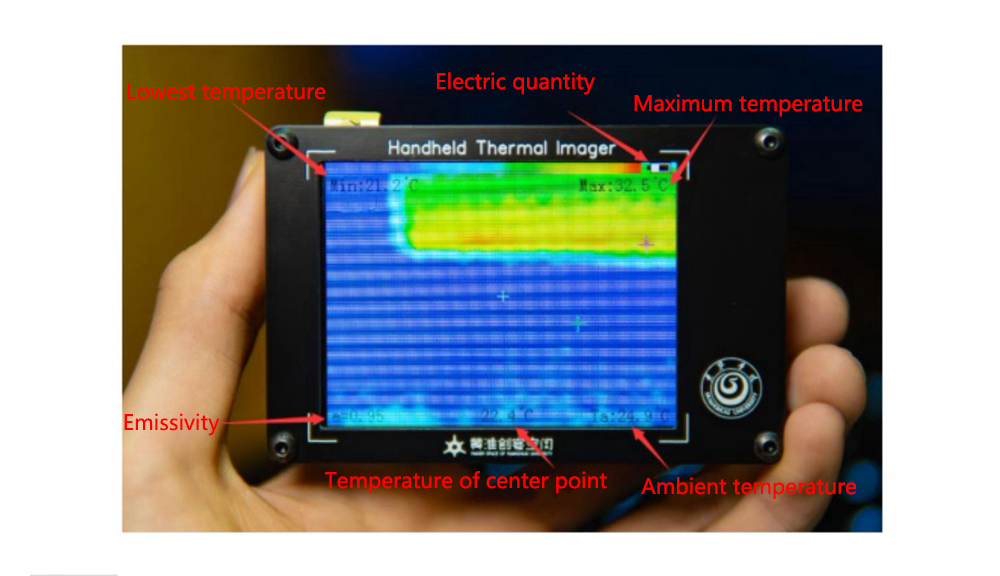

- The resolution of the 3.4" screen is 320*240; the screen can display and track the maximum temperature, the minimum temperature and the temperature of the center point

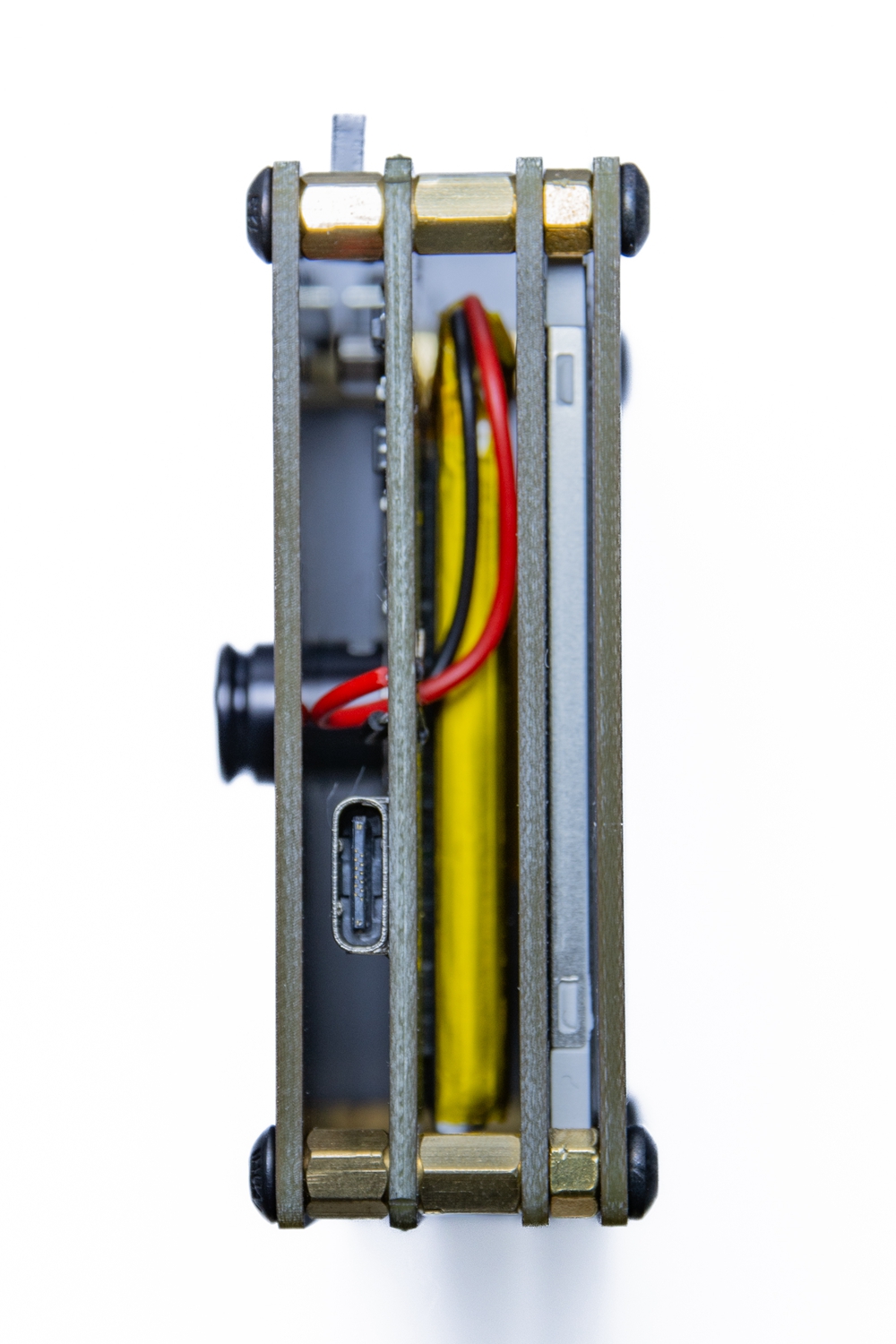

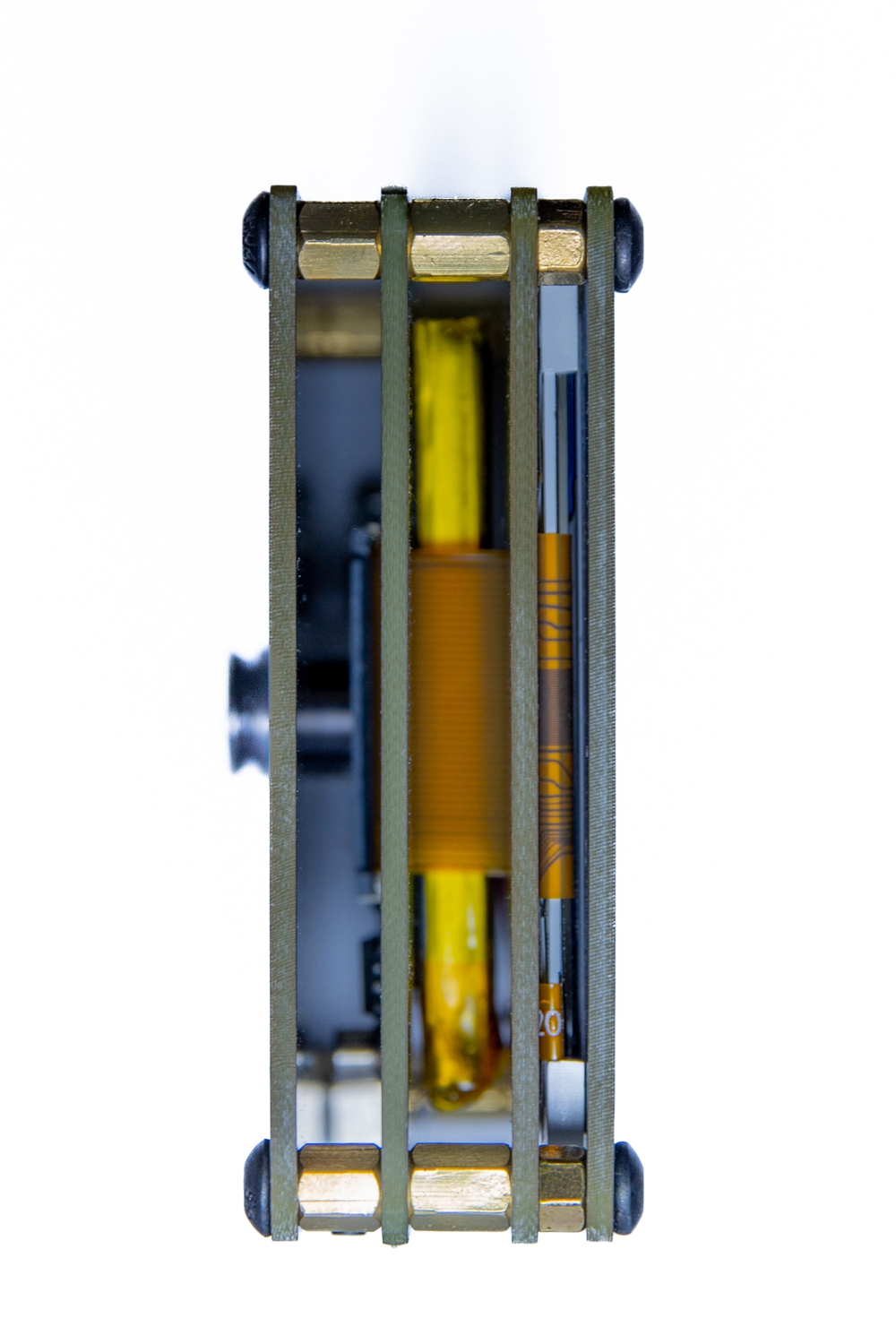

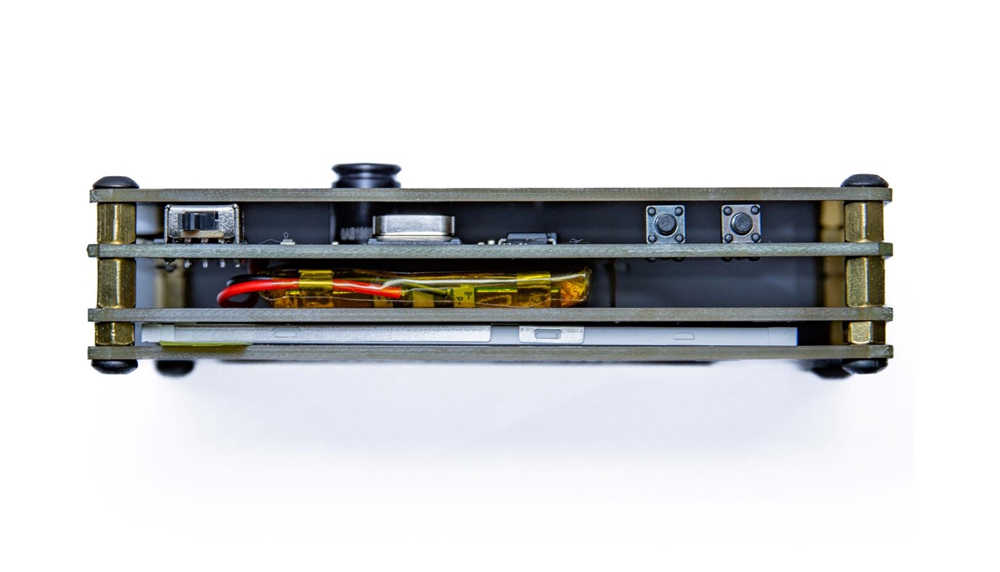

- Its shell uses FR4 epoxy sheet to better protect internal components and have a long service life
- Small size makes it easy to carry
- Lithium-ion battery-powered. USB-C charging; up to 10 hours of battery life. Can be used while charging
- Built-in SPI Flash chip can store 100 pictures. View and copy image files by connecting a computer or mobile phone with a data cable
- Integrated design and no external device is needed

Specifications:
- Materials: epoxy sheet + printed circuit board
- Infrared sensor: MLX90640ESF-BAB
- Hardware resolution: 32*24 pixel far infrared array
- Screen resolution: 320*240 pixels
- Temperature measurement range: -40℃ to 300℃
- Measurement accuracy: ±2℃
- Working temperature: 0℃ to 50℃
- Working humidity: ≤ 70%
- Refresh rate: 8Hz
- Field of view: horizontal 55° x 35° vertical
- Emissivity: 0.95
- Charging specification: USB Type-C5V/1A
- Product Dimensions: 95 x 62 x 20mm/3.7 x 2.4 x 0.8"
- Battery: 3.7V1500mAh lithium-ion battery
- Working time: ≥ 10 hours

Application:
- High-precision non-contact temperature measurement
- Security and intrusion detection
- Body temperature detection
- Intelligent ambient temperature measurement and control of buildings
- Car air conditioning control
- Microwave oven and oven temperature detection and control
- Temperature monitoring of industrial parts
- Visual temperature sensor
- Floor heating equipment side leakage and maintenance
- Thermal inspection of circuit boards and components

Package Included:
- 1 x Thermal Imager

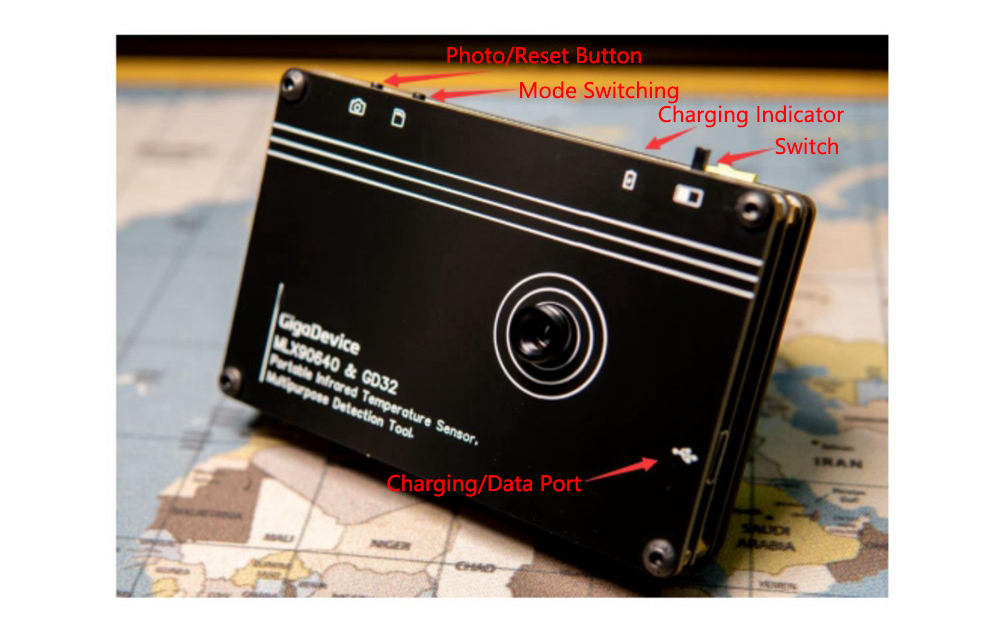

Functions:
- Taking pictures: In the power-on state, press the Photo/Reset button to save the current image.
- Viewing and copying images: Connect the imager to a computer with a USB-C data cable, press the Mode Switching button to switch to U disk mode to read or copy images.
- Reset: It can store 100 images. When it is full for storage, press and not release the Photo/Reset button until the screen flashes. After about 30 seconds, it will return to its original state.

Precautions:
- This device is powered by a 3.7V lithium battery. Before not using for a long time, it is recommended to keep the battery power display at about 50% to avoid overcharging and over-discharging to prolong the battery life.
