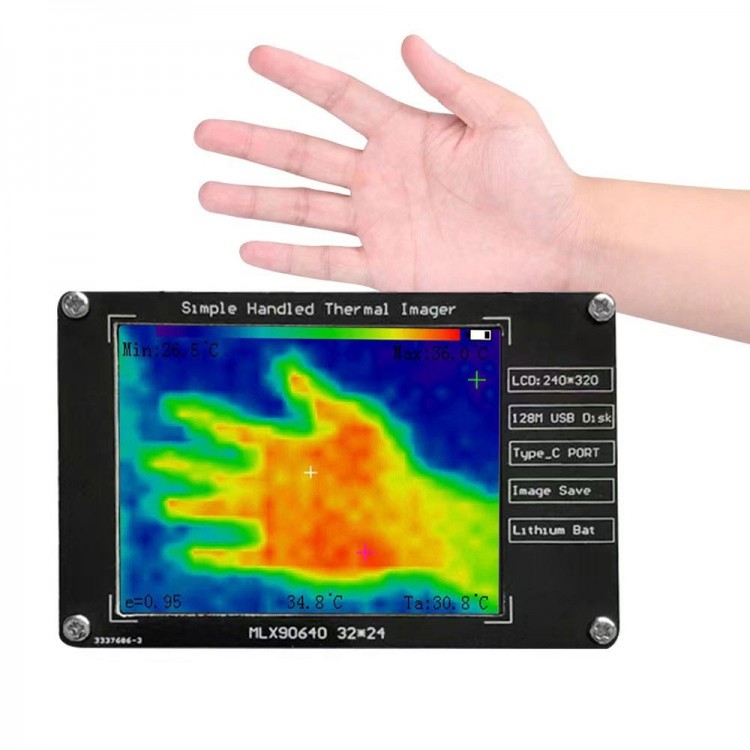

MLX90640 Simple Handheld Thermal Imager Version 2.8 Thermal Imaging Camera with 2.8" TFT Screen

MLX90640 Simple Handheld Thermal Imager Version 2.8 Thermal Imaging Camera with 2.8" TFT Screen

Description:
This is a handheld multifunction thermal imaging camera. It boasts small size and light weight. Its 2.8-inch TFT display makes data clear at a glance. It can be used in a variety of occasions and is an indispensable tool for domestic and industrial use.

Features:
- Measuring range -40°C to +300°C and 8Hz dynamic refresh rate
- The resolution of its 2.8" screen is 320*240. The screen displays and tracks the maximum, minimum, and center-point temperatures
- Its shell adopts FR4 epoxy sheet, which better protects internal components and has a long service life
- Small size and easy to carry
- Powered by lithium-ion battery. It can be charged via a USB type-c cable. It can last for 4 hours. It be used while charging
- With built-in SPI Flash chip, it can store 100 pictures. View and copy image files by connecting it to a computer or a phone via a data cable
- Due to its integrated design, no external equipment is required

Specifications:
- Material: epoxy board + printed circuit board
- Infrared sensor: MLX90640ESF-BAB
- Hardware resolution: 32*24 pixels far-infrared array
- Screen resolution: 320°240 pixels
- Temperature measurement range: -40°C to 300°C
- Measurement accuracy: ±2°C
- Operating temperature: 0 to 50°C
- Working humidity: ≦70%
- Refresh rate: 8Hz
- Field of view: horizontal 55° x vertical 35
- Emissivity: 0.95
- Charging specifications: USB Type-C 5V/1A
- Product size: 85 x 55 x 30mm/3.3 x 2.2 x 1.2"
- Battery: 3.7V 600mAh Li-ion battery
- Working time: ≥4 hours

Applications:
- High-precision non-contact temperature measurement
- Security and intrusion detection
- Temperature checks
- Intelligent building environment temperature measurement and control
- Car air conditioning control
- Temperature detection and control of microwave oven and oven
- Temperature monitoring of industrial parts
- Visual temperature sensor
- Side leakage and maintenance of under-floor heating equipment
- Thermal inspection of circuit boards and components

Package Included:
- 1 x Thermal Imaging Camera
- 1 x Cleaning Cloth
- 1 x USB Type-C Cable

Operation:
- Take photos: In the power on state, press its photo/reset button to save the current image.
- View or copy images: After connecting it to a computer with a USB type-c cable, press its mode switching button to switch to U disk mode to read or copy images.
- Reset: It can store 100 images.When the storage is full, press and not release the photo/reset button until the screen flashes. The device will restore the initial state after about 15 seconds.

Attention:
- This device is powered by a 3.7V lithium battery, and please keep the battery level display at about 50% when you are not going to use it for a long time.
