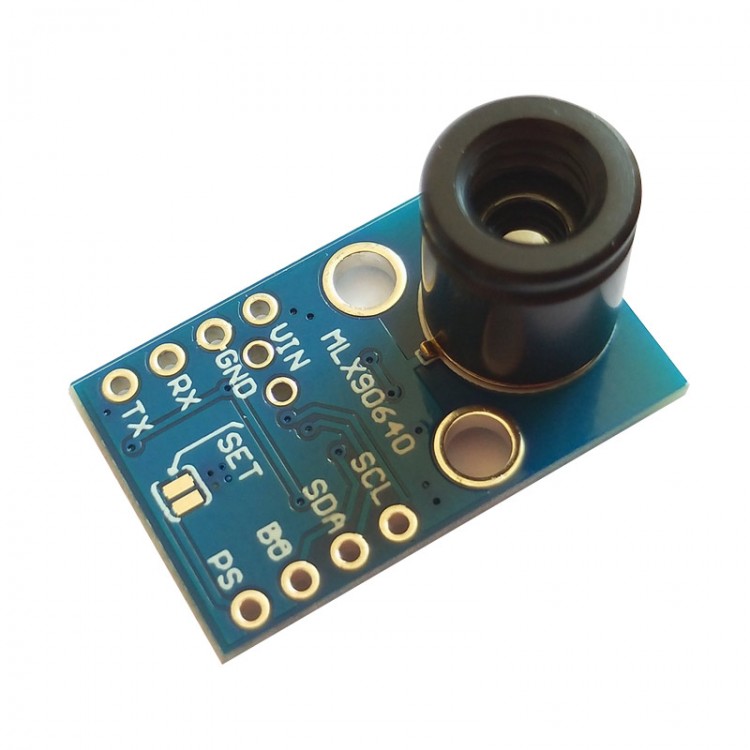

MLX90640BAB 32x24 IR Sensor Infrared Array Sensor Thermal Camera Module For Distant Measurement
Specifications:
- MLX90640BAB View Angle: 55 * 35° (Small angle makes it suitable for long-distance measurement)
- Environment Temperature: -40 to 85℃
- Target Temperature Range: -40 to 300℃
Features:

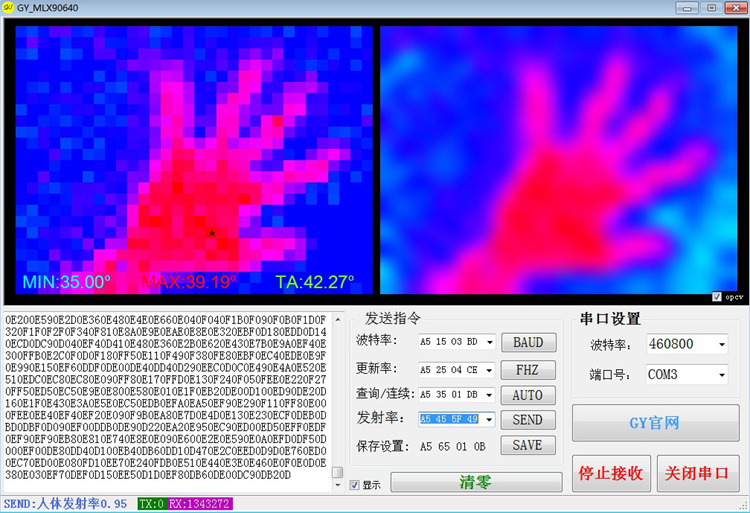

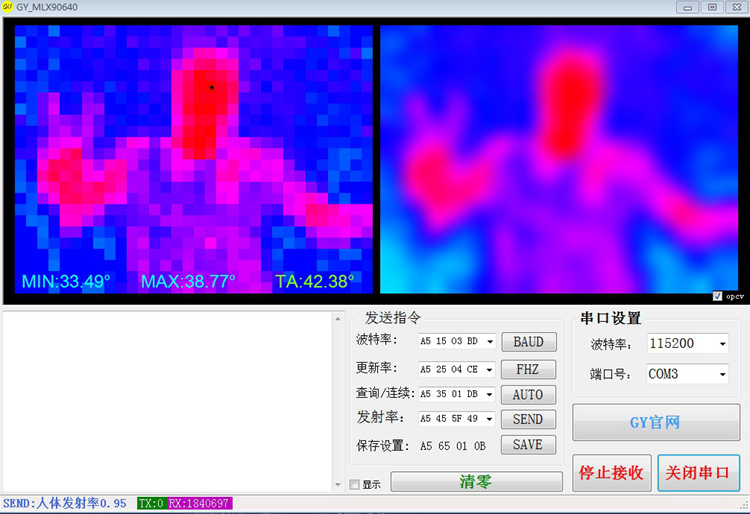

- Provide PC software to directly display temperature imaging graphics.
- With a single-chip microcomputer, the serial port directly outputs 768 temperature data, and USB to TTL directly to the computer to see the data.
- The original I2C interface of mlx90640 is retained, and the sensor chip (PS to GND) can be directly operated by an external MCU (PS connected to GND).
Package Included:
- 1 x Infrared Array Sensor
Note: Since the chip manufacturer allows the chip to have four or less dead pixels when it leaves the factory. Therefore, please make sure that you don’t mind before purchasing. It is recommended to take the average temperature of adjacent points while using.
