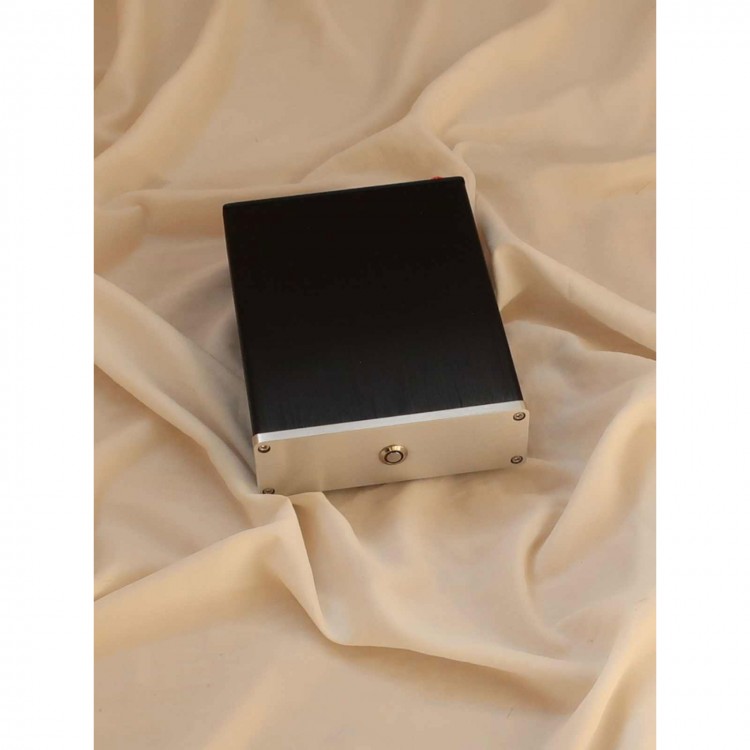

MM/MC Phono Amplifier Low Noise Vinyl Microphone Amplifier Class A Circuit Discrete Components
Features:
- Using fully discrete components to construct circuits facilitates fine tuning of various data parameters.
- It contains two types of cartridge amplifiers, MM and MC, which can adapt to the majority of users' vinyl record player types on the current market.
- The main amplifier circuit selects field-effect transistors (FETs) to reduce the sensitivity of components to temperature changes and improve distortion.
- Selecting pure Class A circuits to construct discrete component amplification circuits effectively reduces harmonic distortion and improves sound quality.
- The balance circuit of the turntable does not use the conventional feedback circuit of integrated IC circuit, but chooses the attenuation type, taking its natural tone characteristics.
Specification:
- Voltage gain (1kHz): 40dB for MM; 60dB for MC
- Distortion (1kHz, 500mV output): 0.8% for MM; 1.2% for MC
- SNR (1kHz, non-weighted): 82dB for MM; 72dB for MC
- Input impedance: 30kohms for MM; 220ohms for MC
- Frequency response: 20Hz - 20kHz ±2dB
- Product size: 130 x 190 x 42mm
- Gross weight: 1kg
- Applicable voltage: 110 - 220V
Precaution:
- If existing vinyl players feel that there is a lot of noise, do not rush to purchase this player. It is recommended to unplug the signal cable from the player to the player first. If the noise is significantly reduced, it indicates that the noise is from the player and signal cable. We should try to eliminate this type of noise first. At this time, purchasing any player cannot eliminate the noise from outside the player. If there is still a lot of noise after unplugging the signal cable, it indicates that the noise is from the phono amplifier, and it is necessary to purchase a playback device with lower noise. In addition, if the turntable has digital processing circuits such as USB ports, Bluetooth outputs, digital displays, or built-in phono amplifier, it may contain background noise, and it is not recommended to purchase this device.
Package Included:
- 1 x Phono Amplifier
- 1 x Power Adapter
