Mobile Radio Antenna High-Gain VHF UHF Antenna w/ Suction Cup Mount for Mobile Radio Transceiver
Features:
- VHF UHF antenna with total length of 96cm/37.8"

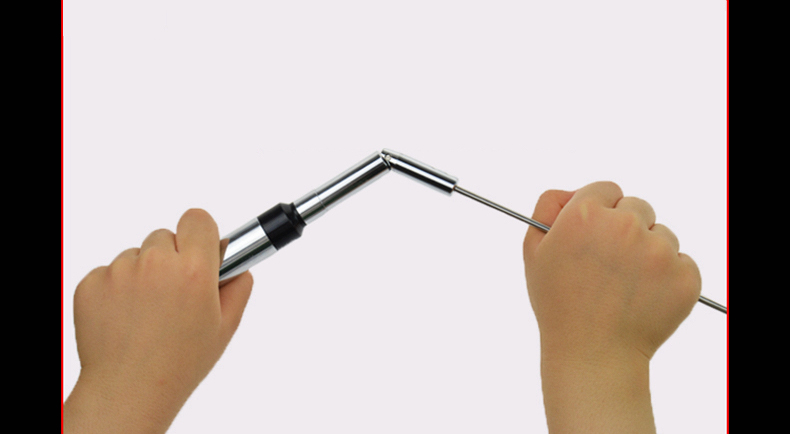

- Foldable antenna in 45 degrees
- The antenna with better gain and signal strength
- Stainless steel antenna last for a long time
- 5m/16.4ft feeder line featuring excellent waterproof performance

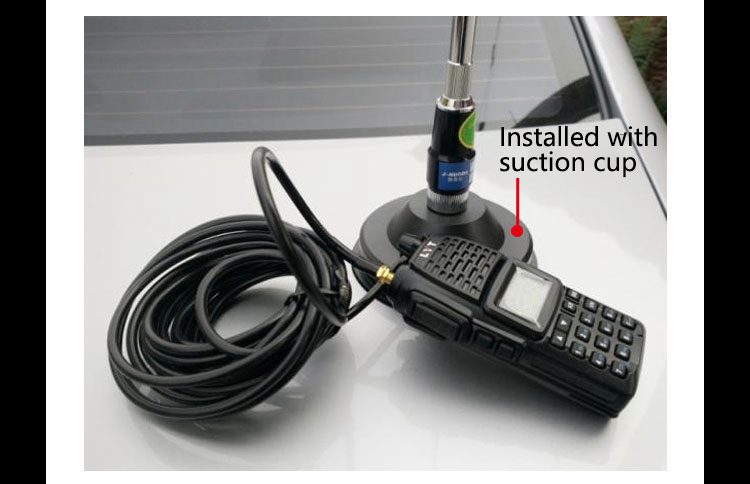

- Large suction cup in the diameter of 12cm/4.7"
- Durable feeder line made from metal
Specifications:
- Frequency range: VHF 136-174MHz and UHF 400-480MHz
- Input impedance: 50Ω
- Durability: 150W
- SWR: ≤1.5
- Gain: 3.0/5.5dBi
- Radiation direction: omnidirectional
- Antenna length: 96cm/37.8"
- Net weight: 145g/0.3lb
- Material: stainless steel
Package Included:

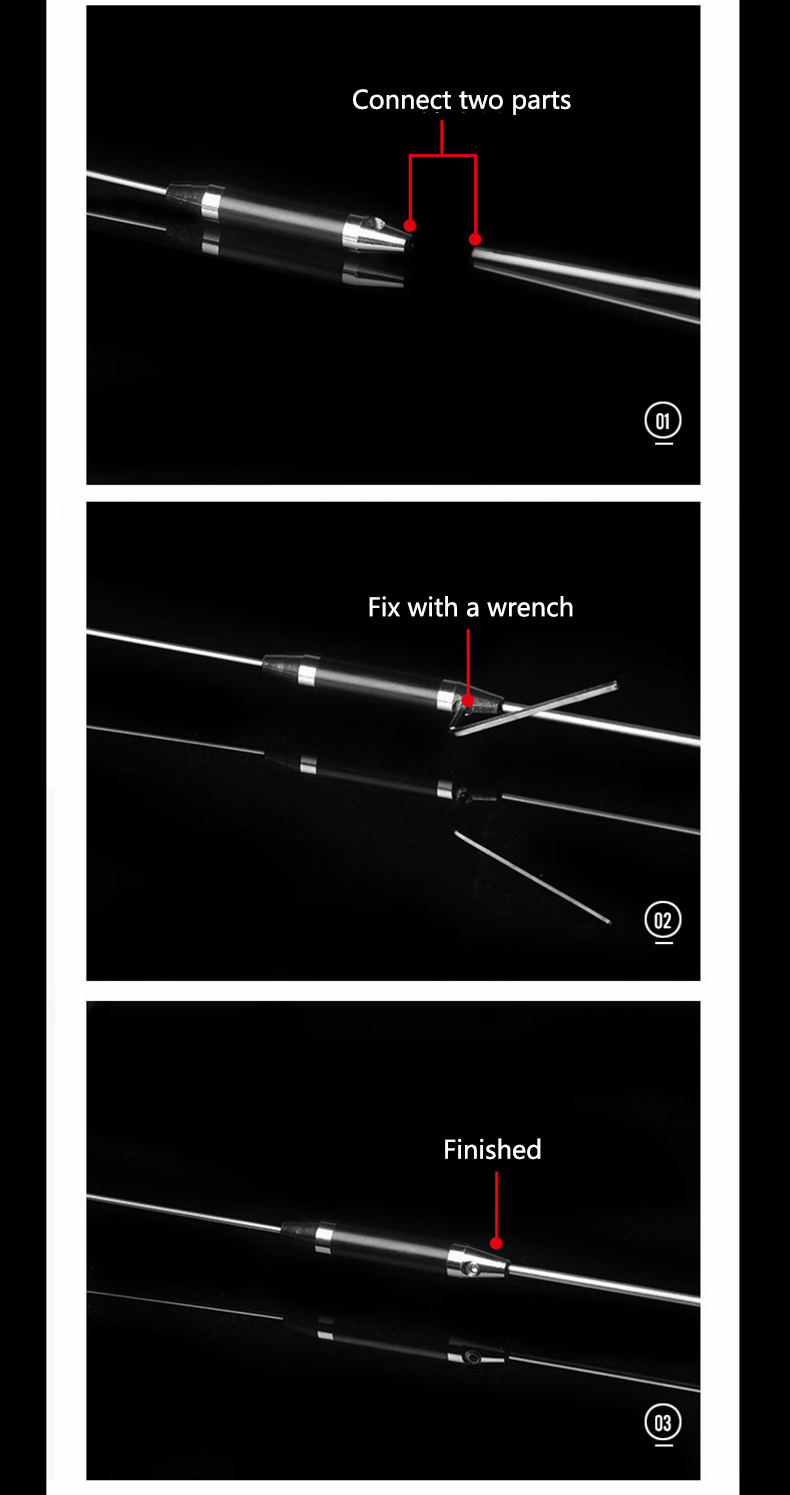

- 1 x VHF UHF Antenna (Two separate parts)
- 1 x Suction Cup with 5M/16.4FT Feeder Line

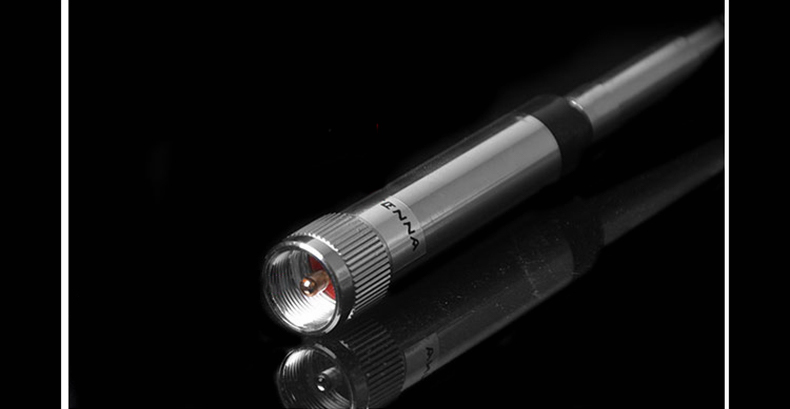

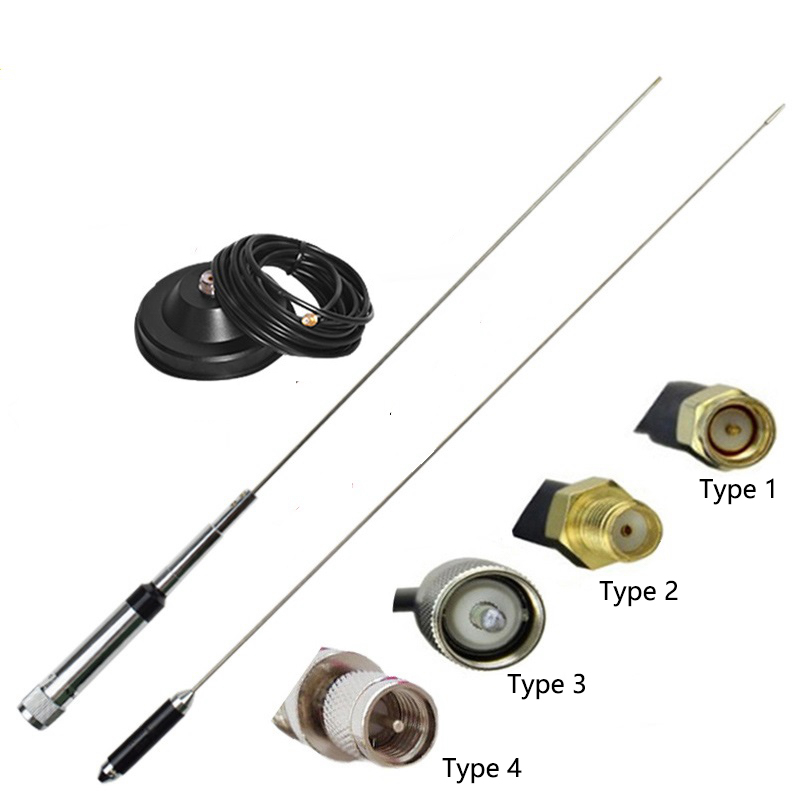

Available Connectors of Feeder Line:
- Type 1: For walkie talkies including LINTON 6100 and WOUXUN UV8D
- Type 2: For walkie talkies such as for Quansheng UV2, Baofeng 5R, and WOUXUN UVD1P
- Type 3 (default): For mobile radios such as for Kenwood 471 and 271
- Type 4: For Motorola
Note:
- The feeder line is with type 3 connector by default. If other connectors are needed, please leave a message when purchasing.
- Center frequency and feeder length can be customized. If the customization service is needed, please contact us to pay an extra fee. Thank you!
