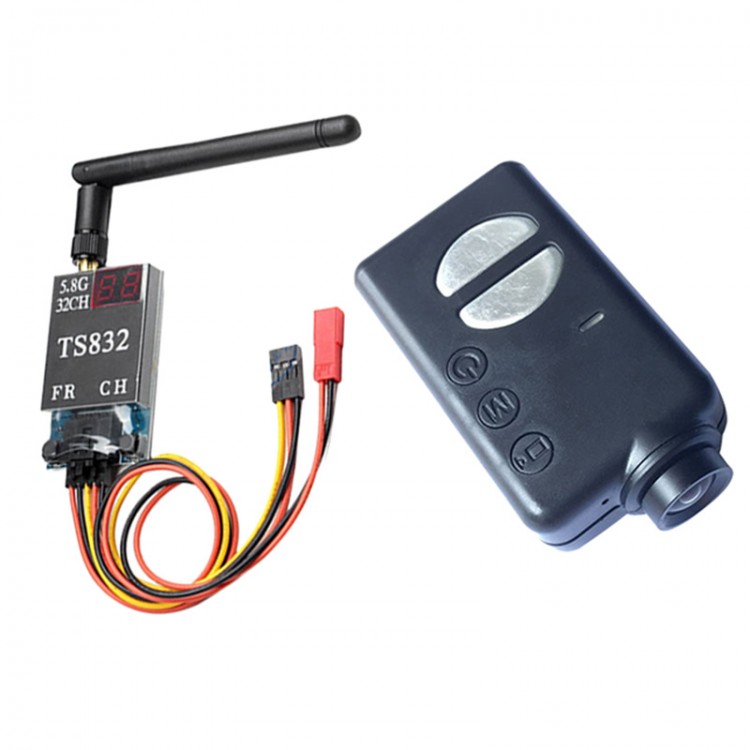

MOBIUS Actioncam 808#16 V2 Upgrade FPV HD 1080P Camera w/ TS832 AV Transmitter Tx for FPV Multicopter
Mobius Actioncam 808#16 V2
Features:
- Latest firmware version: 1.20
- Latest parameter adjust software version: 2.0.3.5
- Wide angle lens: 120degree, diagonal 135degree
- Input voltage: 3.7~5V(Never over 5V, it may break the camera)
TS832 Tranasmitter
Features:
- 32 channels: Cover A, B, E bands and F band (Airwave band), 4 bands and all frequencies compactable;
- Two switching buttons: CH button for frequencies channels switching, FR button for frequencies bands switching;
- Two digits display: one for CH and the other for FR, real-time positioning which frequency band and which channel received;
- Power off memory: Replay the very last frequency band and channel
- Independent video and audio signal outputs
Specifications:
- Video format supported: NTSC/PAL
- Antenna connection: RP-SMA, jack (module side ) See connector type diagram
- Power input: 7.4-16V (3S Lipo suggested)
- Transmitting power: 600mA
- Antenna gain: 2db
- Working current: 220mA at 12V
- Video bandwidth: 8M
- Audio bandwidth : 6.5M
- Weight: 22g
- Dimension: 54x 32x 10mm(excluding antenna)
*Note: TX antenna must be installed properly before it is switched on, power on without install antenna, or a improper antenna was used may easily burn the TX.
Package Included:
- MOBIUS Actioncam 808#16 V2 Wide angle camera
- 1 x transmitting unit (TX)
- 1 x antenna (2db)
- 1 x basic wires set
