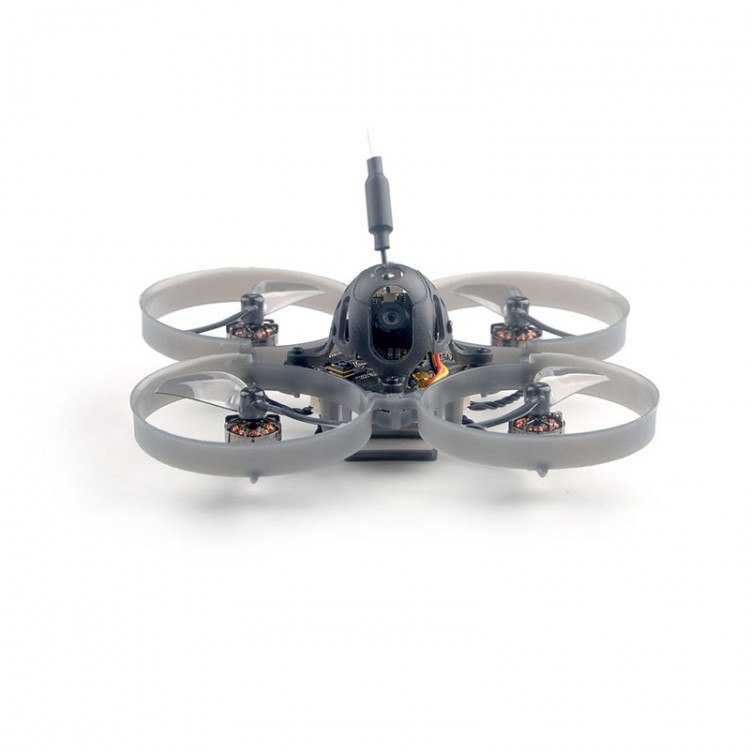

Mobula7 75MM/3" 1S Whoop Drone Indoor FPV Drone 400MW VTX PNP Version without Onboard Receiver

Mobula7 75MM/3" 1S Whoop Drone Indoor FPV Drone 400MW VTX PNP Version without Onboard Receiver

Description:
With this whoop drone, you can get incredible RX and VTX distances. Its new RS0802 motors adopt a new unibell design. It uses a 1.5mm shaft and includes a PCB backplane, which is more efficient and more reliable. The power of its new onboard VTX for OpenVTX is up to 400mw, providing RCE and PIT modes, which is very useful for events.

Features:
- X12 5-IN-1 AIO flight controller
- VTX power up to 400mw
- NEW RS0802 KV20000 motors
- Runcam Nano3 lightest 1/3 800TVL camera for CMOS
- Smooth and powerful
- Compatible with 1S Lipo/LIHV

Product Specifications:
- Brand Name: Happymodel
- Item Name: Mobula7 1S 75mm Micro FPV whoop drone
- Wheelbase: 75mm/3"
- Size: 99 x 99 x 40mm/3.9 x 3.9 x 1.6"
- Weight: 24g/0.05lb

Package Included:
- Mobula7 1S 75mm whoop drone frame (Mobula7 v4 frame) x 1
- X12 PNP V1.0 flight controller without onboard receiver x 1
- RS0802 KV20000 brushless motor x 4
- Gemfan 1610-2 bi-blade propellers (4cw+4ccw) x 1
- Runcam Nano3 1/3 800TVL camera for CMOS x 1
- Onboard 5.8G 0mw~400mw for Openvtx VTX x 1
- 1S parallel charging board x 1
- Propeller removal tool x 1
- Extra camera hood x 1

Spare Parts Specifications:
Motor:
- Mode: RS0802 KV20000
- Configuration: 9N12P
- Stator Diameter: 8mm
- Stator Length: 2mm
- Shaft Diameter: 1.5mm
- Motor Dimension (Dia.*Len): 10.5mm*13.5mm
- Weight: 2.0g
- No.of Cells(Lipo): 1S only (not included)

Propellers:
- Weight: 0.24g
- Material: PC
- Pitch: 1 inch
- Props Diameter: 40mm
- Center Thickness: 5mm
- Center Hole Diameter: 1.5mm

Flight Controller:
- X12 PNP V1.0 flight control without airborne receiver target: CRAZYBEEF4DX
- MCU: STM32F411CEU6 (100MHZ, 512K FLASH)
- Sensor: MPU6000 or ICM20689 (SPI connection)
- Mount hole size: 25.5mm*25.5mm
- Power supply: 1S battery input (DC 2.9V-4.35V) (not included)
- Built-in 12A (each) Blheli_S 4in1 ESC
- Built-in Betaflight OSD (SPI Control)
- Built-in 5.8G 0mw~400mw VTX for OpenVTX
- For built-in ExpressLRS 2.4G, Frsky D8/D16, and Flysky AFHDS 2A
- Built-in voltage detection
- Built-in current sensor

Onboard 4in1 ESC:
- Power supply: 1S LiPo/LiPo HV (not included)
- Current: 12A continuous; peak 15A (3 seconds)
- Programmable
- Factory firmware: Z_H_30_REV16_7.HEX
- Default protocol: for DSHOT300
- Support firmware for Bluejay

PNP Version:
- (without onboard receiver) full UART1 for external receiver
- For CRSF/GHOST/SBUS/IBUS/DSMX protocol
- IR1 pad for SBUS input (invert RX1)

Onboard 5.8G for OPENVTX:
- Firmware version: for OPENVTX
- For Smartaudio v2.1
- Support PIT mode
- Support for Raceband
- Channels: 48ch
- Transmitting Power: 0/RCE/25mw/100mw/400mw
- Power supply: DC 5V
- Current (5v): < 650ma (400mw)

Runcam Nano3:
- Model: RunCam Nano 3
- Image Sensor: 1/3" for CMOS
- Horizontal resolution: 800TVL
- Lens: 2.1mm (M8) FOV 150°
- Signal system: NTSC
- Signal-to-noise ratio: > 50dB
- Electronic shutter speed: Automatic
- Automatic gain control (AGC): Automatic
- Illumination: 0.01Lux at 1.2F
- D-WDR: Automatic
- Day/Night: Color
- Power supply: DC 3-5.5V
- Current: 110mA at 5V; 120mA at 3.3V
- Shell material: ABS
- Net weight: 1.2g
- Size: 14mm*14mm*9mm (LxWxH)

Note:
- Batteries are not included. 1S 450mah/550mah/650mah batteries are recommended.
