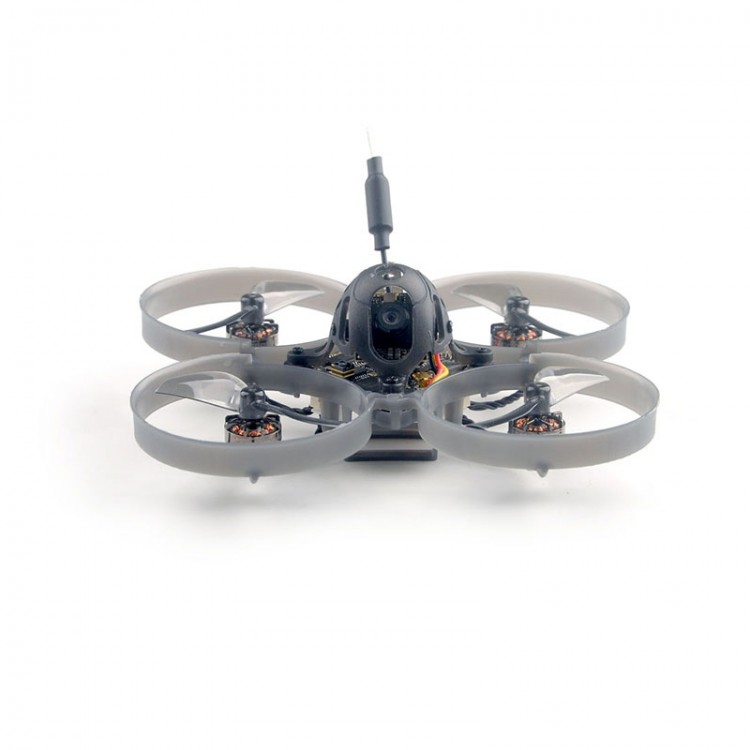

Mobula7 75MM/3" 1S Whoop Drone Indoor FPV Drone 400MW VTX w/ Integrated Receiver for Frsky D8/D16

Mobula7 75MM/3" 1S Whoop Drone Indoor FPV Drone 400MW VTX w/ Integrated Receiver for Frsky D8/D16

Description:
With this whoop drone, you can get incredible RX and VTX distances. Its new RS0802 motors adopt a new unibell design. It uses a 1.5mm shaft and includes a PCB backplane, which is more efficient and more reliable. The power of its new onboard VTX for OpenVTX is up to 400mw, providing RCE and PIT modes, which is very useful for events.

Features:
- X12 5-IN-1 AIO flight controller
- VTX power up to 400mw
- NEW RS0802 KV20000 motors
- Runcam Nano3 lightest 1/3 800TVL camera for CMOS
- Smooth and powerful
- Compatible with 1S Lipo/LIHV

Product Specifications:
- Brand Name: Happymodel
- Item Name: Mobula7 1S 75mm Micro FPV whoop drone
- Wheelbase: 75mm/3"
- Size: 99 x 99 x 40mm/3.9 x 3.9 x 1.6"
- Weight: 24g/0.05lb

Package Included:
- Mobula7 1S 75mm whoop drone frame (Mobula7 v4 frame) x 1
- X12 flight controller for Frsky V1.0 (with built-in SPI 2.4G receiver for Frsky) x 1
- RS0802 KV20000 brushless motor x 4
- Gemfan 1610-2 bi-blade propellers (4cw+4ccw) x 1
- Runcam Nano3 1/3 800TVL camera for CMOS x 1
- Onboard 5.8G 0mw~400mw for Openvtx VTX x 1
- 1S parallel charging board x 1
- Propeller removal tool x 1
- Extra camera hood x 1

Spare Parts Specifications:
Motor:
- Mode: RS0802 KV20000
- Configuration: 9N12P
- Stator Diameter: 8mm
- Stator Length: 2mm
- Shaft Diameter: 1.5mm
- Motor Dimension (Dia.*Len): 10.5mm*13.5mm
- Weight: 2.0g
- No.of Cells(Lipo): 1S only (not included)

Propellers:
- Weight: 0.24g
- Material: PC
- Pitch: 1 inch
- Props Diameter: 40mm
- Center Thickness: 5mm
- Center Hole Diameter: 1.5mm

Flight Controller:
- X12 flight control for Frsky V1.0 with built-in SPI 2.4G receiver target for Frsky: CRAZYBEEF4FR
- MCU: STM32F411CEU6 (100MHZ, 512K FLASH)
- Sensor: MPU6000 or ICM20689 (SPI connection)
- Mount hole size: 25.5mm*25.5mm
- Power supply: 1S battery input (DC 2.9V-4.35V) (not included)
- Built-in 12A (each) Blheli_S 4in1 ESC
- Built-in Betaflight OSD (SPI Control)
- Built-in 5.8G 0mw~400mw VTX for OpenVTX
- For built-in ExpressLRS 2.4G, Frsky D8/D16, and Flysky AFHDS 2A
- Built-in voltage detection
- Built-in current sensor

Onboard 4in1 ESC:
- Power supply: 1S LiPo/LiPo HV (not included)
- Current: 12A continuous; peak 15A (3 seconds)
- Programmable
- Factory firmware: Z_H_30_REV16_7.HEX
- Default protocol: for DSHOT300
- Support firmware for Bluejay

Onboard SPI receiver for Frsky D8/D16:
- SPI BUS receiver for Frsky D8
- Compatible with non-EU transmitter D8 models
- Channels: 8ch
- No ground interference (Transmitter and receiver 1m/3.3ft from the ground): 200m/656.2ft
- Fail-safe support

Onboard 5.8G for OPENVTX:
- Firmware version: for OPENVTX
- For Smartaudio v2.1
- Support PIT mode
- Support for Raceband
- Channels: 48ch
- Transmitting Power: 0/RCE/25mw/100mw/400mw
- Power supply: DC 5V
- Current (5v): < 650ma (400mw)

Runcam Nano3:
- Model: RunCam Nano 3
- Image Sensor: 1/3" for CMOS
- Horizontal resolution: 800TVL
- Lens: 2.1mm (M8) FOV 150°
- Signal system: NTSC
- Signal-to-noise ratio: > 50dB
- Electronic shutter speed: Automatic
- Automatic gain control (AGC): Automatic
- Illumination: 0.01Lux at 1.2F
- D-WDR: Automatic
- Day/Night: Color
- Power supply: DC 3-5.5V
- Current: 110mA at 5V; 120mA at 3.3V
- Shell material: ABS
- Net weight: 1.2g
- Size: 14mm*14mm*9mm (LxWxH)

Note:
- Batteries are not included. 1S 450mah/550mah/650mah batteries are recommended.
