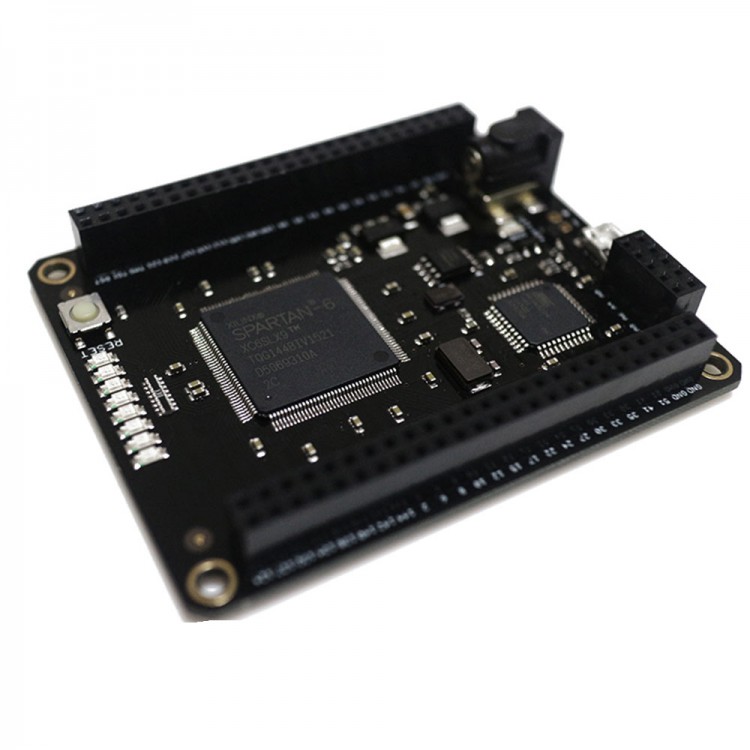

Mojo v3 FPGA Development Board Spartan 6 XC6SLX9 TONYLABS
Description:
- This is a FPGA development board that is designed to be easy to use. It features a Spartan 6 XC6SLX9 FPGA, onboard voltage regulators, and an onboard microcontroller to configure the FPGA. The onboard microcontroller is the same IC used on the Arduino Pro Micro, and the Arduino Leonardo. The Mojo V3 also features 8 onboard surface mount leds with a reset button, 84 digital IO pins, with 8 analog inputs.
- The Mojo v3 FPGA uses the logic optimized Spartan 6 Lx9 and the high performance ATmega32U4. Needless to say this board has no shortage of processing power. The ATmega32U4 comes with a USB (DFU) bootloader which will allow you to install future upgrades to the firmware without having to buy a programmer. Once the board is powered on, the ATmega configures the FPGA from the flash memory. After the FPGA is successfully configured the ATmega enters slave mode. This allows your FPGA designs to talk to the microcontroller; giving you access to the serial port and the analog inputs.
Features:
- Spartan 6 XC6SLX9 FPGA
- 84 digital IO pins
- 8 analog inputs
- 8 general purpose LEDs
- 1 LED to show when the FPGA is correctly configured
- On board voltage regulation that can handle 4.8-12V
- ATmega32U4 used for configuring the FPGA, USB communications, and reading the analog pins
- On board flash memory to store the FPGA configuration file.
